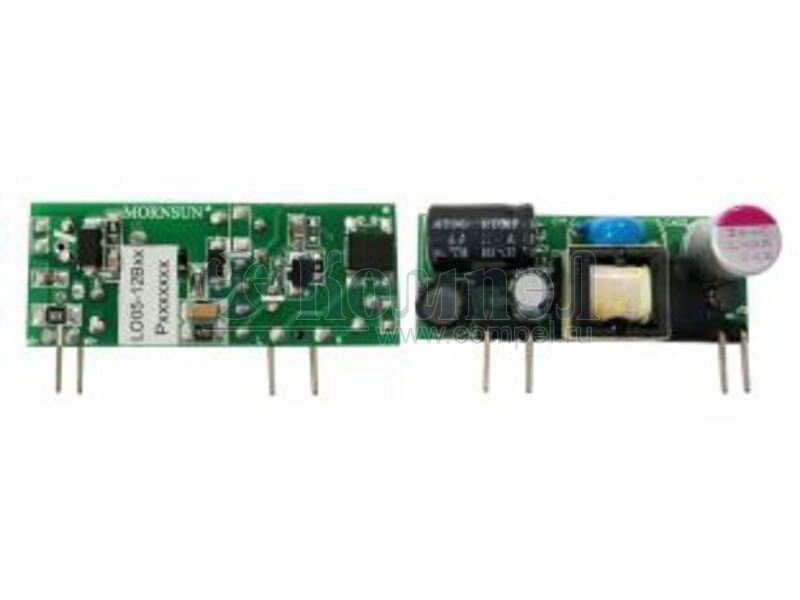

Серия AC-DC сетевых преобразователей LO05-12B

Mornsun

Общие характеристики

 Раздел AC-DC сетевые преобразователи
Выходная мощность (ном)
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Применение
Размер 42×16×17 мм
Рабочая температура

Документация на серию LO05-12B

AC/DC Converter LO05-12Bxx Series FEATURES 5W, AC-DC converter        RoHS 165 - 264V Universal AC or wide 230 - 370V DC Input Operating ambient temperature range: -25℃ to +70℃ High I/O isolation test voltage of up to 3000VAC Regulated output, low ripple & noise Output short circuit, over-current protection High efficiency, high reliability 2 years warranty LO05-12Bxx series is one of Mornsun’s compact size power converter. It features universal AC input and at the same time accepts DC input voltage, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets UL/EN/IEC62368 standards. The converters are widely used in industrial, office and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet. Selection Guide Part No. Output Power Nominal Output Voltage and Current (Vo/Io) Efficiency at 230VAC (%) Typ. Capacitive Load (µF) Max. LO05-12B03 3.3W 3.3V/1000mA 66 4000 LO05-12B05 5V/1000mA 73 3400 LO05-12B09 9V/550mA 75 1200 LO05-12B12 12V/420mA 77 1000 LO05-12B15 5W 15V/330mA 77 680 LO05-12B24 24V/210mA 79 270 Input Specifications Item Input Voltage Range Operating Conditions Min. Typ. Max. Unit AC input 165 -- 264 VAC DC input 230 -- 370 VDC 47 -- 60 Hz 165VAC -- -- 125 230VAC -- -- 80 165VAC -- 13 -- 230VAC -- 15 -- Input Frequency Input Current Inrush Current Leakage Current 240VAC/50Hz mA A 0.25mA RMS typ. Recommended External Input Fuse 1A/250V slow-blow required Hot Plug Unavailable Output Specifications Item Min. Typ. Max. 3.3V output -- ±6 -- Other output -- ±5 -- 3.3V output -- ±2.5 -- -- ±1.5 -- -- ±3 -- -- 50 150 mV Stand-by Power Consumption -- -- 0.5 W Temperature Coefficient -- ±0.02 -- %/°C Output Voltage Accuracy Line Regulation Load Regulation Ripple & Noise* Short Circuit Protection Operating Conditions Other output Full load 10%-100% Load (Load balancing) 20MHz bandwidth (peak-to-peak value) % Hiccup, continuous, self-recovery ≥130%Io, self-recovery Over-current Protection Minimum Load Unit 10 -- 2019.10.15-A/2 -- % Page 1 of 4 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на LO05-12B24

LO05-12Bxx Keywords:

Дата модификации: 22.12.2021

Размер: 530.7 Кб

4 стр.

AC/DC Converter LO05-12Bxx Series FEATURES 5W, AC-DC converter        RoHS 165 - 264V Universal AC or wide 230 - 370V DC Input Operating ambient temperature range: -25℃ to +70℃ High I/O isolation test voltage of up to 3000VAC Regulated output, low ripple & noise Output short circuit, over-current protection High efficiency, high reliability 2 years warranty LO05-12Bxx series is one of Mornsun’s compact size power converter. It features universal AC input and at the same time accepts DC input voltage, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets UL/EN/IEC62368 standards. The converters are widely used in industrial, office and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet. Selection Guide Part No. Output Power Nominal Output Voltage and Current (Vo/Io) Efficiency at 230VAC (%) Typ. Capacitive Load (µF) Max. LO05-12B03 3.3W 3.3V/1000mA 66 4000 LO05-12B05 5V/1000mA 73 3400 LO05-12B09 9V/550mA 75 1200 LO05-12B12 12V/420mA 77 1000 LO05-12B15 5W 15V/330mA 77 680 LO05-12B24 24V/210mA 79 270 Input Specifications Item Input Voltage Range Operating Conditions Min. Typ. Max. Unit AC input 165 -- 264 VAC DC input 230 -- 370 VDC 47 -- 60 Hz 165VAC -- -- 125 230VAC -- -- 80 165VAC -- 13 -- 230VAC -- 15 -- Input Frequency Input Current Inrush Current Leakage Current 240VAC/50Hz mA A 0.25mA RMS typ. Recommended External Input Fuse 1A/250V slow-blow required Hot Plug Unavailable Output Specifications Item Min. Typ. Max. 3.3V output -- ±6 -- Other output -- ±5 -- 3.3V output -- ±2.5 -- -- ±1.5 -- -- ±3 -- -- 50 150 mV Stand-by Power Consumption -- -- 0.5 W Temperature Coefficient -- ±0.02 -- %/°C Output Voltage Accuracy Line Regulation Load Regulation Ripple & Noise* Short Circuit Protection Operating Conditions Other output Full load 10%-100% Load (Load balancing) 20MHz bandwidth (peak-to-peak value) % Hiccup, continuous, self-recovery ≥130%Io, self-recovery Over-current Protection Minimum Load Unit 10 -- 2019.10.15-A/2 -- % Page 1 of 4 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на серию LO05-12B

Subject:

Дата модификации: 29.09.2019

Размер: 530.7 Кб

4 стр.

    Товары серии LO05-12B

    Наименование i Упаковка Выход U1 I1 КПД
    LO05-12B05 (MORNSUN)

    		1 шт
    LO05-12B12 (MORNSUN)

    		1 шт
    LO05-12B15 (MORNSUN)

    		1 шт
    LO05-12B24 (MORNSUN)

    		1 шт
