Серия AC-DC сетевых преобразователей LOF120-20B

Mornsun

Общие характеристики

 Раздел AC-DC сетевые преобразователи
Выходная мощность (ном)
Тип стабилизации
Вход
Типы защиты КЗ, перегрузка, перенапряжение, перегрев
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Коэффициент мощности
Напряжение изоляции вход-выход
Применение
КПД

Документация на серию LOF120-20B

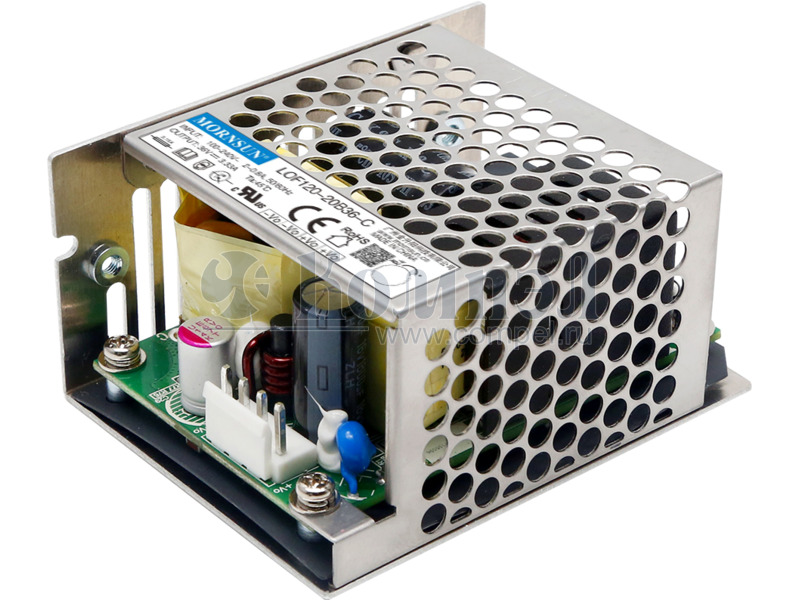

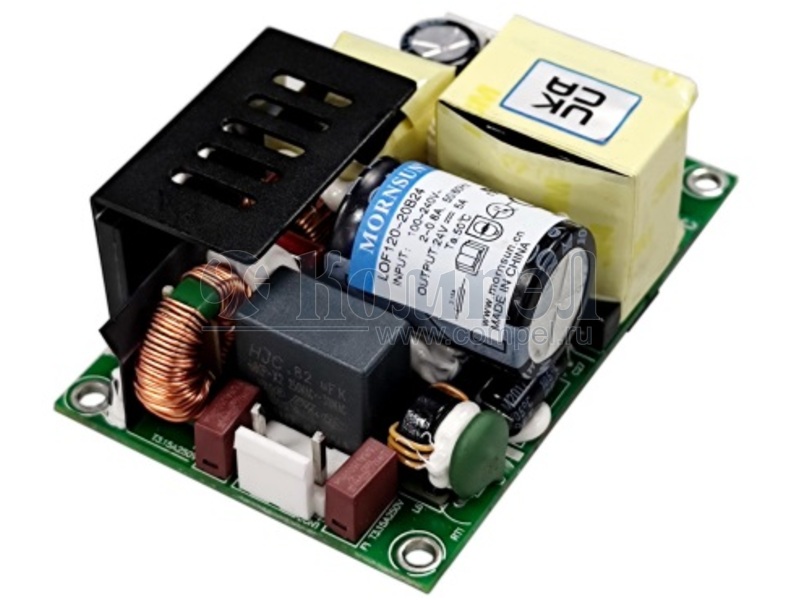

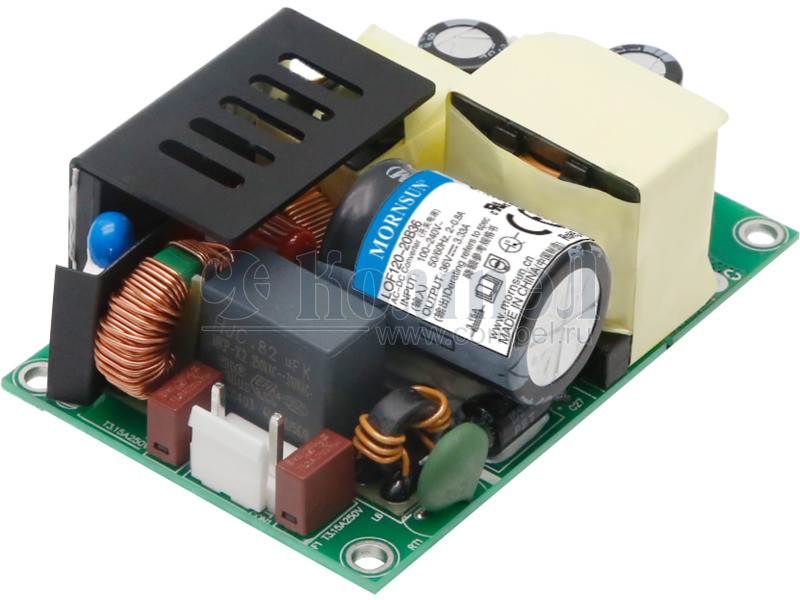

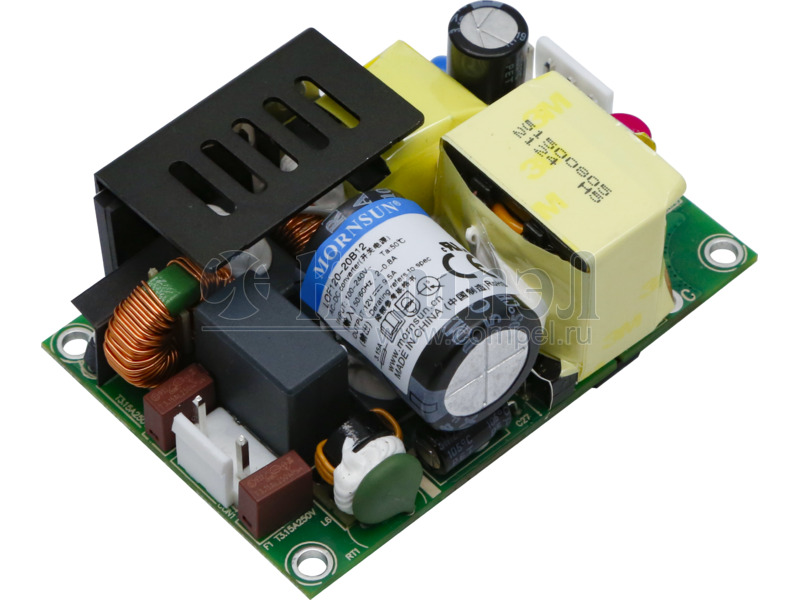

AC/DC 120W Open Frame Power Supply LOF120-20Bxx Series FEATURES  Universal 85 - 264VAC or 120 - 370VDC input voltage  High power density, compact size: 3” × 2” × 1.22”  Operating ambient temperature range: -40℃ to +85℃     Report UL62368-1 ES60601-1 EN62368-1 EN60335-1 EN61558-1 EN60601-1 CB   RoHS  IEC62368-1    Active PFC High I/O isolation test voltage up to 4000VAC Operating altitude up to 5000m Extremely low leakage current ＜0.1mA Stand-by power consumption 0.5W Typ. The base plate with conformal coating Output short circuit, over-current, over-voltage, Over-temperature protection Efficiency up to 95% Suitable for BF application Installing in system of Safety Class I/II is available LOF120-20Bxx series is one of Mornsun’s AC-DC miniaturize open frame power supply and suitable for all kinds of BF type (be accessible to patients) medical system equipment. It features universal AC input and at the same time accepts DC input voltage, cost-effective, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC and safety performance, which meet IEC/EN/UL62368, GB4943, IEC/EN60335, IEC/EN61558, IEC/EN/ES60601, IEC60950 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home, medical, etc. Selection Guide Nominal Output Voltage and Current (Vo/Io) Transient Output Power*10S (W) 114 12V/9.5A 141.6 11.4-12.6 94 6000 LOF120-20B15 114 15V/7.6A 142.5 14.3-15.8 94 5000 LOF120-20B19 119.7 19V/6.3A 149 17.3-19.8 93 4500 Certification UL/EN EN UL/EN/IEC Part No.* LOF120-20B12 Nominal Output Power (W) Output Voltage Efficiency at Adjustable Range 230VAC (%) Typ. (V) Max. Capacitive Load (µF) LOF120-20B24 120 24V/5A 150 22.8-25.2 95 3200 LOF120-20B27 119.9 27V/4.44A 149.8 25.6-28.4 95 2400 UL/EN LOF120-20B36 120 36V/3.33A 149.76 35.28-37.8 94 2000 UL/EN/IEC LOF120-20B48 120 48V/2.5A 150 45.6-50.4 94.5 1600 EN LOF120-20B54 120 54V/2.22A 149.58 51.3-55.5 94 1300 Note: 1.*If the total output power exceeds the nominal output power, it can be maintained for a maximum of 10s. The power supply cannot exceed the transient power. When the output voltage is increased, the total output power cannot exceed the nominal output power; 2.*The maximum transient output power interval must be greater than 30 minutes; 3.*Except 19V, other LOF products with shell is also available, named LOF120-20Bxx-C. Input Specifications Item Input Voltage Range Operating Conditions Typ. Max. AC input 85 -- 264 VAC DC input 120 -- 370 VDC 47 -- 63 Hz 115VAC -- -- 2 230VAC -- -- 1 115VAC -- 40 -- Input Voltage Frequency Input Current Inrush Current Power Factor Unit Min. 230VAC 115VAC 230VAC Cold start Full load -- 75 -- 0.98 -- -- 0.94 -- -- 2021.09.24-A/8 A -- Page 1 of 5 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на LOF120-20B54-C

LOF120-20Bxx_EN Keywords:

Дата модификации: 24.09.2021

Размер: 1.49 Мб

5 стр.

    Товары серии LOF120-20B

    Наименование i Упаковка Выход U1 I1 Конструктив Возможности Размер T раб
    LOF120-20B12 (MORNSUN)

    		1 шт 76.2×50.8×31 мм
    LOF120-20B12-C (MORNSUN)

    		1 шт 80×62×40 мм
    LOF120-20B15 (MORNSUN)

    		на поддоне 18 шт 76.2×50.8×31 мм
    LOF120-20B15-C (MORNSUN)

    		80×62×40 мм
    LOF120-20B24 (MORNSUN)

    		1 шт 76.2×50.8×31 мм
    LOF120-20B24-C (MORNSUN)

    		80×62×40 мм
    LOF120-20B27 (MORNSUN)


    		 1 шт 76.2×50.8×31 мм
    LOF120-20B27-C (MORNSUN)

    		80×62×40 мм
    LOF120-20B36 (MORNSUN)

    		1 шт 76.2×50.8×31 мм
    LOF120-20B36-C (MORNSUN)

    		80×62×40 мм
    LOF120-20B48 (MORNSUN)


    		 10 шт 76.2×50.8×31 мм
    LOF120-20B48-C (MORNSUN)

    		80×62×40 мм
    LOF120-20B54 (MORNSUN)

    		2 шт 80×62×40 мм
    LOF120-20B54-C (MORNSUN)

    		80×62×40 мм
