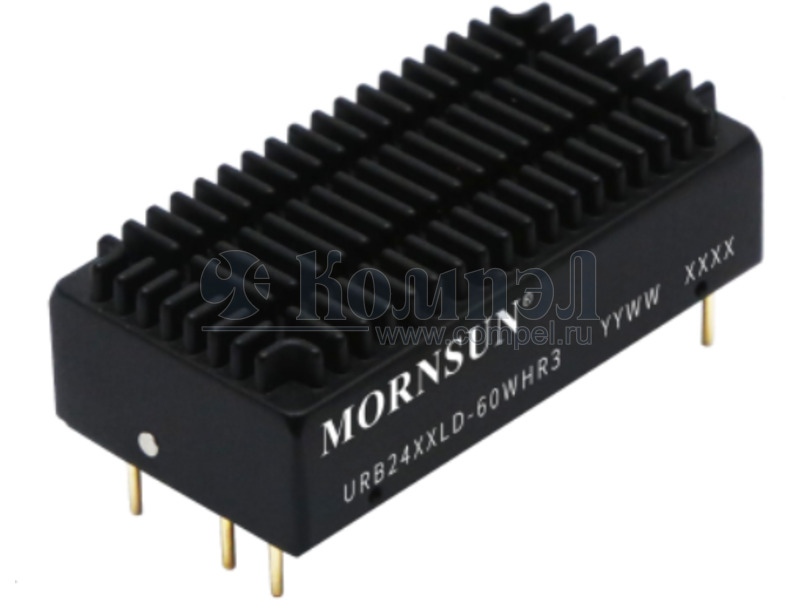

Серия DC-DC модульных преобразователей URB24_LD-60W(H)R3

Mornsun

Общие характеристики

 Раздел DC-DC модульные преобразователи
Монтаж
Выходная мощность
Количество каналов
Входное напряжение
Возможности
Комплекс защит КЗ, пониженное входное напряжение, перегрузка, перенапряжение
Номинальное входное напряжение
Напряжение изоляции вход-выход
Рабочая температура

Документация на серию URB24_LD-60W(H)R3

DC/DC Converter URB24_LD-60W(H)R3 FEATURES 60W isolated DC-DC converter in DIP package Ultra-wide input and regulated single output  Ultra-wide 4:1 input voltage range  High efficiency up to 93.3%  I/O isolation test voltage 1.5K VDC  Input under-voltage protection, output shortcircuit, over-current, over–voltage protection  Operating ambient temperature range: -40℃ to +105℃  Six-sided metal shielding package Patent Protection RoHS  Industry standard pin-out URB24_LD-60W(H)R3 series of isolated 60W DC-DC converter products with an ultra-wide 4:1 input voltage range. They feature efficiencies up to 93%, input to output isolation is tested with 1500VDC and the converter safety operate ambient temperature of -40℃ to +105℃, input under-voltage protection, output over-voltage, over-current, short-circuit protection. They are ideally and widely used in applications such as industrial control, electric power, instruments and communications fields. Selection Guide Input Voltage (VDC) Certification Part No. Nominal (Range) ① Max. Output Voltage (VDC) Current(mA) Max./Min. Full Load Efficiency② (%) Min./Typ. Capacitive Load (µF)Max. 05 12000/600 90/92 20000 12 5000/250 91/93 6000 15 4000/200 91/93.3 4000 24 2500/125 91/93 2000 URB2405LD-60W(H)R3 -- URB2412LD-60W(H)R3 URB2415LD-60W(H)R3 24(9-36) 40 URB2424LD-60W(H)R3 Notes： ①Exceeding the maximum input voltage may cause permanent damage; ②Efficiency is measured at nominal input voltage and rated output load. Input Specifications Item Operating Conditions Input Current (full load / no-load) Nominal input voltage Surge Voltage (1sec. max.) Start-up Voltage Min. Typ. Max. Unit -- 2718/25 2748/30 mA -0.7 -- 50 -- -- 9 Input Filter PI filter Unavailable Hot Plug Ctrl* VDC Module on Ctrl pin open or pulled high TTL (3-12VDC) Module off Ctrl pin pulled low to GND (0-1.2VDC) Note: *The Ctrl pin voltage is referenced to input GND. Output Specifications Item Min. Typ. Max. 5%-100% load -- ±1 ±2 0%-5% load -- ±2 ±5 Linear Regulation Input voltage variation from low to high at full load -- ±0.2 ±0.5 Load Regulation 5%-100% load -- ±0.5 ±1 Transient Response Deviation 25% load step change, input voltage range 5V output -- ±3 ±10 Other output -- ±3 ±5 Transient Recovery Time 25% load step change, nominal input voltage -- 250 500 Voltage Accuracy Operating Conditions 2022.05.17-A0 Unit % µs Page 1 of 9 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на серию URB24_LD-60W(H)R3

URB24_LD-60W(H)R3 Keywords:

Дата модификации: 18.05.2022

Размер: 2.14 Мб

9 стр.

    Товары серии URB24_LD-60W(H)R3

    Наименование i Упаковка Выход U1 Размер
    URB2405LD-60WHR3 (MORNSUN)


    		 в линейках 3 шт 51.4×26.2×16.5 мм
    URB2405LD-60WR3 (MORNSUN)


    		 3 шт 50.8×25.4×11.8 мм
    URB2412LD-60WHR3 (MORNSUN)


    		 51.4×26.2×16.5 мм
    URB2412LD-60WR3 (MORNSUN)


    		 в линейках 30 шт 50.8×25.4×11.8 мм
    URB2415LD-60WHR3 (MORNSUN)


    		 51.4×26.2×16.5 мм
    URB2415LD-60WR3 (MORNSUN)


    		 50.8×25.4×11.8 мм
    URB2424LD-60WHR3 (MORNSUN)


    		 в линейках 10 шт 51.4×26.2×16.5 мм
    URB2424LD-60WR3 (MORNSUN)


    		 в линейках 5 шт 50.8×25.4×11.8 мм
