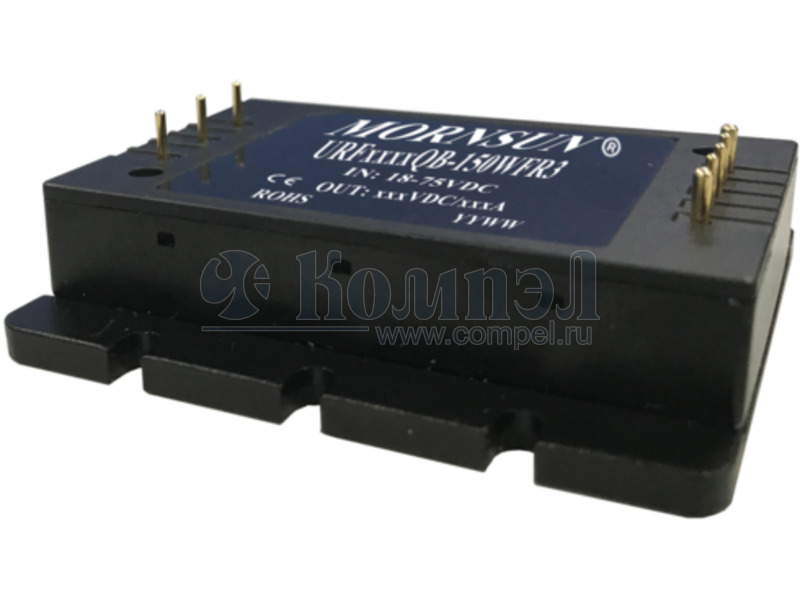

Серия DC-DC модульных преобразователей URF48_QB-150WFR3

Mornsun

Общие характеристики

Раздел DC-DC модульные преобразователи
Монтаж
Выходная мощность
Количество каналов
Входное напряжение
Возможности
Комплекс защит
Номинальное входное напряжение
КПД
Напряжение изоляции вход-выход
Размер 62×56×14.6 мм
Рабочая температура

Документация на серию URF48_QB-150WFR3

DC/DC Converter URF48_QB-150W(F/H)R3(A5/A6) Series 150W isolated DC-DC converter Ultra-wide input and regulated single output FEATURES  Ultra-wide 4:1 input voltage range  High efficiency up to 91%  I/O isolation test voltage 2.25k VDC  Operating ambient temperature range: -40℃ to +85℃  Input under-voltage protection, output short-circuit, over-current, over–voltage, over-temperature protection  Five-sided metal shielded package  Industry standard ¼-Brick package and pin-out Patent Protection RoHS EN62368-1 URF48_QB-150W(F/H)R3(A5/A6) series are isolated 150W DC-DC products with 4:1 input voltage. They feature efficiency up to 91%, 2250VDC input to output isolation, operating ambient temperature of -40℃ to +85℃, input under-voltage, output short circuit, over-current, over–voltage, over-temperature protection. The products meet CLASS A of CISPR32/EN55032 EMI standards by adding the recommended external components and they are widely used in applications such as battery powered systems, industrial controls, electricity, instrumentation, railway, communication and intelligent robotic. Selection Guide Part No. Ctrl ② Logic URF4805QB-150W(F/H)R3 Certification EN ① Input Voltage (VDC) Nominal (Range) Output Full Load Max. Efficiency(%) Capacitive Min./Typ. Load(µF) Voltage (VDC) Current (A) (Max.) P 5 30 86/88 6000 URF4812QB-150W(F/H)R3 P 12 12.5 89/91 2000 URF4815QB-150W(F/H)R3 P 15 10 87/89 2000 URF4824QB-150W(F/H)R3 P 24 6.25 89/91 1000 48 3.13 89/91 450 5 30 84/86 6000 12.5 87/89 2000 Max. ③ URF4848QB-150W(F/H)R3 P URF4805QB-150W(H)R3A5/A6 P URF4812QB-150W(H)R3A5/A6 P 12 URF4815QB-150W(H)R3A5/A6 P 15 10 85/87 2000 URF4824QB-150W(H)R3A5/A6 P 24 6.25 87/89 1000 URF4848QB-150W(H)R3A5/A6 P 48 3.13 87/89 450 48 (18-75) 80 Note: ①Use“F”suffix is for added aluminum baseplate and “H” suffix for heat sink mounting. Use ”A5” suffix for chassis mounting and “A6” suffix for DIN-Rail mounting. We recommend to choose modules with a heat sink for enhanced heat dissipation and applications with extreme temperature requirements; ②”P” means positive logic, “N” means negative logic; ③Exceeding the maximum input voltage may cause permanent damage; ④The minimum input voltage range and the start-up voltage of the A5/A6 product model are 1VDC higher than the horizontal package. Input Specifications Item Operating Conditions Min. Typ. Max. Input Current (full load/no-load) Nominal input voltage -- 3512/100 3634/200 Reflected Ripple Current Nominal input voltage -- 100 -- 2021.08.25-A/9 Unit mA Page 1 of 10 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на URF4812QB-150WFR3

URF48_QB-150W(F/H)R3(A5/A6) Keywords:

Дата модификации: 28.12.2021

Размер: 3.99 Мб

10 стр.

    Товары серии URF48_QB-150WFR3

    Наименование i Упаковка Выход U1 I1
    URF4812QB-150WFR3 (MORNSUN)


    URF4824QB-150WFR3 (MORNSUN)


    на поддоне 100 шт
    URF4848QB-150WFR3 (MORNSUN)
