Серия DC-DC модульных преобразователей DCW05

MEAN WELL

Общие характеристики

 Раздел DC-DC модульные преобразователи
Монтаж
Выходная мощность
Количество каналов
Комплекс защит короткого замыкания, перегрузки
Схема параллельного включения
Напряжение изоляции вход-выход
Сертификаты медицинские

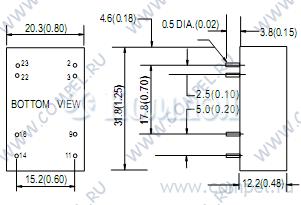

Размер 31.8×20.3×12.2 мм
Рабочая температура

Документация на серию DCW05

DCW05 5W DC-DC Regulated Dual Output Converter series ■ Features : 2:1 wide input range 4:1 wide input range(option) 1000VDC I/O isolation 3000VDC I/O isolation(option) Built-in EMI filter Protections: Short circuit / Overload Cooling by free air convection Five-sided shield metal case 100% burn-in test Low cost / High reliability Approvals: FCC / CE 2 years warranty SPECIFICATION ORDER NO. OUTPUT DCW05A-05 DCW05B-05 DCW05C-05 DCW05A-12 DCW05B-12 DCW05C-12 DCW05A-15 DCW05B-15 DCW05C-15 DC VOLTAGE ±5V ±12V ±15V CURRENT RANGE ±100 ~ ±500mA ±46 ~ ±230mA ±38 ~ ±190mA RATED POWER 5W 5.5W 5.7W 60mVp-p 60mVp-p RIPPLE & NOISE (max.) Note.2 50mVp-p LINE REGULATION Note.3 ±0.5% LOAD REGULATION INPUT Note.4 ±0.5% VOLTAGE ACCURACY ±2.0% SWITCHING FREQUENCY 50KHz min. VOLTAGE RANGE A: 9 ~ 18VDC EFFICIENCY (Typ.) 75% DC CURRENT Full load A: 586mA B: 286mA C: 139mA No load C: 12mA FILTER Pi network Fuse recommended 150 ~ 250% rated output load Protection type : Shunt down o/p voltage, re-power on to recover All output equipped with over current protection PROTECTION OVERLOAD PROTECTION SHORT CIRCUIT B: 18 ~ 36VDC 77% A: 41mA C: 36 ~ 72VDC 77% B: 21mA 80% 82% 83% 83% 81% 85% Protection type : Shun down o/p voltage, re-power on to recover WORKING TEMP. -40 ~ +71℃ (Refer to "Derating Curve") WORKING HUMIDITY 20% ~ 90% RH non-condensing ENVIRONMENT STORAGE TEMP., HUMIDITY -40 ~ +105℃, 10 ~ 95% RH TEMP. COEFFICIENT ±0.03% / ℃ (0 ~ 50℃) VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004 approved SAFETY STANDARDS WITHSTAND VOLTAGE SAFETY & ISOLATION RESISTANCE EMC ISOLATION CAPACITANCE (Note. 5) OTHERS I/P-O/P:1KVDC I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH 80pF max. EMC EMISSION EMC IMMUNITY MTBF Compliance to EN55032 Class B, FCC part 15 Class B , EAC TP TC 020 Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020 DIMENSION 31.8*20.3*12.2mm (L*W*H) or 1.25"*0.80"*0.48" inch (L*W*H) 15g 900khrs min. MIL-HDBK-217F (25℃) PACKING Derating Curve Pin Configuration Mechanical Specification Unit:mm(inch) 22 3 BOTTOM VIEW 16 9 14 11 15.2(0.60) 2.5(0.10) 5.0(0.20) 0.6+ 0.1/-0(0.024) 12.2(0.48) Pin Size is Tolerance 0.5±0.05mm, Tolerance .X or .XX= ±0.5mm NOTE Pin No. Output 2&3 9 11 14 16 22 & 23 - Vi n COM - Vo u t + Vo u t COM + Vi n 100 LOAD (%) 2 3.8(0.15) 17.8(0.70) 23 31.8(1.25) 4.6(0.18) 20.3(0.80) 80 -40 0 25 50 60 71 100 Ta (℃) 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor. 3.Line regulation is measured from low line to high line at rated load. 4.Load regulation is measured from 20% to 100% rated load. 5.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. File Name:DCW05-SPEC 2018-01-15 PDF
Документация на DCW05A-05

DCW05.cdr

Дата модификации: 27.07.2018

Размер: 59 Кб

1 стр.

DCW05 5W DC-DC regulated dual output converter series Features : 2:1 wide input range 4:1 wide input range(optional) 1000VDC I/O isolation Input Pi network filter Protections: Short circuit/ Over load Free air convection Five-sided shield metal case High reliability/ Low cost 100% burn-in test 1 year warranty SPECIFICATION ORDER NO. DCW05A-05 DCW05B-05 DCW05C-05 DCW05A-12 DCW05B-12 DCW05C-12 DCW05A-15 DCW05B-15 DCW05C-15 5V 12V 15V 50 ~ 500mA 23 ~ 230mA 19 ~ 190mA DC VOLTAGE CURRENT RANGE 5W 5.5W 5.7W 50mVp-p 60mVp-p 60mVp-p RATED POWER OUTPUT RIPPLE & NOISE (max.) Note.2 LINE REGULATION Note.3 0.5% LOAD REGULATION Note.4 0.5% 2% VOLTAGE ACCURACY 50KHz min. SWITCHING FREQUENCY INPUT VOLTAGE RANGE A: 9 ~ 18VDC EFFICIENCY (Typ.) 75% DC CURRENT FILTER B: 18~36VDC 77% C: 36~72VDC 77% 80% Full load A: 586mA B: 286mA C: 139mA No load A: 41mA C: 12mA B: 21mA 82% 83% 83% 81% 85% Pi network 150~250% rated output load Protection type : Shunt down o/p voltage, re-power on to recover All output equipped with over current protection OVER LOAD PROTECTION SHORT CIRCUIT Protection type : Shun down o/p voltage, re-power on to recover WORKING TEMP. -25~+71 WORKING HUMIDITY 20%~90% RH non-condensing ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION WITHSTAND VOLTAGE SAFETY & ISOLATION RESISTANCE EMC ISOLATION CAPACITANCE (Note. 5) MTBF OTHERS DIMENSION PACKING -25~+105 (refer to output load derating curve) , 10~95% RH 0.03% / (0~50 ) 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes I/P-O/P:1KVDC I/P-O/P: 100M Ohms / 500VDC 80pF max. 900khrs min. MIL-HDBK-217F (25 ) 31.8*20.3*12.2mm (L*W*H) or 1.25"*0.80"*0.48" inch (L*W*H) 15g Derating Curve Pin Configuration Mechanical Specification Unit:mm(inch) 22 3 BOTTOM VIEW 16 9 14 11 3.8(0.15) 2.5( 0.10 ) 5.0( 0.20 ) Pin no. Output Dual 2&3 9 11 14 16 22 & 23 - Vi n COM - Vo u t + Vo u t COM + Vi n 100 LOAD (%) 2 0.5 DIA.(0.02) 17.8(0.70) 23 31.8(1.25) 4.6(0.18) 20.3(0.80) 80 -25 15.2(0.60) 0 25 50 60 71 Ta ( NOTE 100 12.2(0.48) ) 1.All parameters are specified at normal input, rated load, 25 70% RH. Ambient. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor. 3.Line regulation is measured from low line to high line at rated load. 4.Load regulation is measured from 10% to 100% rated load. 5.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. File Name:DCW05-SPEC 2004-05-11 PDF
Документация на серию DCW05

DCW05.cdr

Дата модификации: 14.05.2004

Размер: 76.8 Кб

1 стр.

    Товары серии DCW05

    Наименование i Упаковка U вх Выход Возможности U вх ном. U1 U2 I1 I2 Шум КПД
    DCW05A-05 (MW)

    		DC-DC модульный преобразователь - Монтаж: на плату, DIP24; P вых: 5 Вт; #: 2; U вх: 9..... 1 шт DC-DC Regulated Power Supply Module
    DCW05A-12 (MW)

    		DC-DC модульный преобразователь - Монтаж: на плату, DIP24; P вых: 5 Вт; #: 2; U вх: 9..... 1 шт
    DCW05A-15 (MW)

    		DC-DC модульный преобразователь - Монтаж: на плату, DIP24; P вых: 5 Вт; #: 2; U вх: 9..... 2 шт
    DCW05B-05 (MW)

    		DC-DC модульный преобразователь - Монтаж: на плату, DIP24; P вых: 5 Вт; #: 2; U вх: 18.... 1 шт
    DCW05B-12 (MW)

    		DC-DC модульный преобразователь - Монтаж: на плату, DIP24; P вых: 5 Вт; #: 2; U вх: 18.... в линейках 10 шт
    DCW05B-15 (MW)

    		в линейках 15 шт DC-DC Regulated Power Supply Module
    DCW05C-05 (MW)

    		DC-DC модульный преобразователь - Монтаж: на плату, DIP24; P вых: 5 Вт; #: 2; U вх: 36.... 6 шт
    DCW05C-12 (MW)

    		DC-DC модульный преобразователь - Монтаж: на плату, DIP24; P вых: 5 Вт; #: 2; U вх: 36.... 1 шт
    DCW05C-15 (MW)

    		DC-DC модульный преобразователь - Монтаж: на плату, DIP24; P вых: 5 Вт; #: 2; U вх: 36.... в линейках 15 шт
