Серия AC-DC сетевых преобразователей HRPG-300

MEAN WELL

Общие характеристики

 Раздел AC-DC сетевые преобразователи
Тип стабилизации
Вход
Конструктивное исполнение
  Возможности: ККМ, компенсация на проводах, 1U профиль, ограничение тока, дистанционное Вкл/Выкл, сигнал DC OK, дополнительный выход 5 В Stand By
Типы защиты КЗ, перегрузка, перенапряжение, перегрев
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение

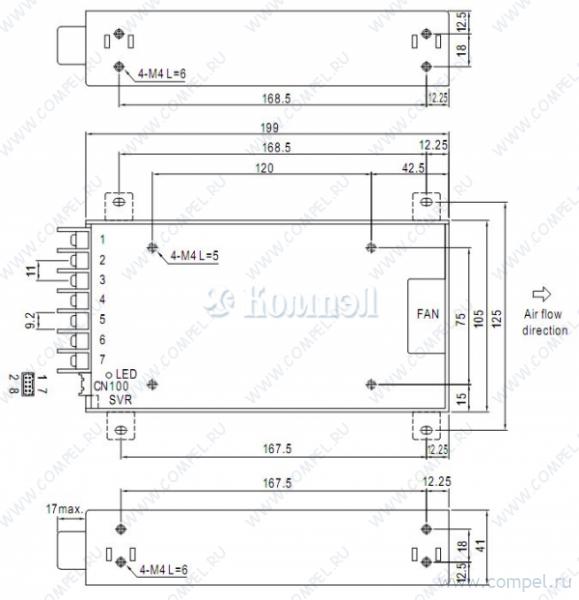

Размер 98×199×38 мм
Рабочая температура

Документация на серию HRPG-300

HRPG-300 300W Single Output with PFC Function ■ Features : Universal AC input / Full range Built-in active PFC function, PF>0.95 High efficiency up to 89% Withstand 300VAC surge input for 5 seconds Protections: Short circuit / Overload / Over voltage / series User’s Manual Over temperature Built-in constant current limiting circuit 1U low profile 41mm Built-in cooling fan ON-OFF control Built-in DC OK signal Built-in remote ON-OFF control Standby 5V@0.3A Built-in remote sense function No load power consumption<0.5W (Note.6) 5 years warranty Bauar t gepruft Sicherheit egel ma ge od o s be wac g www. tuv.com ID 2000000000 SPECIFICATION MODEL OUTPUT BS EN/EN62368-1 TPTC004 IEC62368-1 HRPG-300-3.3 HRPG-300-5 HRPG-300-7.5 HRPG-300-12 HRPG-300-15 HRPG-300-24 HRPG-300-36 HRPG-300-48 DC VOLTAGE 3.3V 5V 7.5V 12V 15V 24V 36V 48V RATED CURRENT 60A 60A 40A 27A 22A 14A 9A 7A CURRENT RANGE 0 ~ 60A 0 ~ 60A 0 ~ 40A 0 ~ 27A 0 ~ 22A 0 ~ 14A 0 ~ 9A 0 ~ 7A RATED POWER 198W 300W 300W 324W 330W 336W 324W 336W RIPPLE & NOISE (max.) Note.2 80mVp-p 90mVp-p 100mVp-p 120mVp-p 150mVp-p 150mVp-p 250mVp-p 250mVp-p VOLTAGE ADJ. RANGE 4.3 ~ 5.8V ±2.0% 6.8 ~ 9V ±2.0% 10.2 ~ 13.8V ±1.0% 13.5 ~ 18V ±1.0% 21.6 ~ 28.8V ±1.0% 28.8 ~ 39.6V ±1.0% 40.8 ~ 55.2V ±1.0% 2.8 ~ 3.8V VOLTAGE TOLERANCE Note.3 ±2.5% LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.3% ±0.3% ±0.2% ±0.2% ±0.2% LOAD REGULATION ±1.0% ±1.0% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% SETUP, RISE TIME 1000ms, 50ms/230VAC HOLD UP TIME (Typ.) 16ms/230VAC 87% 88% 89% VOLTAGE RANGE Note.5 85 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz INPUT PROTECTION FUNCTION 2500ms, 50ms/115VAC at full load 16ms/115VAC at full load 120 ~ 370VDC POWER FACTOR (Typ.) PF>0.95/230VAC EFFICIENCY (Typ.) 80% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 3.5A/115VAC 35A/115VAC LEAKAGE CURRENT <1.2mA / 240VAC OVERLOAD 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed 6 ~ 7V 9.4 ~ 10.9V 14.4 ~ 16.8V 18.8 ~ 21.8V 30 ~ 34.8V 41.4 ~ 48.6V 3.96 ~ 4.62V OVER VOLTAGE PF>0.99/115VAC at full load 82% 86% 88% 88% 1.8A/230VAC 70A/230VAC 57.6 ~ 67.2V Protection type : Shut down o/p voltage, re-power on to recover OVER TEMPERATURE 5V STANDBY Shut down o/p voltage, recovers automatically after temperature goes down 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.) DC OK SIGNAL PSU turns on : 3.3 ~ 5.6V ; PSU turns off : 0 ~ 1V REMOTE CONTROL RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off FAN CONTROL (Typ.) Load 35±15% or RTH2≧50℃ Fan on WORKING TEMP. -40 ~ +70 ℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY -40 ~ +85 ℃ , 10 ~ 95% RH TEMP. COEFFICIENT ± 0.03%/ ℃ (0 ~ 50 ℃ ) VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC (Note 4) EMC EMISSION OTHERS I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 ℃ / 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55024, BS EN/ EN61000-6-2, heavy industry level,criteria A,EAC TP TC 020 MTBF 176K hrs min. DIMENSION 199*105*41mm (L*W*H) 0.95Kg;15pcs/15.3Kg/0.79CUFT PACKING NOTE UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC MIL-HDBK-217F (25 ℃ ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) 5. Derating may be needed under low input voltages. Please check the derating curve for more details. 6. No load power consumption<0.5W when RC- & RC+ (CN100 pin4,6) 0 ~ 0.8V or short. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:HRPG-300-SPEC 2021-09-15 PDF
Документация на HRPG-300-7.5

HRPG-300-20210915.cdr

Дата модификации: 28.09.2021

Размер: 103.1 Кб

4 стр.

HRPG-300 300W Single Output with PFC Function series ■ Features : •Universal AC input / Full range •Built-in active PFC function, PF>0.95 •High efficiency up to 89% •Withstand 300VAC surge input for 5 seconds •Protections: Short circuit / Overload / Over voltage / Over temperature •Built-in constant current limiting circuit •1U low profile 41mm •Built-in cooling fan ON-OFF control •Built-in DC OK signal •Built-in remote ON-OFF control •Standby 5V@0.3A •Built-in remote sense function •No load power consumption<0.5W (Note.6) •5 years warranty SPECIFICATION MODEL OUTPUT HRPG-300-3.3 HRPG-300-5 HRPG-300-7.5 HRPG-300-12 HRPG-300-15 HRPG-300-24 HRPG-300-36 HRPG-300-48 DC VOLTAGE 3.3V 5V 7.5V 12V 15V 24V 36V 48V RATED CURRENT 60A 60A 40A 27A 22A 14A 9A 7A CURRENT RANGE 0 ~ 60A 0 ~ 60A 0 ~ 40A 0 ~ 27A 0 ~ 22A 0 ~ 14A 0 ~ 9A 0 ~ 7A RATED POWER 198W 300W 300W 324W 330W 336W 324W 336W RIPPLE & NOISE (max.) Note.2 80mVp-p 90mVp-p 100mVp-p 120mVp-p 150mVp-p 150mVp-p 250mVp-p 250mVp-p VOLTAGE ADJ. RANGE 4.3 ~ 5.8V ±2.0% 6.8 ~ 9V ±2.0% 10.2 ~ 13.8V ±1.0% 13.5 ~ 18V ±1.0% 21.6 ~ 28.8V ±1.0% 28.8 ~ 39.6V ±1.0% 40.8 ~ 55.2V ±1.0% 2.8 ~ 3.8V VOLTAGE TOLERANCE Note.3 ±2.5% LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.3% ±0.3% ±0.2% ±0.2% ±0.2% LOAD REGULATION ±1.0% ±1.0% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% SETUP, RISE TIME 1000ms, 50ms/230VAC HOLD UP TIME (Typ.) 16ms/230VAC 87% 88% 89% 16ms/115VAC at full load VOLTAGE RANGE Note.5 85 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz INPUT PROTECTION 120 ~ 370VDC POWER FACTOR (Typ.) PF>0.95/230VAC EFFICIENCY (Typ.) 80% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 4.5A/115VAC 35A/115VAC LEAKAGE CURRENT <1.2mA / 240VAC OVERLOAD OVER VOLTAGE 2500ms, 50ms/115VAC at full load PF>0.99/115VAC at full load 82% 86% 88% 88% 2.5A/230VAC 70A/230VAC 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed 6 ~ 7V 9.4 ~ 10.9V 14.4 ~ 16.8V 18.8 ~ 21.8V 30 ~ 34.8V 41.4 ~ 48.6V 3.96 ~ 4.62V 57.6 ~ 67.2V Protection type : Shut down o/p voltage, re-power on to recover 90℃ ± 5 ℃ (TSW1: detect on heatsink of power transistor) FUNCTION OVER TEMPERATURE 100 ℃± 5℃ for 3.3V,5V,7.5V ; 95℃ ± 5 ℃ for others (TSW2: detect on heatsink of power diod e) 5V STANDBY Protection type : Shut down o/p voltage, recovers automatically after temperature goes down 5VSB : 5V@0.3A ; tolerance± 5%, ripple : 50mVp-p(max.) DC OK SIGNAL PSU turns on : 3.3 ~ 5.6V ; PSU turns off : 0 ~ 1V REMOTE CONTROL RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off FAN CONTROL (Typ.) Load 35± 15% or RTH2≧50℃ Fan on WORKING TEMP. -40 ~ +70 ℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY -40 ~ +85 ℃ , 10 ~ 95% RH TEMP. COEFFICIENT ± 0.03%/ ℃ (0 ~ 50 ℃ ) VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes SAFETY STANDARDS UL60950-1, TUV EN60950-1 approved I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC (Note 4) EMC EMISSION OTHERS NOTE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 ℃ / 70% RH Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, heavy industry level, criteria A MTBF 176K hrs min. DIMENSION 199*105*41mm (L*W*H) PACKING 0.95Kg;15pcs/15.3Kg/0.69CUFT MIL-HDBK-217F (25 ℃ ) 1. 2. 3. 4. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. Tolerance : includes set up tolerance, line regulation and load regulation. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com) 5. Derating may be needed under low input voltages. Please check the derating curve for more details. 6. No load power consumption<0.5W when RC- & RC+ (CN100 pin4,6) 0 ~ 0.8V or short. File Name:HRPG-300-SPEC 2013-10-21 PDF
Документация на серию HRPG-300

Subject:

Дата модификации: 22.10.2013

Размер: 156.2 Кб

4 стр.

    Товары серии HRPG-300

    Наименование i Упаковка P вых Выход U1 I1 КПД Шум
    HRPG-300-12 (MW)

    		AC-DC сетевой преобразователь - P вых: 324 Вт; Выход: 12 В, 5 В SB; U1: 10.2...13.8 В; ... в коробках 15 шт
    HRPG-300-15 (MW)

    		AC-DC сетевой преобразователь - P вых: 330 Вт; Выход: 15 В, 5 В SB; U1: 13.5...18 В; I1... 1 шт
    HRPG-300-24 (MW)

    		в коробках 15 шт
    HRPG-300-3.3 (MW)

    		AC-DC сетевой преобразователь - P вых: 198 Вт; Выход: 3.3 В, 5 В SB; U1: 2.8...3.8 В; I...
    HRPG-300-36 (MW)

    		AC-DC сетевой преобразователь - P вых: 324 Вт; Выход: 36 В, 5 В SB; U1: 28.8...39.6 В; ... 1 шт
    HRPG-300-48 (MW)

    		AC-DC сетевой преобразователь - P вых: 336 Вт; Выход: 48 В, 5 В SB; U1: 40.8...55.2 В; ... в коробках 15 шт
    HRPG-300-5 (MW)

    		AC-DC сетевой преобразователь - P вых: 300 Вт; Выход: 5 В, 5 В SB; U1: 4.3...5.8 В; I1:... 1 шт
    HRPG-300-7.5 (MW)

    		AC-DC сетевой преобразователь - P вых: 300 Вт; Выход: 7.5 В, 5 В SB; U1: 6.8...9 В; I1:... 1 шт
