Серия AC-DC сетевых преобразователей PPT-125

MEAN WELL

Общие характеристики

 Раздел AC-DC сетевые преобразователи
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, перегрузка, перенапряжение
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
Шум

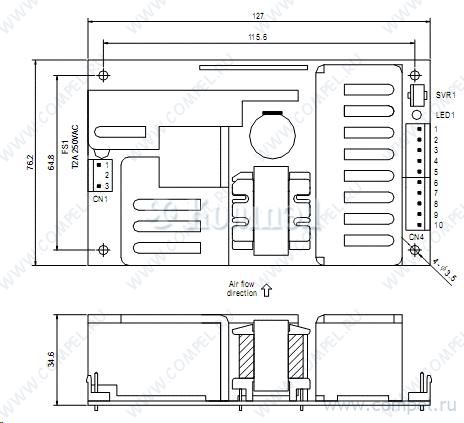

Размер 127×76.2×34.6 мм
Рабочая температура

Документация на серию PPT-125

P P T- 1 2 5 125W Triple Output with PFC Function ■ Features : series User’s Manual Universal AC input / Full range Built-in active PFC function Protections: Short circuit / Overload / Over voltage PWM control and regulated High power density 6.117W/inch LED indicator for power on 100% full load burn-in test 125W with 18CFM FAN 5"x3" compact size 3 years warranty 3 Bauar t gepruft Sicherheit egel ma ge od o s be wac g www. tuv.com ID 2000000000 SPECIFICATION MODEL UL62368-1 AS/NZS62368-1 PPT-125A PPT-125B BS EN/EN62368-1 IEC62368-1 TPTC004 PPT-125C PPT-125D OUTPUT NUMBER CH1 CH2 CH3 CH1 CH2 CH3 CH1 CH2 CH3 CH1 CH2 DC VOLTAGE 3.3V 5V 12V 5V 12V -12V 5V 15V -15V 5V 24V 12V RATED CURRENT 10A 8A 0.5A 11.5A 3A 0.5A 11A 2.5A 0.5A 7A 2.5A 0.5A CURRENT RANGE (convection) 1 ~ 10A 0.8 ~ 8A 0.05 ~ 0.5A 1 ~ 11.5A 0.3 ~ 3A 0.05 ~ 0.5A 1 ~ 11A 0.25 ~ 2.5A 0.05 ~ 0.5A 1 ~ 7A CH3 0.25 ~ 2.5A 0.05 ~ 0.5A CURRENT RANGE (18CFM FAN) 1 ~ 12.5A 0.8 ~ 10A 0.05 ~ 0.63A 1 ~ 14.38A 0.3 ~ 3.75A 0.05 ~ 0.63A 1 ~ 13.75A 0.25 ~ 3.13A 0.05 ~ 0.63A 1 ~ 8.75A 0.25 ~ 3.13A 0.05 ~ 0.63A OUTPUT RATED POWER (convection) 79W 99.5W 100W 101W RATED POWER (18CFM FAN) 98.81W 124.46W 125.15W 126.43W RIPPLE & NOISE (max.) Note.2 100mVp-p 100mVp-p 120mVp-p 100mVp-p 120mVp-p 120mVp-p 100mVp-p 150mVp-p 150mVp-p 100mVp-p 240mVp-p 120mVp-p VOLTAGE ADJ. RANGE INPUT CH1:3.13 ~ 3.46V VOLTAGE TOLERANCE Note.3 ±3.0% ±5.0% ±6.0% CH1:4.75 ~ 5.25V ±3.0% ±5.0% ±6.0% CH1:4.75 ~ 5.25V ±3.0% ±5.0% ±6.0% CH1:4.75 ~ 5.25V ±3.0% ±5.0% ±6.0% LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% LOAD REGULATION ±3.0% ±3.0% ±5.0% ±3.0% ±3.0% ±5.0% ±3.0% ±3.0% ±5.0% ±3.0% ±3.0% ±5.0% SETUP, RISE TIME 1000ms, 30ms/230VAC HOLD UP TIME (Typ.) 24ms/230VAC VOLTAGE RANGE 90 ~ 264VAC FREQUENCY RANGE 47~63Hz POWER FACTOR (Typ.) PF>0.93/230VAC EFFICIENCY (Typ.) 75% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1.7A/115VAC 0.75A/230VAC COLD START 24A/230VAC 2000ms, 30ms/115VAC at full load 24ms/115VAC at full load 127 ~ 370VDC PF>0.98/115VAC at full load 78% 78% LEAKAGE CURRENT <2mA / 240VAC OVERLOAD 130 ~ 160% rated output power Protection type : Fold back current limiting, recovers automatically after fault condition is removed PROTECTION OVER VOLTAGE WORKING TEMP., HUMIDITY WORKING TEMP. CH1:3.6 ~ 4.45V CH1:5.75 ~ 6.75V CH1:5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed -20 ~ +70℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT -40 ~ +85℃, 10 ~ 95% RH VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE SAFETY & ISOLATION RESISTANCE EMC (Note 4) EMC EMISSION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1 , EAC TP TC 004 approved I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC OTHERS CH1:5.75 ~ 6.75V ±0.05%/℃ (0 ~ 50℃) I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 MTBF 94.7Khrs min. MIL-HDBK-217F (25℃) 127*76.2*34.6mm (L*W*H) 0.37Kg; 36pcs/14.3Kg/0.96CUFT DIMENSION PACKING NOTE 78% 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) 5. Heat Sink HS1,HS2 & HS3 can not be shorted. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:PPT-125-SPEC 2021-09-15 PDF
Документация на PPT-125D

PPT-125-20210915.cdr

Дата модификации: 02.12.2021

Размер: 143.2 Кб

2 стр.

P P T- 1 2 5 125W Triple Output with PFC Function series Features : Universal AC input / Full range Built-in active PFC function Protections:Short circuit/Over load/Over voltage PWM control and regulated 3 High power density 6.117W/inch LED indicator for power on 100% full load burn-in test 125W with 18CFM FAN 5"x3" compact size 3 years warranty SPECIFICATION MODEL PPT-125A PPT-125B PPT-125C PPT-125D OUTPUT NUMBER CH1 CH2 CH3 CH1 CH2 CH3 CH1 CH2 CH3 CH1 CH2 DC VOLTAGE 3.3V 5V 12V 5V 12V -12V 5V 15V -15V 5V 24V 12V RATED CURRENT 10A 8A 0.5A 11.5A 3A 0.5A 11A 2.5A 0.5A 7A 2.5A 0.5A CURRENT RANGE (convection) 1 ~ 10A 0.8 ~ 8A 0.05 ~ 0.5A 1 ~ 11.5A 0.3 ~ 3A 0.05 ~ 0.5A 1 ~ 11A 0.25 ~ 2.5A 0.05 ~ 0.5A 1 ~ 7A CH3 0.25 ~ 2.5A 0.05 ~ 0.5A CURRENT RANGE (18CFM FAN) 1 ~ 12.5A 0.8 ~ 10A 0.05 ~ 0.63A 1 ~ 14.38A 0.3 ~ 3.75A 0.05 ~ 0.63A 1 ~ 13.75A 0.25 ~ 3.13A 0.05 ~ 0.63A 1 ~ 8.75A 0.25 ~ 3.13A 0.05 ~ 0.63A OUTPUT RATED POWER (convection) 79W 99.5W 100W 101W RATED POWER (18CFM FAN) 98.8W 124.46W 125.15W 126.43W RIPPLE & NOISE (max.) Note.2 100mVp-p 100mVp-p 120mVp-p 100mVp-p 120mVp-p 120mVp-p 100mVp-p 150mVp-p 150mVp-p 100mVp-p 240mVp-p 120mVp-p VOLTAGE ADJ. RANGE VOLTAGE TOLERANCE Note.3 INPUT CH1:3.13 ~ 3.46V 3.0% 5.0% CH1:4.75 ~ 5.25V 3.0% 5.0% 6.0% 6.0% CH1:4.75 ~ 5.25V 3.0% 5.0% 6.0% CH1:4.75 ~ 5.25V 3.0% 5.0% 6.0% LINE REGULATION 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% LOAD REGULATION 3.0% 3.0% 5.0% 3.0% 3.0% 5.0% 3.0% 3.0% 5.0% 3.0% 3.0% 5.0% SETUP, RISE TIME 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load HOLD TIME (Typ.) 24ms/230VAC VOLTAGE RANGE 90 ~ 264VAC FREQUENCY RANGE 47~63Hz POWER FACTOR (Typ.) PF>0.93/230VAC EFFICIENCY (Typ.) 75% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1.7A/115VAC 0.75A/230VAC COLD START 24A/230VAC 24ms/115VAC at full load 127 ~ 370VDC PF>0.98/115VAC at full load 78% 78% LEAKAGE CURRENT <2mA / 240VAC OVER LOAD 130 ~ 160% rated output power Protection type : Fold back current limiting, recovers automatically after fault condition is removed PROTECTION OVER VOLTAGE WORKING TEMP., HUMIDITY WORKING TEMP. ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE CH1:3.6 ~ 4.45V CH1:5.75 ~ 6.75V CH1:5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed -20 ~ +70 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -40 ~ +85 0.05%/ 78% CH1:5.75 ~ 6.75V , 10 ~ 95% RH (0 ~ 50 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes UL60950-1, TUV EN60950-1 Approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC SAFETY & ISOLATION RESISTANCE EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B EMC (Note 4) OTHERS HARMONIC CURRENT Compliance to EN61000-3-2,-3 EMS IMMUNITY MTBF Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, Light industry level, criteria A 94.7Khrs min. MIL-HDBK-217F (25 ) 127*76.2*34.6mm (L*W*H) 0.37Kg; 36pcs/14.3Kg/0.91CUFT DIMENSION PACKING NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. File Name:PPT-125-SPEC 2006-04-13 PDF
Документация на серию PPT-125

PPT-125.cdr

Дата модификации: 22.04.2006

Размер: 268.9 Кб

2 стр.

    Товары серии PPT-125

    Наименование i Упаковка P вых Выход U1 I1 КПД
    PPT-125A (MW)

    		Преобразователь напряжения AC-DC на шасси. 79Вт, Uвх=90-264В AC(127-370В DC), три выход... в коробках 6 шт
    PPT-125B (MW)

    		AC-DC сетевой преобразователь - P вых: 125 Вт; Выход: 5 В, 12 В, -12 В; U1: 4.75...5.25... 6 шт
    PPT-125C (MW)

    		AC-DC сетевой преобразователь - P вых: 125 Вт; Выход: 5 В, 15 В, -15 В; U1: 4.75...5.25... 4 шт
    PPT-125D (MW)

    		AC-DC сетевой преобразователь - P вых: 125 Вт; Выход: 5 В, 24 В, 12 В; U1: 4.75...5.25 ... 2 шт
