Серия AC-DC сетевых преобразователей RQ-65

Общие характеристики

	Раздел	AC-DC сетевые преобразователи
	Выходная мощность (ном)
	Напряжение 1 канала
	Выходной ток 1 канала
	Тип стабилизации
	Вход
	Конструктивное исполнение
	Возможности
	Типы защиты	КЗ, перегрузка, перенапряжение
	Количество выходов
	Тип управления выходом
	Исполнение
	Входное напряжение AC
	Входное напряжение DC
	Коэффициент мощности
	Напряжение изоляции вход-выход
	Напряжение изоляции вход-земля
	Напряжение изоляции выход-земля
	Применение
	Шум

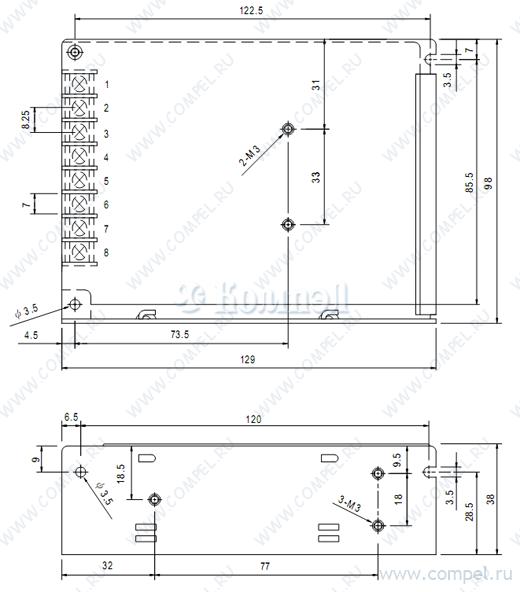

	Размер	129×98×38 мм
	Рабочая температура

Документация на серию RQ-65

RQ-65 65W Quad Output Switching Power Supply series User’s Manual ■ Features : Universal AC input / Full range Protections:Short circuit / Overload / Over voltage Cooling by free air convection LED indicator for power on 100% full load burn-in test All using 105℃ long life electrolytic capacitors Withstand 300VAC surge input for 5 second High operating temperature up to 70℃ Withstand 5G vibration test High efficiency, long life and high reliability 3 years warranty Bauar t gepruft Sicherheit egel ma ge od o s be wac g SPECIFICATION www. tuv.com ID 2000000000 UL62368-1 MODEL OUTPUT INPUT PROTECTION RQ-65B CH1 CH2 CH3 CH4 CH1 CH2 CH3 CH4 CH1 CH2 CH3 DC VOLTAGE 5V 12V -5V -12V 5V 15V -5V -15V 5V 12V 24V -12V RATED CURRENT 6A 2A 0.5A 0.5A 5A 2A 0.5A 0.5A 4A 1.5A 1A 0.5A 0 ~ 3A 0 ~ 1A 0 ~ 1A 0 ~ 8A 0 ~ 3A 0 ~ 1A 0 ~ 1A 0 ~ 8A 0 ~ 3A 0 ~ 1.5A 0 ~ 1A CURRENT RANGE Note.6 0 ~ 8A RATED POWER Note.6 62.5W 65W CH4 68W RIPPLE & NOISE (max.) Note.2 80mVp-p 120mVp-p 80mVp-p 80mVp-p 80mVp-p 120mVp-p 80mVp-p 80mVp-p 80mVp-p 120mVp-p 180mVp-p 80mVp-p VOLTAGE ADJ. RANGE CH1: 4.75 ~ 5.5V VOLTAGE TOLERANCE Note.3 ±2.0% +9,-5% ±5.0% ±5.0% CH1: 4.75 ~ 5.5V ±2.0% +10,-4% ±5.0% ±5.0% CH1: 4.75 ~ 5.5V ±2.0% +6,-10% +6,-10% ±5.0% LINE REGULATION Note.4 ±0.5% ±1.5% ±0.5% ±0.5% ±0.5% ±1.5% ±0.5% ±0.5% ±0.5% ±1.5% ±2.0% ±0.5% LOAD REGULATION Note.5 ±0.5% ±3.0% ±1.0% ±1.0% ±0.5% ±4.0% ±1.0% ±1.0% ±0.5% ±3.0% ±5.0% ±1.0% SETUP, RISE TIME 500ms, 20ms/230VAC HOLD UP TIME (Typ.) 60ms/230VAC VOLTAGE RANGE 88 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 75% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 2A/115VAC 1.2A/230VAC COLD START 50A/230VAC LEAKAGE CURRENT <2mA / 240VAC OVERLOAD WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC (Note 7) EMC EMISSION NOTE TPTC004 RQ-65D OUTPUT NUMBER OVER VOLTAGE OTHERS BS EN/EN62368-1 IEC62368-1 RQ-65C 1200ms, 30ms/115VAC at full load 14ms/115VAC at full load 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) 75% 77% 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed -25 ~ +70℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing -40 ~ +85℃, 10 ~ 95% RH ±0.03%/℃ (0 ~ 50℃)on +5V output 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 MTBF 245.5Khrs min. DIMENSION PACKING 129*98*38mm (L*W*H) 0.44Kg; 30pcs/13.2Kg/0.72CUFT MIL-HDBK-217F (25℃) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation, when multi-channel output, it is recommended that CH1 load > 10%. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load. 6. Each output can work within current range. But total output power can't exceed rated output power. 7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com) 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:RQ-65-SPEC 2021-09-15

Документация на RQ-65D

RQ-65-20210915.cdr

Дата модификации: 28.09.2021

Размер: 110.9 Кб

2 стр.

RQ-65 65W Quad Output Switching Power Supply series Features : Universal AC input / Full range Protections:Short circuit/Over load/Over voltage Cooling by free air convection LED indicator for power on 100% full load burn-in test All using 105 long life electrolytic capacitors Withstand 300VAC surge input for 5 second High operating temperature up to 70 Withstand 5G vibration test High efficiency, long life and high reliability 3 years warranty SPECIFICATION MODEL OUTPUT INPUT RQ-65B RQ-65C RQ-65D OUTPUT NUMBER CH1 CH2 CH3 CH4 CH1 CH2 CH3 CH4 CH1 CH2 CH3 DC VOLTAGE 5V 12V -5V -12V 5V 15V -5V -15V 5V 12V 24V -12V RATED CURRENT 6A 2A 0.5A 0.5A 5A 2A 0.5A 0.5A 4A 1.5A 1A 0.5A 0.2 ~ 3A 0 ~ 1A 0 ~ 1A 0.5 ~ 8A 0.2 ~ 3A 0 ~ 1A 0 ~ 1A 0.5 ~ 8A 0.2 ~ 3A 0.1 ~ 1.5A 0 ~ 1A CURRENT RANGE Note.6 0.5 ~ 8A RATED POWER Note.6 62.5W 65W CH4 68W RIPPLE & NOISE (max.) Note.2 80mVp-p 120mVp-p 80mVp-p 80mVp-p 80mVp-p 120mVp-p 80mVp-p 80mVp-p 80mVp-p 120mVp-p 180mVp-p 80mVp-p VOLTAGE ADJ. RANGE CH1: 4.75 ~ 5.5V +7,-5% VOLTAGE TOLERANCE Note.3 2.0% 5.0% 5.0% CH1: 4.75 ~ 5.5V 2.0% +8,-4% 5.0% 5.0% CH1: 4.75 ~ 5.5V 2.0% 6.0% 8.0% 5.0% LINE REGULATION Note.4 0.5% 1.5% 0.5% 0.5% 0.5% 1.5% 0.5% 0.5% 0.5% 1.5% 2.0% 0.5% LOAD REGULATION Note.5 0.5% 3.0% 1.0% 1.0% 0.5% 3.0% 1.0% 1.0% 0.5% 3.0% 4.0% 1.0% SETUP, RISE TIME 500ms, 20ms/230VAC HOLD TIME (Typ.) 60ms/230VAC VOLTAGE RANGE 88 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY(Typ.) 76% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 2A/115VAC 1.2A/230VAC COLD START 40A/230VAC LEAKAGE CURRENT <2mA / 240VAC OVER LOAD 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed CH1: 5.75 ~ 6.75V PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE 1200ms, 30ms/115VAC at full load 14ms/115VAC at full load 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) 76% 78% Protection type : Hiccup mode, recovers automatically after fault condition is removed -25 ~ +70 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -40 ~ +85 , 10 ~ 95% RH 0.03%/ (0 ~ 50 )on +5V output 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes UL60950-1, TUV EN60950-1 Approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC SAFETY & ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC EMC EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B (Note 7) OTHERS NOTE HARMONIC CURRENT Compliance to EN61000-3-2,-3 EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61000-6-2 (EN50082-2) heavy industry level, criteria A MTBF 245.5Khrs min. MIL-HDBK-217F (25 129*98*38mm (L*W*H) 0.44Kg; 30pcs/13.2Kg/0.72CUFT DIMENSION PACKING ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load. 6. Each output can work within current range. But total output power can't exceed rated output power. 7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. File Name:RQ-65-SPEC 2005-09-13

Документация на серию RQ-65

RQ-65.cdr

Дата модификации: 01.10.2005

Размер: 238.5 Кб

2 стр.

найти RQ-65.pdf

Товары серии RQ-65

Наименование	i	Упаковка	Выход	КПД
RQ-65B (MW)		1 шт
RQ-65C (MW)		1 шт
RQ-65D (MW)		1 шт
