Серия AC-DC сетевых преобразователей SCP-1K2

Общие характеристики

	Раздел	AC-DC сетевые преобразователи
	Тип стабилизации
	Вход
	Конструктивное исполнение
	Возможности: ККМ, регулируемый, дистанционное Вкл/Выкл, компенсация на проводах, параллельное включение, сигнал DC OK
	Типы защиты	КЗ, перегрузка, перенапряжение, перегрев
	Количество выходов
	Тип управления выходом	потенциометр внутренний, напряжение внешнее
	Исполнение
	Входное напряжение AC
	Входное напряжение DC
	Коэффициент мощности
	Напряжение изоляции вход-выход
	Напряжение изоляции вход-земля
	Напряжение изоляции выход-земля
	Применение

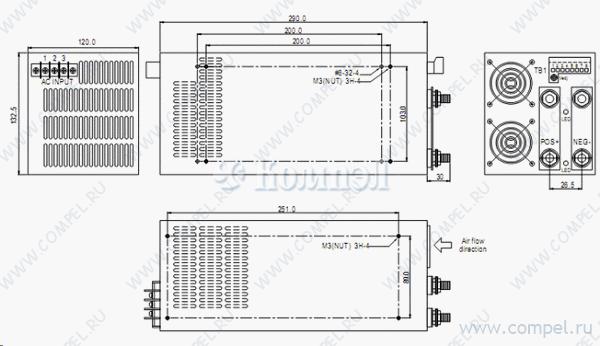

	Размер	291×120×132 мм
	Рабочая температура

Документация на серию SCP-1K2

SCP-1K2 900~1200W Parallel Type With PFC Function series Features : AC 180~260VAC input PF>0.98@ 230VAC Protections: Short circuit/ Overload/ Over voltage/ Over temperature Built in remote sense function Built-in remote ON-OFF control Power good signal With parallel function(N+1) Can adjust from 20~100% output voltage by external control 1-5V Forced air cooling by built-in DC fan 3 years warranty SPECIFICATION ORDER NO. OUTPUT SCP-1K2-05 SCP-1K2-09 SCP-1K2-12 SCP-1K2-15 SCP-1K2-18 SCP-1K2-24 SCP-1K2-36 SCP-1K2-48 SCP-1K2-60 SAFETY MODEL NO. 1K2S-P005 1K2S-P009 1K2S-P012 1K2S-P015 1K2S-P018 1K2S-P024 1K2S-P036 1K2S-P048 1K2S-P060 DC VOLTAGE 5V 9V 12V 15V 18V 24V 36V 48V 60V RATED CURRENT 200A 133A 100A 80A 66.6A 50A 33.3A 24A 20A CURRENT RANGE 0 ~ 200A 0 ~ 133A 0 ~ 100A 0 ~ 80A 0 ~ 66.6A 0 ~ 50A 0 ~ 33.3A 0 ~ 24A 0 ~ 20A RATED POWER 1000W 1200W 1200W 1200W 1200W 1200W 1200W 1152W 1200W 100mVp-p 120mVp-p 150mVp-p 180mVp-p 240mVp-p 360mVp-p 480mVp-p 500mVp-p RIPPLE & NOISE (max.) Note.2 100mVp-p VOLTAGE ADJ. RANGE 3.0% Typical adjustment by potentiometer 20%~100% adjustment by 1~5VDC external control 1.5% 1.0% 1.0% 1.0% 1.0% 1.0% VOLTAGE TOLERANCE Note.3 2.0% INPUT 1.0% 1.0% LINE REGULATION 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% LOAD REGULATION 1.5% 1.0% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% SETUP, RISE, HOLD TIME 500ms, 50ms, 16ms at full load VOLTAGE RANGE 180 ~ 260VAC FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR >0.98 / 230VAC 260 ~ 370VDC see the derating curve 82% EFFICIENCY (Typ.) 80% AC CURRENT INRUSH CURRENT (max.) 10A / 230VAC 60A / 230VAC LEAKAGE CURRENT (max.) 3.5mA / 240VAC OVER LOAD 84% 85% 86% 89% 89% 90% 90% 105 ~ 140% rated output power Note. 4 Protection type : Current limiting, delay shut down o/p voltage, re-power on to recover PROTECTION OVER VOLTAGE OVER TEMPERATURE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY 110 ~ 135% Follow to output set up point Protection type : Shut down o/p voltage, re-power on to recover >100 / measure by heat sink, near transformer Protection type : Shut down o/p voltage, recovers automatically after temperature goes down -20 ~ +65 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -20 ~ +85 , 10 ~ 95% RH TEMP. COEFFICIENT VIBRATION 0.04% / (0 ~ 50 ) 10 ~ 200Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes SAFETY STANDARDS WITHSTAND VOLTAGE UL60950, TUV EN60950-1 Approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC SAFETY & ISOLATION RESISTANCE I/P-O/P, I/P-FG, OP/FG:100M Ohms / 500VDC EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) class A EMC (Note. 5) Compliance to EN61000-3-2,3 HARMONIC CURRENT EMS IMMUNITY POWER GOOD SIGNAL OTHERS NOTE Compliance to EN61000-4-2,3,4,5,6,8,11, Light industry level, criteria A Open collector of NPN transistor SPECIAL FUNCTION DC Voltage Adj., remote sensing, remote control, parallel operation(refer to control terminal instruction manual) COOLING MTBF By fan, >20% load or >50 fan on 37.4K hrs min. MIL-HDBK-217F(25 DIMENSION 290*120*132mm (L*W*H) PACKING 4.5kg; 4pcs /19kg /CARTON ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Current limiting 3 times(1.5s,3.0s,5.0s)Then intelligent auto recovery before shut down 5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. File Name: SCP-1K2-SPEC 2006-03-28  PDF

Документация на серию SCP-1K2

\\Fileserver-s\doc-control\do

Дата модификации: 27.07.2006

Размер: 359.5 Кб

3 стр.

• найти SCP-1K2.pdf

Товары серии SCP-1K2

Наименование	i	Упаковка	P вых	Выход	U1	I1	КПД	Шум
SCP-1K2-05 (MW)		1 шт
SCP-1K2-12 (MW)		1 шт
