Серия изоляторов цифровых сигналов NSD1624

Novosense

Общие характеристики

 Раздел Изоляторы цифровых сигналов
Кол-во передатчиков
Кол-во приемников
Максимальная задержка сигнала
Диапазон напряжений питания
Рабочая температура

Документация на серию NSD1624

NSD1624 High Reliability, Half Bridge Gate Driver Datasheet (EN) 0.4 Product Overview Applications NSD1624 is a high voltage, high side-low side gate driver having capability to deliver 4A source and sink current to drive power MOSFETs or IGBTs.  Half-bridge, full-bridge and LLC converters. The high side section is designed to endure a DC voltage over 1200V with innovative and proven isolation technology. NSD1624 offers best in class propagation delay, low quiescent current, high negative and dv/dt immunity on SW pin.  Solar inverters, Motor controls and EV charges Both high side and low side driver section work from 10V to 20V supply voltages having independent under voltage lockout (UVLO) protection. NSD1624 has two independent input pins (HIN and LIN) which are compatible for TTL and CMOS logic. NSD1624 is available in LGA10, SOP8, and SOP14 package with operating temperature range from  High density switching power supplies for Server, Telecom and Industrial Device Information Part Number NSD1624-DLAJR Package LGA10 Body Size 4.0 mm × 4.0 mm NSD1624-DSPKR SOP14(150mil) 8.6 mm × 3.9 mm NSD1624-DSPR SOP8(150mil) 4.9 mm × 3.9 mm Functional Block Diagram -40°C to 125°C. Key Features  High voltage range: Up to 1200V(SOP14)/700V(SOP8)  Less than 35ns Propagation Delay  Less than 7ns Delay Matching NSD1624 Block Diagram  4 A Source / 6A Sink Currents  High Negative and Transient Immunity up to 150V/ns on SW pin  Gate Drive Supply Voltage from 10V to 17V  TTL and CMOS Compatible Input Logic  UVLO Protection for High-side and Low-side Drivers  Separated Grounds for Logic (SGND) and Driver in SOP14 package  High and Low Voltage Pins Separated for Maximum Creepage and Clearance in SOP14 package Copyright © 2021, NOVOSENSE Page 1 PDF
Документация на NSD1624-DSPR

Дата модификации: 09.07.2021

Размер: 1.34 Мб

18 стр.

    Товары серии NSD1624

    Наименование i Упаковка Корпус

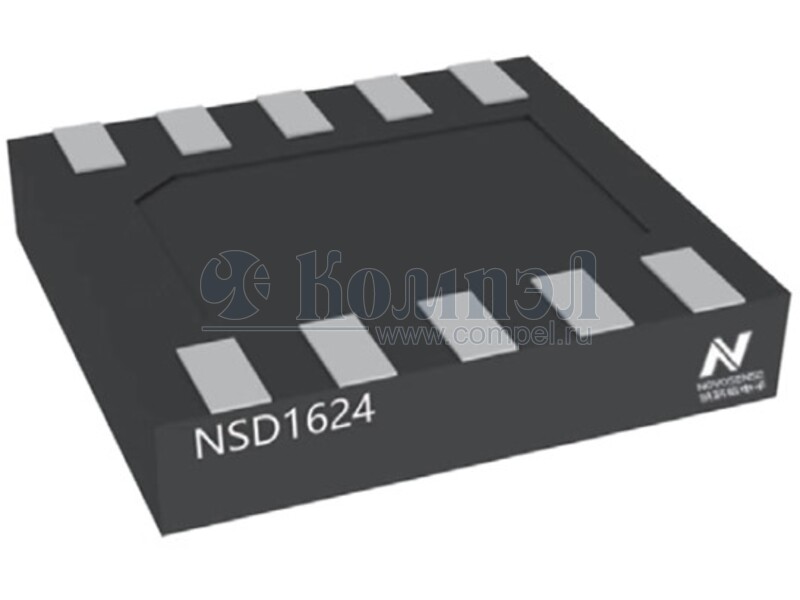

    NSD1624-DLAJR (NOVOSENS)

    		LGA10

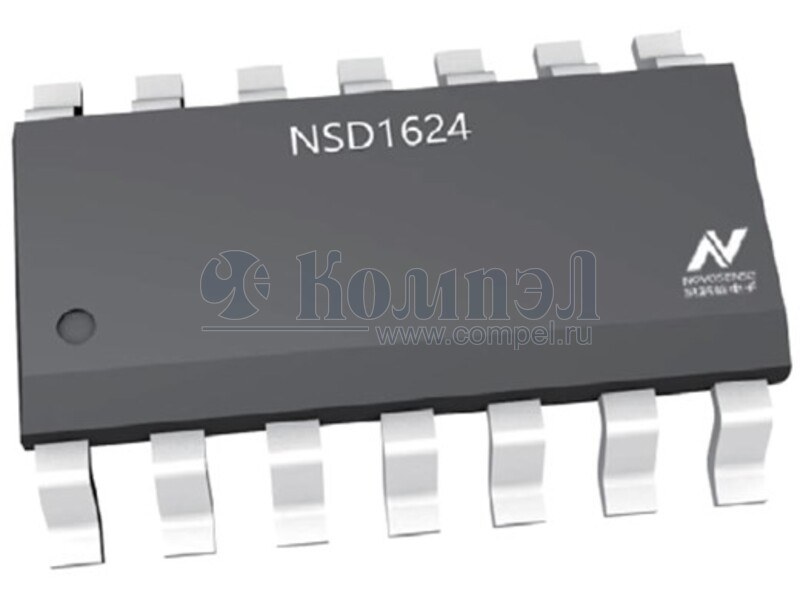

    NSD1624-DSPKR (NOVOSENS)

    		1 шт SO-14 SOIC14

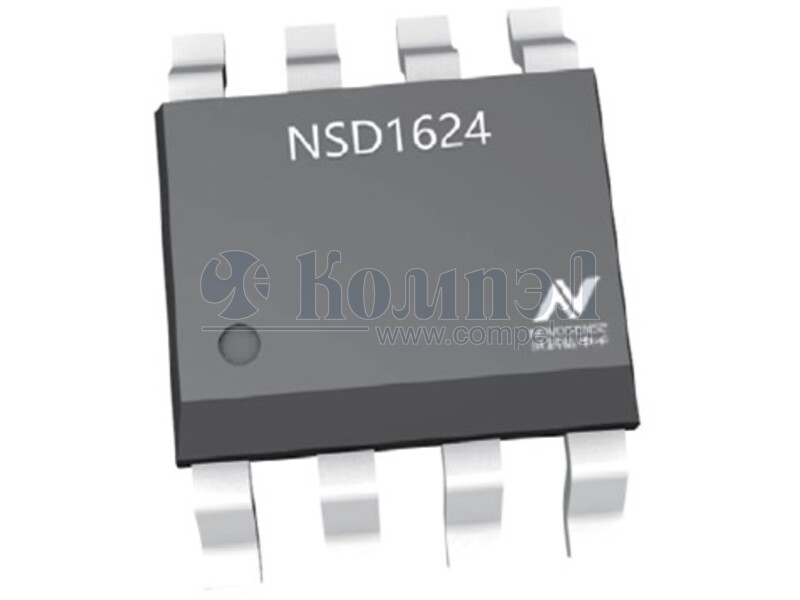

    NSD1624-DSPR (NOVOSENS)

    		1 шт SO-8 SOIC8
    NSD1624-Q1SPKR (NOVOSENS)

    		—
    NSD1624-Q1SPR (NOVOSENS)

    		—
