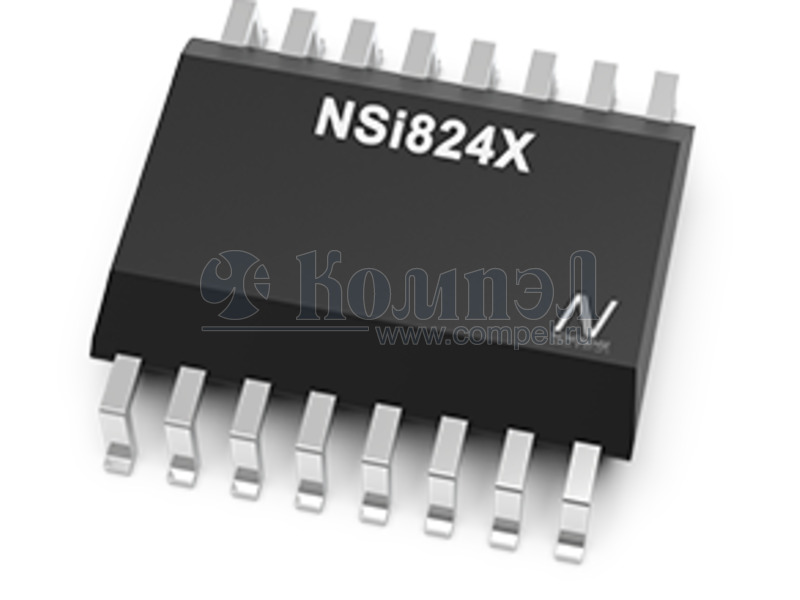

Серия изоляторов цифровых сигналов NSI8240C

Novosense

Общие характеристики

 Раздел Изоляторы цифровых сигналов
Напряжение изоляции RMS
Кол-во передатчиков
Кол-во приемников
Скорость передачи данных
Максимальная задержка сигнала
Диапазон напряжений питания
Рабочая температура

Документация на серию NSI8240C

NSI824xC High Reliability Reinforced Quad-Channel Digital Isolators Datasheet (EN) 1.0 Product Overview The NSi824xC devices are high reliability quad-channel digital isolators. The NSi824xC device is safety certified by UL1577 support 5kV insulations withstand voltage, while providing high electromagnetic immunity and low emissions at low power consumption. The data rate of the NSi824xC is up to 100Mbps, and the common-mode transient immunity (CMTI) is up to 150kV/us. The NSi824xC device provides digital channel direction configuration and the default output level configuration when the input power is lost. Wide supply voltage of the NSi824xC device supports to connect with most digital interface directly, easy to do the level shift. High system level EMC performance enhance reliability and stability of use. AECQ100 (Grade 1) option is provided for all devices. Key Features            Up to 5000Vrms Insulation voltage Date rate: DC to 100Mbps Power supply voltage: 2.5V to 5.5V AEC-Q100 Grade 1 available for all devices High CMTI: 150kV/us Chip level ESD: HBM: ±8kV Robust Electromagnetic Compatibility (EMC) – System-Level ESD, EFT, and Surge Immunity – Low Emissions Default output high level or low-level option Isolation barrier life: >60 years Low power consumption: 1.5mA/ch (1 Mbps) Low propagation delay: <15ns  Operation temperature: -40℃~125℃  RoHS-compliant packages: – SOP16(300mil) Copyright © 2021, NOVOSENSE Safety Regulatory Approvals  UL recognition: up to 5000Vrms for 1 minute per UL1577  CQC certification per GB4943.1-2011  CSA component notice 5A  DIN VDE V 0884-11:2017-01 Applications  Industrial automation system  Isolated SPI, RS232, RS485  General-purpose multichannel isolation  Motor control Device Information Part Number NSI824xC-DSWR Package SOP16(300mil) Body Size 10.30mm × 7.50mm Functional Block Diagrams VDD1 1 16 VDD2 VDD1 1 16 VDD2 VDD1 1 16 VDD2 GND1 2 15 GND2 GND1 2 15 GND2 GND1 2 15 GND2 INA 3 14 OUTA INA 3 14 OUTA INA 3 14 OUTA INB 4 13 OUTB INB 4 13 OUTB INB 4 13 OUTB INC 5 12 OUTC INC 5 12 OUTC OUTC 5 IND 6 11 OUTD OUTD 6 11 IND OUTD 6 11 IND EN1 7 10 EN2 EN1 7 10 EN2 10 EN2 NC 7 GND1 8 NSi8240 9 GND2 GND1 8 NSi8241 9 GND2 GND1 8 12 INC NSi8242 Figure 1. NSi824xC Block Diagram Page 1 9 GND2 PDF
Документация на NSI8240C1-DSWR

Дата модификации: 11.01.2022

Размер: 1.14 Мб

24 стр.

    Товары серии NSI8240C

    Наименование i Упаковка
    NSI8240C0-DSWR (NOVOSENS)


    NSI8240C1-DSWR (NOVOSENS)

    		в ленте 1000 шт
