Серия кнопок без фиксации B3F

Omron Co. - Electronic Components

Общие характеристики

	Раздел	Кнопки без фиксации
	Электрическая цепь контактной группы
	Максимальный рабочий ток
	Максимальное рабочее напряжение
	Особенности
	Тип монтажа

Документация на серию B3F

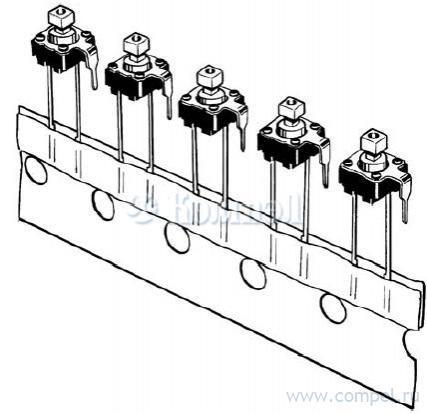

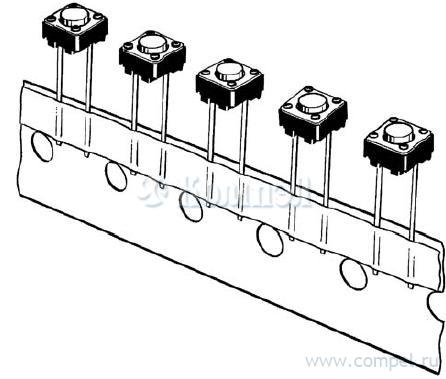

Tactile Switch B3F A Wide Range of Models: 6 × 6 mm, 12 × 12 mm, Side-operated, High-force, and Gold-plated. • Extended mechanical/electrical durability: 10 x 106 operations for 12 x 12 mm type and 1 x 106 operations for the 6 x 6 mm type • Taped radial type, vertical type and high force types are available. • Gold plated models available for increased contact reliability, resistance to corrosive gas and insulation failure prevention for ion migration in harsh environments • Type B32 Key Tops are available for projected plunger models. RoHS Compliant ■ List of Models 6 × 6 mm Models Type Standard Plunger Flat type Height 4.3 mm Plunger color Bags (in units of 100 Switches) Without ground terminal With ground terminal 0.98 N {100 gf} lvory B3F-1000 B3F-1100 1.47 N {150 gf} Yellow B3F-1002 B3F-1102 2.55 N {260 gf} Orange B3F-1005 B3F-1105 4.9 N {500 gf} Red B3F-1006 --- 0.98 N {100 gf} Black B3F-1020 B3F-1120 1.47 N {150 gf} Gray B3F-1022 B3F-1122 2.55 N {260 gf} Pink B3F-1025 B3F-1125 4.9 N {500 gf} Blue B3F-1026 --- 5.0 mm (7.5-mm pitch) 0.98 N {100 gf} Black --- B3F-1110 7.0 mm 0.98 N {100 gf} Black B3F-1060 --- 1.47 N {150 gf} Yellow B3F-1062 --- 0.98 N {100 gf} Black B3F-1070 --- 1.47 N {150 gf} Yellow B3F-1072 --- 2.55 N {260 gf} Orange B3F-1075 --- 0.98 N {100 gf} lvory B3F-1050 B3F-1150 1.47 N {150 gf} Yellow B3F-1052 B3F-1152 2.55 N {260 gf} Orange B3F-1055 B3F-1155 4.9 N {500 gf} Red B3F-1056 --- (B3F-1000) 5.0 mm 9.5 mm Projected type Operating force (OF) 7.3 mm 1
