Серия кнопок без фиксации B3U

Omron

Общие характеристики

	Раздел	Кнопки без фиксации
	Электрическая цепь контактной группы
	Максимальный рабочий ток
	Максимальное рабочее напряжение
	Тип монтажа

Документация на серию B3U

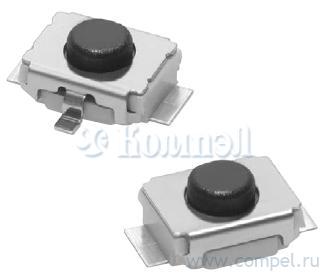

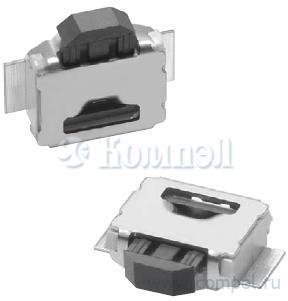

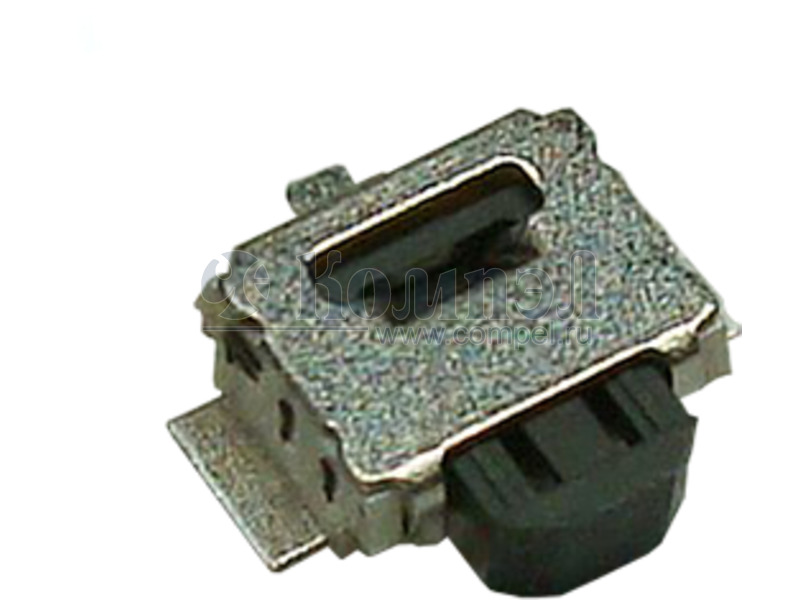

Ultra-small Tactile Switch (SMT) B3U Ultra-small-sized Tactile Switch with High Contact Reliability: 1.2 × 3 × 2.5 mm (H × W × D) • Compact switch allows high-density mounting on PCBs for mobile equipment. • Dust-proof construction provides high reliability in dusty environments. • Surface mounted: Ideal for high-density mounting. • Models with ground terminals are available for protection against static electricity. RoHS Compliant ■ List of Models Embossed taping (standard quantity) Operation type Locating pin Plunger color Top-actuated Without boss Black Sideactuated Note: ■ Without ground terminal With ground terminal B3U-1000P B3U-1100P With boss B3U-1000P-B B3U-1100P-B Without boss B3U-3000P B3U-3100P With boss B3U-3000P-B B3U-3100P-B 3,500 Without ground terminal B3U-1000PM With ground terminal B3U-1100PM Quantity 1,000 B3U-1000PM-B B3U-1100PM-B 4,000 B3U-3000PM B3U-3100PM 1,000 B3U-3000PM-B B3U-3100PM-B Orders must be made in multiples of the order unit specified above. Ratings/Characteristics Item Embossed taping (small quantity) Quantity per reel Operation type ■ Top-actuated (B3U-1000 Series) Side-actuated (B3U-3000 Series) Operating Characteristics Operation type Item Top-actuated (B3U-1000 Series) Ratings 1 to 50 mA, 5 to 12 VDC (resistive load) Operating force (OF) Ambient operating temperature -25°C to +70°C at 60%RH max. (with no icing or condensation) 1.50 ± 0.49 N {153 ± 50 gf} Releasing force (RF) 0.2 N min. {20 gf} Ambient operating humidity 35% to 85% (at +5 to +35°C) Pretravel (PT) 0.15 +0.2 −0.1 mm Contact form SPST-NO Contact resistance 100 mΩ max. (initial value) (rated: 1 mA, 5 VDC) Insulation resistance 100 MΩ min. (at 100 VDC) Side-actuated (B3U-3000 Series) 1.59 ± 0.49 N {162 ± 50 gf} 0.2 +0.2 −0.1 mm Dielectric strength 250 VAC, 50/60 Hz for 1 min Bounce time 5 ms max. Vibration resistance 10 to 55 Hz, 1.5 mm double amplitude Shock resistance 1,000 m/s2 max. Durability 200,000 operations min. Maximum operating force 30 N max. Weight Approx. 0.022 g 100,000 operations min. 1

PDF

Документация на серию B3U

B3U

Дата модификации: 24.07.2012

Размер: 312 Кб

4 стр.

найти B3U.pdf
