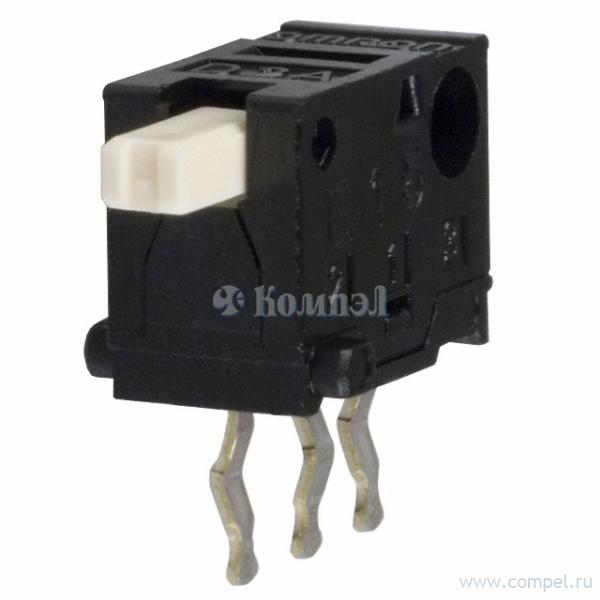

Серия переключателей D2A

Omron

Общие характеристики

	Раздел	Переключатели
	Тип компонента
	Тип переключателя
	Цепь переключателя
	Тип монтажа
	Стиль актуатора
	Нагрузочная способность контактов

Документация на серию D2A

D2A Ultra Subminiature Detection Switch Ultra Subminiature Detection Switch with Slide Mechanism and Pushbutton Actuator D 2 A ● Compact, light weight, and 3 mm long stroke. ● Built-in slide mechanism allows selection of shorting or non-shorting switching timing of the switch. RoHS Compliant Model Number Legend Contact form ●SPDT 20 1 1@ D2A-@ 1. Switching timing 1: Non-shorting Model 2: Shorting Model 2. Maximum Operating Force (OF) 1: 0.98 N {100 gf} 2: 0.49 N {50 gf} NO COM NC 3 Contact Pin plunger D2A-1110 D2A-2110 Ratings Shorting Model D2A-1120 D2A-2120 Specification Slide Material Silver plated Minimum applicable load (reference value) * 0.49N (low operating force) Non-shorting Model 2 Contact specifications List of models Operating Force (OF) 0.98N (standard) Switching timing Non-shorting Model Shorting Model Actuator 1 * 5 VDC 1mA Please refer to the "■Using Micro Loads" in "●Precautions" for more information on the minimum applicable load. Characteristics Rated voltage Resistive load 30 VDC 0.1 A Note. The ratings values apply under the following test conditions. (1) Ambient temperature: 20±2°C (2) Ambient humidity: 65±5% (3) Operating frequency: 30 operations/min Permissible operating speed Permissible operating frequency Mechanical Electrical Insulation resistance Vibration resistance *1 Shock resistance 30 operations/min 50 mΩ max. Between terminals of the same polarity 250 VAC 50/60 Hz 1 min Between current-carrying metal parts and ground 250 VAC 50/60 Hz 1 min Malfunction Durability Malfunction *1 Durability *2 Degree of protection Ambient operating temperature Ambient operating humidity Weight 200 operations/min 100 MΩ min. (at 250 VDC with insulation tester) Contact resistance (initial value) Dielectric strength 1 mm to 500 mm/s between 10 to 55 Hz, 1.5 mm-double amplitude 1,000 m/s2 {approx. 100G} max. 300 m/s2 {approx. 30G} max. 50,000 operations min. (30 operations/min) IEC IP00 -10°C to +80°C (at ambient humidity 60% max.) (with no icing or condensation) 85% max. (for +5°C to +35°C) Approx. 0.3 g Note.The data given above are initial values. *1. The values are at Free Position and Total Travel Position. Close or open circuit of contact is 1ms max. *2. For testing conditions, consult your OMRON sales representative. 1

Документация на серию D2A

D2A

Дата модификации: 23.07.2012

Размер: 471.5 Кб

3 стр.

найти D2A.pdf

Товары серии D2A

Наименование	i	Упаковка
D2A-1110 (OMRON)
D2A-1120 (OMRON)
D2A-2110 (OMRON)
D2A-2120 (OMRON)
D2A1110 (OMRON)
D2A1120 (OMRON)		1 шт
D2A2110 (OMRON)
D2A2120 (OMRON)
