Серия переключателей D2MC

Общие характеристики

	Раздел	Переключатели
	Тип компонента
	Тип переключателя
	Цепь переключателя
	Тип монтажа
	Стиль актуатора

Документация на серию D2MC

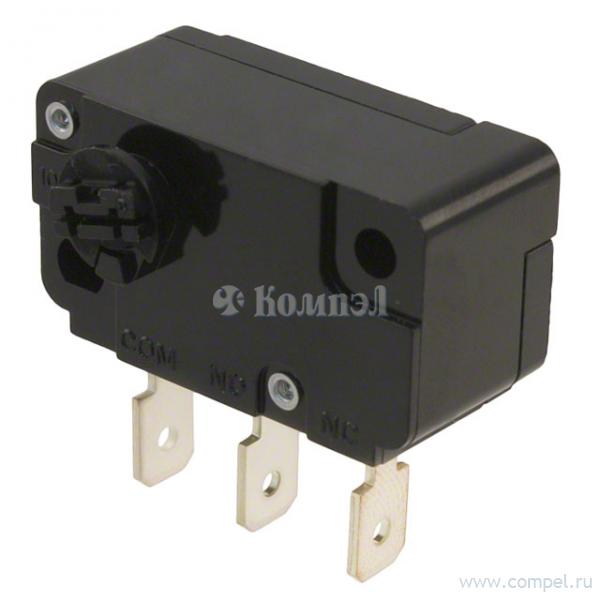

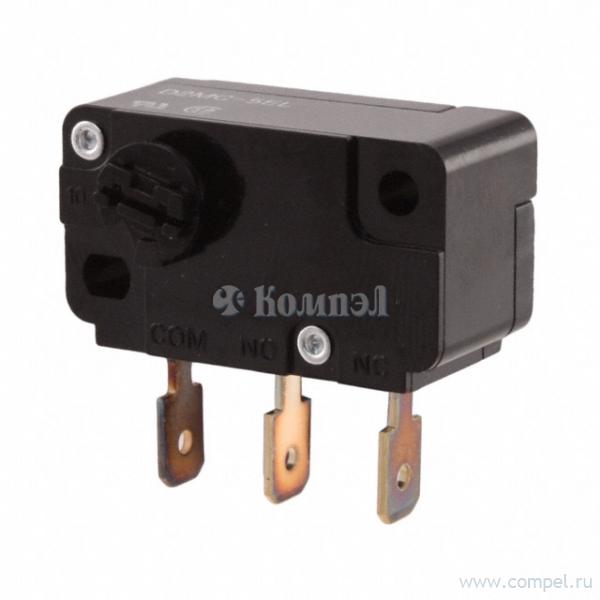

D2MC Low-Torque Basic Switch Highly Reliable Rotary-action Switch for Low Torque Operation (0.5 mN·m ) ● 0.5A rated model employs crossbar gold-alloy D 2 M C contacts for excellent contact reliability in the micro load range. ● Long durability (10,000,000 mechanical operations min.) through use of a movable coil spring. RoHS Compliant Model Number Legend Ratings 1 @ 2 @ 3 D2MC - @ Item Model 1. Ratings 5: 250 VAC 5A 01: 30 VDC 0.5A Rated voltage D2MC-5 models D2MC-01 models 2. Maximum Operating Torque (OTq) E: 0.5 m N·m {5.1 gf·cm} F: 0.75 m N·m {7.6 gf·cm} H: 1.00 m N·m {10.2 gf·cm} 3. Direction of Actuator None : Clockwise L : Counterclockwise 5A 5A 125 VAC 0.5A 30 VDC 0.5A Note. The above rating values apply under the following test conditions. (1) Ambient temperature: 20±2°C (2) Ambient humidity: 65±5% (3) Operating frequency: 30 operations/min Characteristics Item List of Models Permissible operating frequency 5A Model D2MC-5 models D2MC-01 models 1° to 360°/s Mechanical 240 operations/min Electrical 60 operations/min (for 0.5 m N·m) 0.5A 100 MΩ min. (at 500 VDC with insulation tester) Insulation resistance D2MC-5E D2MC-5F D2MC-5H D2MC-5EL D2MC-5FL D2MC-5HL D2MC-01E D2MC-01F D2MC-01H D2MC-01EL D2MC-01FL D2MC-01HL Note. All the models listed here are supplied without actuator lever. If an actuator lever is required, please order separately by indicating the model number of the actuator lever (CAA1M). Contact resistance (initial value) Dielectric strength 20 mΩ max. 600 VAC 50/60 Hz 1min Between current-carrying metal parts and ground 1,500 VAC 50/60 Hz 1min Between each terminal and non-current-carrying metal parts 1,500 VAC 50/60 Hz 1min 10 to 55 Hz, 1.5 mm double amplitude 1,000 m/s2 {approx. 100G} max. Durability ●SPDT Shock resistance Malfunction * 1 Mechanical COM Durability * 2 NO NC Electrical Contact Specifications Model Specification Contact Material Gap (standard value) NC Inrush current NO Min. applicable load (see note) Degree of protection D2MC-5 Rivet Silver alloy D2MC-01 Crossbar Gold alloy 15A max. 7A max. 5 VDC 160mA 0.5A max. 0.5A max. 5 VDC 1mA Models with OTq of 0.5 m N·m: 100 m/s2 {10 G} max. Models with OTq of 0.75 m N·m: 100 m/s2 {10 G} max. Models with OTq of 1.00 m N·m: 200 m/s2 {20 G} max. 10,000,000 operations min. (60 operations/min) 100,000 operations min. (30 operations/min) IEC IP40 Ambient operating temperature −25°C to +80°C (at ambient humidity of 60% max.) (with no icing or condensation) Ambient operating humidity 85% max. (for +5°C to +35°C) Weight 0.5 mm 100 mΩ max. Between terminals of the same polarity Vibration Malfunction resistance * 1 Contact Form Item 125 VAC 250 VAC Permissible operating speed Ratings Direction of Operating Torque (OTq) actuation 0.5 m N·m {5.1 gf·cm} Clockwise 0.75 m N·m {7.6 gf·cm} (CW) 1.00 m N·m {10.2 gf·cm} Counter- 0.5 m N·m {5.1 gf·cm} clockwise 0.75 m N·m {7.6 gf·cm} (CCW) 1.00 m N·m {10.2 gf·cm} Resistive load Approx. 10g Note. The data given above are initial values. *1. Close or open circuit of the contact is 1ms max. *2. For testing conditions, consult your OMRON sales representative. 1  PDF

Документация на серию D2MC

D2MC

Дата модификации: 23.07.2012

Размер: 615.4 Кб

3 стр.

• найти D2MC.pdf
