Серия переключателей D2MQ

Omron

Общие характеристики

	Раздел	Переключатели
	Тип компонента
	Тип переключателя
	Цепь переключателя
	Тип монтажа

Документация на серию D2MQ

D2MQ Subminiature Basic Switch Ultra Slim Snap-action Switch with 2.7 mm in depth ● Excellent electrical characteristics and snap action mechanism in spite of its ultra small size. ● Ideal for applications where size is extremely D 2 M Q limited and high reliability is demanded. RoHS Compliant Model Number Legend 1 @ 2 @ 3 D2MQ-1 @ 1. Actuator None : Pin plunger L : Leaf lever 3. Terminals None : PCB terminals (Straight) -TL : PCB Terminals (Left-angled) -TR : PCB Terminals (Right-angled) 2. Switching capacity None : 30 VDC 0.5A -105 : 30 VDC 50mA <Hinge lever> 1 @ 2 -1@ 3 D2MQ-@ 1. Actuator 4L: Hinge lever 3. Terminals None : PCB terminals (Straight) -L : PCB Terminals (Left-angled) -R : PCB Terminals (Right-angled) 2. Ratings None : 30 VDC 0.5A -105 : 30 VDC 50mA List of Models Ratings Terminals * 0.5 A Straight terminals 50 mA Left-angled terminals * Right angled terminals * Straight terminals Left-angled terminals * Right angled terminals * Actuator * Pin plunger D2MQ-1 D2MQ-1-TL D2MQ-1-TR D2MQ-1-105 - - Leaf lever D2MQ-1L D2MQ-1L-TL D2MQ-1L-TR D2MQ-1L-105 - - Hinge lever D2MQ-4L-1 D2MQ-4L-1-L D2MQ-4L-1-R D2MQ-4L-105-1 D2MQ-4L-105-1-L D2MQ-4L-105-1-R The terminal shape drawings indicate the shape when the Switch is viewed from the direction of the arrow in the drawing below. Contact Form ●SPDT Contact Specifications Item Model 0.5 A models Specification Contact Material Silver plated Gap (standard value) COM NO NC Minimum applicable load (see note) 50 mA models Rivet Gold plated 0.15 mm 5 VDC 50 mA 5 VDC 5 mA 1

Документация на серию D2MQ

D2MQ

Дата модификации: 23.07.2012

Размер: 680.2 Кб

4 стр.

найти D2MQ.pdf

Товары серии D2MQ

Наименование	i	Упаковка	Актуатор	Нагрузка

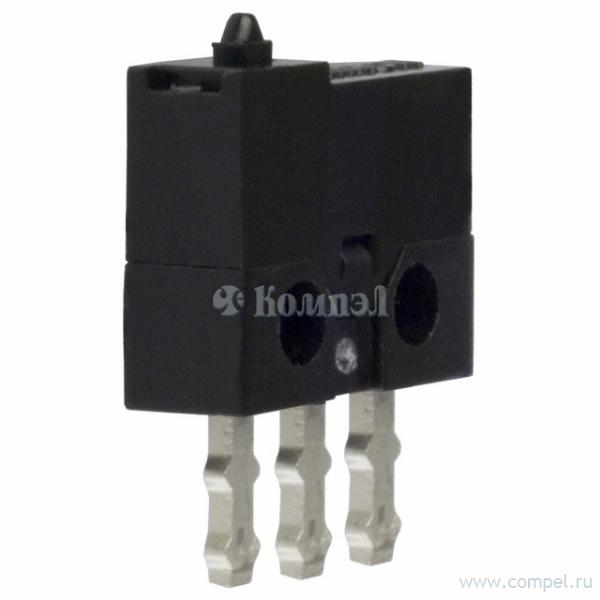

D2MQ-1 (OMRON)
D2MQ-1-105 (OMRON)
D2MQ-1-105-TR (OMRON)			—	—
D2MQ-1-TL (OMRON)

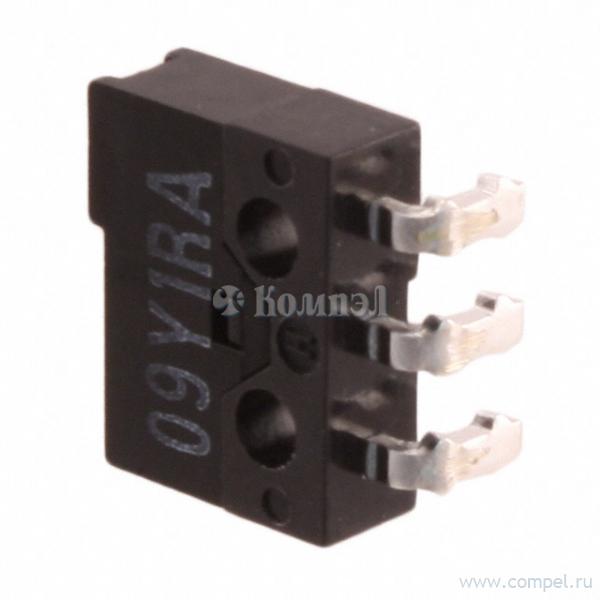

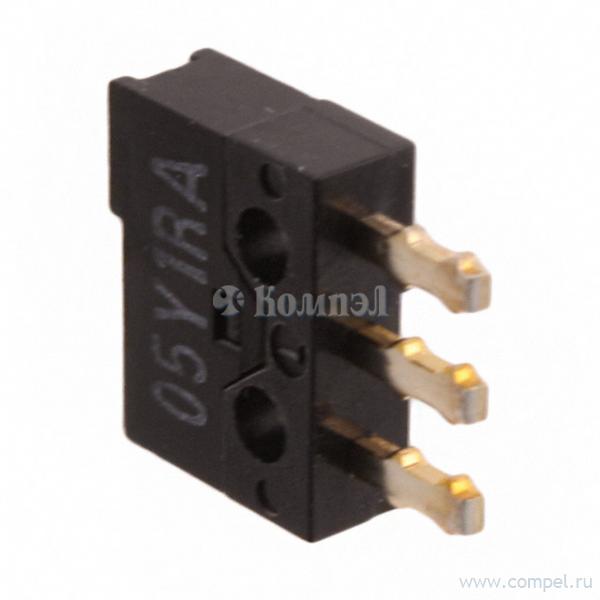

D2MQ-1-TR (OMRON)

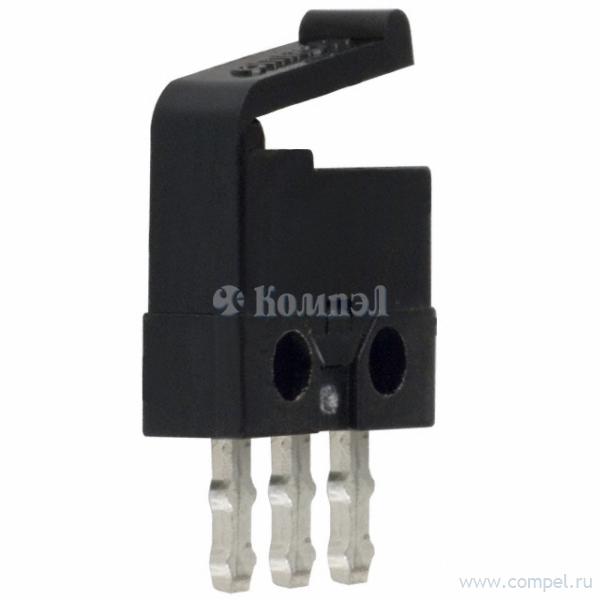

D2MQ-1L (OMRON)
D2MQ-1L-105 (OMRON)
D2MQ-1L-105-TL (OMRON)
D2MQ-1L-TL (OMRON)

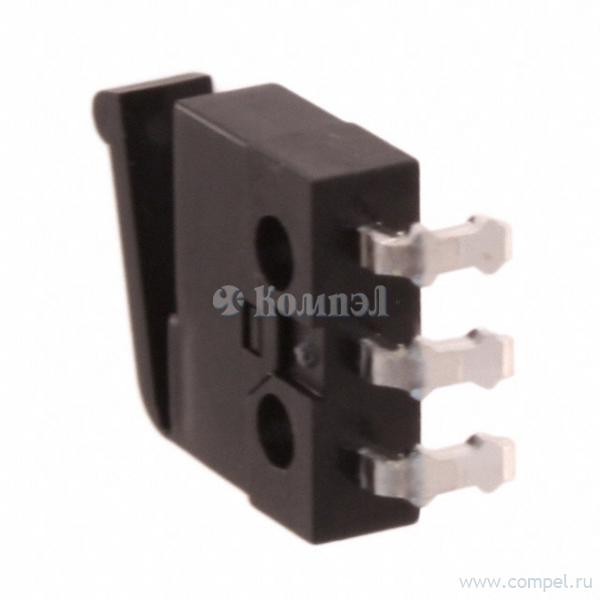

D2MQ-1L-TR (OMRON)		1 шт

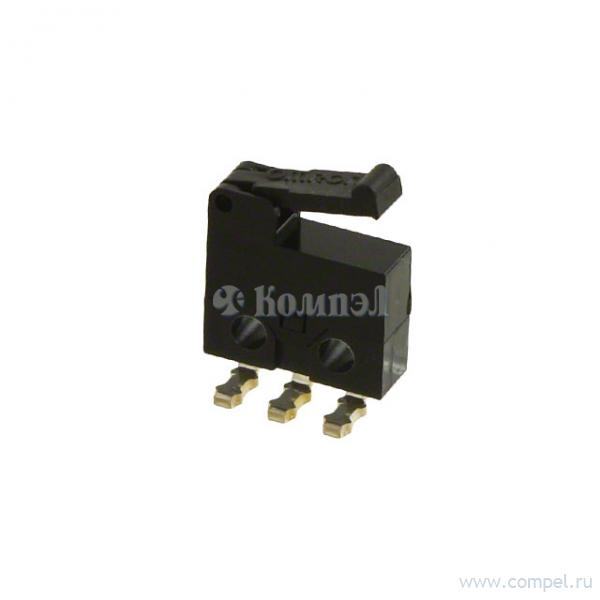

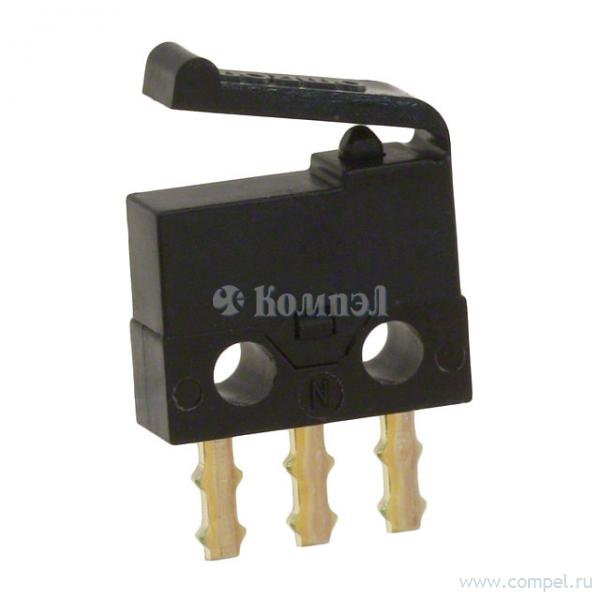

D2MQ-4L-1 (OMRON)		1 шт
D2MQ-4L-1-L (OMRON)		25 шт
D2MQ-4L-1-R (OMRON)
D2MQ-4L-105-1 (OMRON)
D2MQ-4L-105-1-L (OMRON)
D2MQ1 (OMRON)		1 шт
D2MQ1105 (OMRON)		1000 шт
D2MQ1105TR (OMRON)		1000 шт	—	—
D2MQ1L (OMRON)		1 шт
D2MQ1L105 (OMRON)		1 шт
D2MQ1L105TL (OMRON)		1000 шт
D2MQ1LTL (OMRON)		1 шт
D2MQ1LTR (OMRON)		1000 шт
D2MQ1TL (OMRON)		1 шт
D2MQ1TR (OMRON)		1000 шт
D2MQ4L1 (OMRON)		1000 шт
D2MQ4L1051 (OMRON)		1000 шт
D2MQ4L1051L (OMRON)		1000 шт
D2MQ4L1L (OMRON)		1000 шт
D2MQ4L1R (OMRON)		1000 шт
