Серия переключателей D2RV

Omron

Общие характеристики

	Раздел	Переключатели
	Тип компонента
	Тип переключателя
	Цепь переключателя
	Тип монтажа
	Нагрузочная способность контактов

Документация на серию D2RV

D2RV Miniature Basic Switch High Reliability for Micro Load Applications, Even in Adverse Atmospheres (Dust, High Humidity, Silicon Gas, etc.) D 2 R V ● The reed switch offers exceptional contact reliability in micro load applications. ● Same mounting pitch as for the V Miniature Basic Switch. ● High durability with a bounce time of 1 ms max. RoHS Compliant Model Number Legend Contact Form 1 @ 2 D2RV- @ ●SPST-NO Reed switch 1. Actuator None : Pin plunger model L11 : Short hinge lever L : Hinge lever L13 : Simulated roller lever L22 : Short hinge roller lever L2 : Hinge roller lever 2. Maximum Operating Force (OF) None : 0.49 N {50 gf} E G : 0.25 N {25 gf} (for pin plungers only) : 0.98 N {100 gf} NO COM Ratings Switching voltage 100 VDC (max.) Switching current 0.25 ADC (max.) Contact capacity 10 WDC (max.) Note. The above rating values apply under the following test conditions. (1) Ambient temperature: 20±2°C (2) Ambient humidity: 65±5% (3) Operating frequency: 30 operations/min Characteristics Note. These values are for the pin plunger models. List of Models Actuator Pin plunger Maximum Operating Force (OF) Model D2RV-E 0.49 N {50 gf} D2RV 0.98 N {100 gf} D2RV-G Short hinge lever 0.49 N {50 gf} D2RV-L11 0.98 N {100 gf} D2RV-L11G Hinge lever 0.25 N {25 gf} D2RV-L 0.49 N {50 gf} D2RV-LG 0.25 N {25 gf} D2RV-L13 0.49 N {50 gf} D2RV-L13G 0.49 N {50 gf} D2RV-L22 0.98 N {100 gf} D2RV-L22G Short hinge roller lever Hinge roller lever 0.1mm to 1 m/s (for pin plunger models) Permissible operating frequency Mechanical 200 operations/min Electrical 200 operations/min Insulation resistance 100 MΩ min. (at 500 VDC with insulation tester) Contact resistance (initial value) 0.25 N {25 gf} Simulated roller lever Permissible operating speed 0.25 N {25 gf} D2RV-L2 0.49 N {50 gf} D2RV-L2G Between terminals of the same polarity Dielectric strength * 1 Between currentcarrying metal parts and 500 VAC 50/60 Hz for 1 min ground Between each terminal and non-currentcarrying metal parts Vibration Malfunction resistance * 2 Shock resistance Durability * 3 150 mΩ max. 200 VDC 1 min 500 VAC 50/60 Hz for 1 min 10 to 55 Hz, 1.5 mm double amplitude Destruction 500 m/s2 {approx. 50G} max. Malfunction * 2 200 m/s2 {approx. 20G} max. Mechanical 10,000,000 operations min. (60 operations/min) Electrical 3,000,000 operations min. (30 operations/min) Degree of protection IEC IP40 Ambient operating temperature –10°C to +60°C (at ambient humidity of 60% max.) (with no icing or condensation) Ambient operating humidity 80% max. (for +5°C to +35°C) Weight Approx. 7g (for pin plunger models) Note. The data given above are initial values. *1. The values for dielectric strength shown are for models with a Separator (refer to "Basic Switch Common Accessories"). *2. For the pin plunger models, the above values apply for use at the free position and total travel position. For the lever models, they apply at the total travel position. Close or open circuit of the contact is 1ms max. *3. For testing conditions, consult your OMRON sales representative. Separator (Sold Separately), Actuator (Sold Separately), Terminal Connector (Sold Separately) Refer to "Basic Switch Common Accessories" 1

Документация на серию D2RV

D2RV

Дата модификации: 23.07.2012

Размер: 684.1 Кб

4 стр.

найти D2RV.pdf

Товары серии D2RV

Наименование	i	Упаковка	Актуатор
D2RV-E (OMRON)		1 шт
D2RV-G (OMRON)
D2RV-L (OMRON)
D2RV-L11E (OMRON)
D2RV-L13 (OMRON)

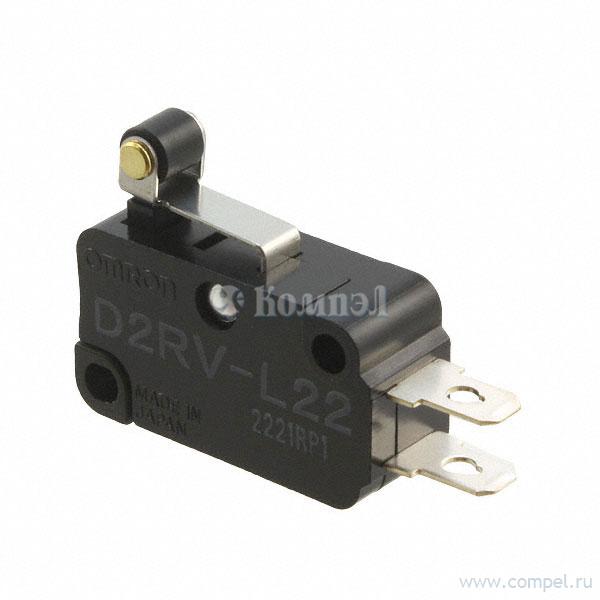

D2RV-L22 (OMRON)
D2RV-L22E (OMRON)
D2RV-L22G-1 (OMRON)
D2RV-L2G (OMRON)
D2RVE (OMRON)
D2RVG (OMRON)
D2RVL (OMRON)
D2RVL11E (OMRON)
D2RVL13 (OMRON)
D2RVL22 (OMRON)
D2RVL22E (OMRON)
D2RVL22G1 (OMRON)
D2RVL2G (OMRON)
