Серия переключателей D2SW-P

Omron

Общие характеристики

	Раздел	Переключатели
	Тип компонента
	Тип переключателя
	Цепь переключателя

Документация на серию D2SW-P

D2SW-P Sealed Subminiature Basic Switch 㧰㧞㧿㨃㧼- Sealed Basic Switch with Simplified Construction, Mounting Compatible with SS and D2SW Series. ● Rubber packing construction keeps dust off and offers temporary waterproofing protection (IEC IP67). ● Switch rating of 2 A at 250 VAC possible with a single-leaf movable spring. Models for micro loads are also available. ● Solder, quick-connect terminals (#110), PCB terminals, and molded lead wires are available. ● UL, CSA, VDE safety standard approved models are available upon request. RoHS Compliant Model Number Legend 1 D2SW-P@ 2 @ 3 @ 4 @ 1. Ratings 2 : 250 VAC 2 A 3. Contact form None : SPDT 01 : 30 VDC 0.1 A -2 : SPST-NC (Molded lead wire models only) -3 : SPST-NO (Molded lead wire models only) 2. Actuator None : Pin plunger 4. Terminals L1 : Hinge lever L2 : Hinge roller lever H : Solder terminals D : Self-clinching PCB terminals L3 : Simulated roller lever T : Quick-connect terminals (#110) M : Molded lead wires List of Models (Contact your dealer for detailed delivery date.) Ratings Actuator Terminals Pin plunger SPDT PCB terminals SPDT Molded lead wires Hinge roller lever Simulated roller lever Quick-connect terminals (#110) PCB terminals D2SW-P2H D2SW-P01H D2SW-P2T D2SW-P01T D2SW-P2D D2SW-P01D D2SW-P2M D2SW-P01M SPST-NC D2SW-P2-2M D2SW-P01-2M SPST-NO D2SW-P2-3M D2SW-P01-3M D2SW-P2L1H D2SW-P01L1H D2SW-P2L1T D2SW-P01L1T D2SW-P2L1D D2SW-P01L1D Solder terminals Hinge lever 0.1 A Contact Form Solder terminals Quick-connect terminals (#110) 2A SPDT Molded lead wires D2SW-P2L1M D2SW-P01L1M Solder terminals D2SW-P2L2H D2SW-P01L2H D2SW-P2L2T D2SW-P01L2T D2SW-P2L2D D2SW-P01L2D Quick-connect terminals (#110) PCB terminals SPDT Molded lead wires D2SW-P2L2M D2SW-P01L2M Solder terminals D2SW-P2L3H D2SW-P01L3H D2SW-P2L3T D2SW-P01L3T D2SW-P2L3D D2SW-P01L3D D2SW-P2L3M D2SW-P01L3M Quick-connect terminals (#110) PCB terminals SPDT Molded lead wires Separator (Sold Separately), Terminal Connector (Sold Separately) Refer to "Micro Switch Common Accessories" 1

Документация на серию D2SW-P

D2SW-P

Дата модификации: 23.07.2012

Размер: 659.2 Кб

6 стр.

найти D2SW-P.pdf

Товары серии D2SW-P

Наименование	i	Упаковка	Монтаж	Актуатор	Нагрузка

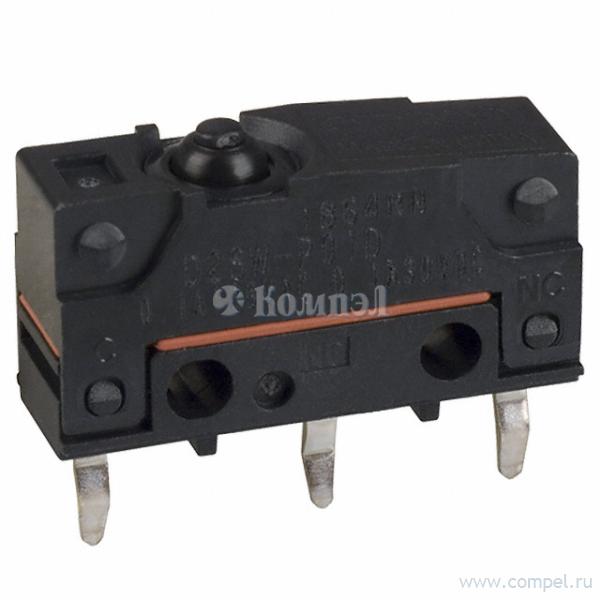

D2SW-P01D (OMRON)
D2SW-P01H (OMRON)
D2SW-P01L1H (OMRON)

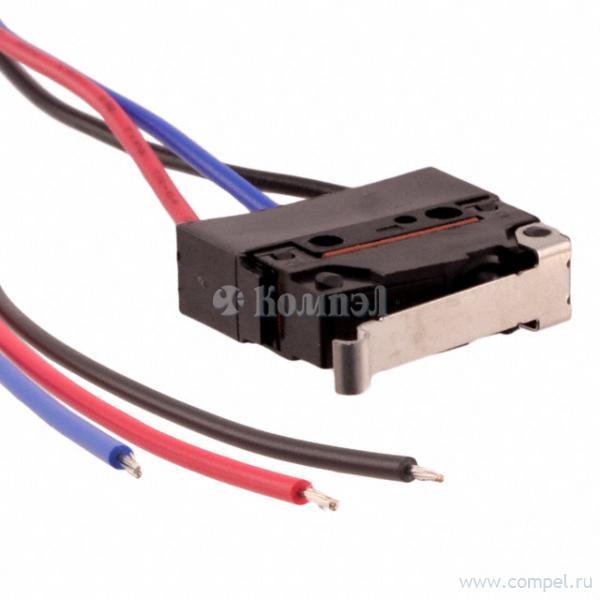

D2SW-P01L1M (OMRON)
D2SW-P01L1T (OMRON)

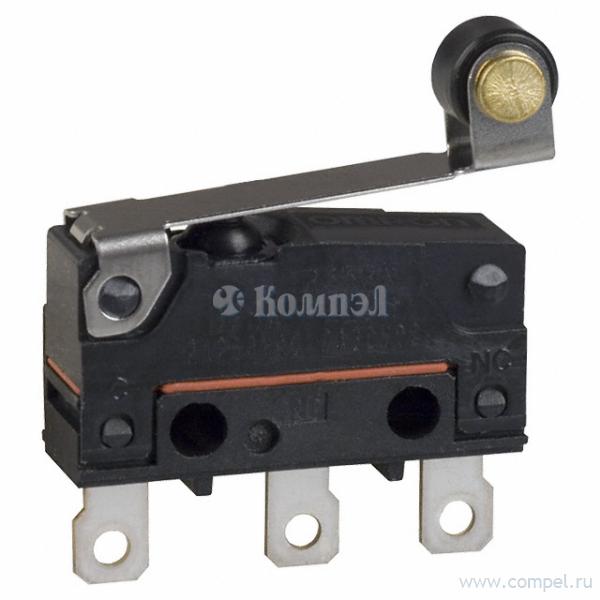

D2SW-P01L2H (OMRON)
D2SW-P01L3B (OMRON)

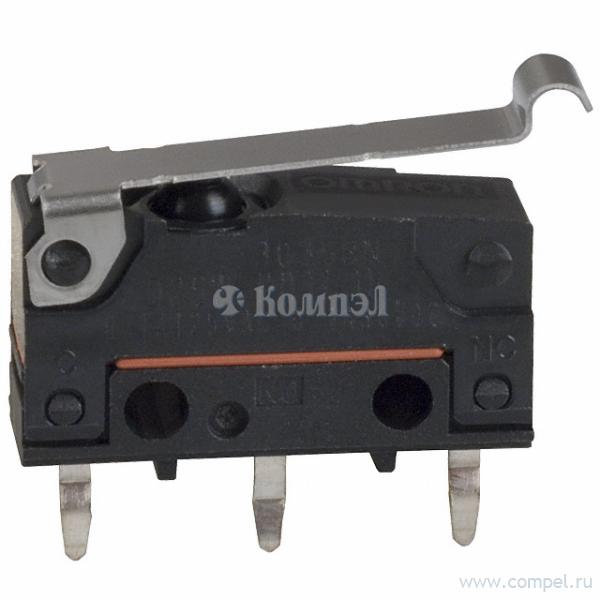

D2SW-P01L3D (OMRON)
D2SW-P01L3M (OMRON)
D2SW-P01L3T (OMRON)

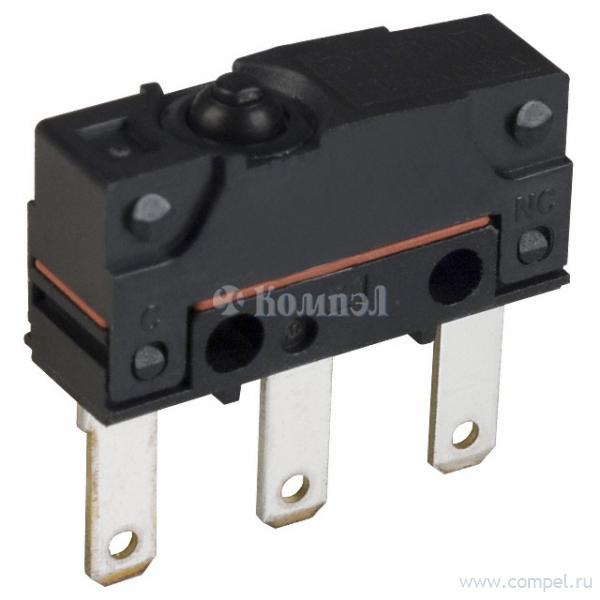

D2SW-P01T (OMRON)
D2SW-P2H (OMRON)
D2SW-P2L1H (OMRON)
D2SW-P2L1M (OMRON)
D2SW-P2L2H (OMRON)
D2SW-P2L2M (OMRON)
D2SW-P2L2T (OMRON)

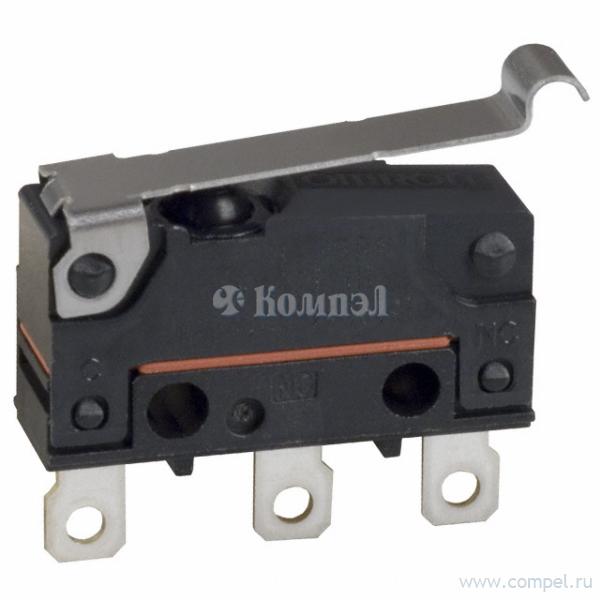

D2SW-P2L3H (OMRON)
D2SW-P2L3M (OMRON)
D2SW-P2M (OMRON)
D2SW-P2T (OMRON)
D2SWP01D (OMRON)		500 шт
D2SWP01H (OMRON)
D2SWP01L1H (OMRON)		500 шт
D2SWP01L1M (OMRON)		10 шт
D2SWP01L1T (OMRON)
D2SWP01L2H (OMRON)
D2SWP01L3B (OMRON)
D2SWP01L3D (OMRON)
D2SWP01L3M (OMRON)		10 шт
D2SWP01L3T (OMRON)		500 шт
D2SWP01T (OMRON)
D2SWP2H (OMRON)
D2SWP2L1H (OMRON)		500 шт
D2SWP2L1M (OMRON)
D2SWP2L2H (OMRON)		500 шт
D2SWP2L2M (OMRON)		10 шт
D2SWP2L2T (OMRON)		500 шт
D2SWP2L3H (OMRON)
D2SWP2L3M (OMRON)		10 шт
D2SWP2M (OMRON)		10 шт
D2SWP2T (OMRON)
