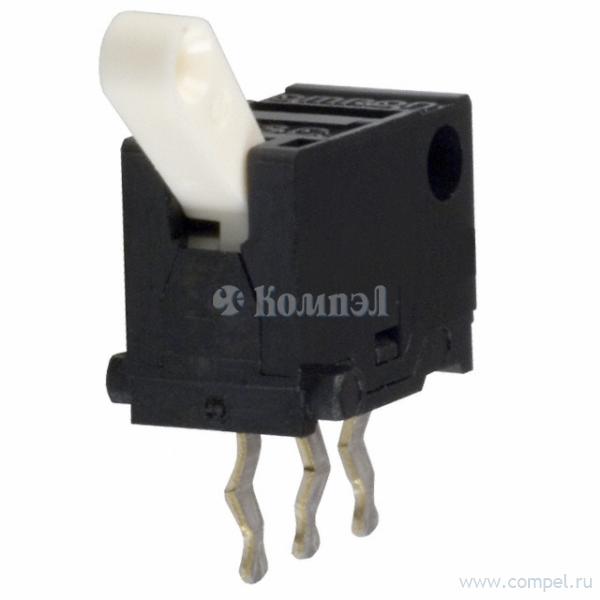

Серия переключателей D3C

Omron

Общие характеристики

	Раздел	Переключатели
	Тип компонента
	Тип переключателя
	Цепь переключателя
	Тип монтажа
	Стиль актуатора
	Нагрузочная способность контактов

Документация на серию D3C

D3C Ultra Subminiature Detection Switch 㧰 Ultra Subminiature Detection Switch with Slide Mechanism and Lever Actuator ● Compact and light weight with 3-mm long stroke. 3 C ● Built-in slide mechanism allows selection of shorting or non-shorting switching timing to match the application. RoHS Compliant Model Number Legend Contact Form 2 0 1 2@ D3C-@ ●SPDT 1. Switching timing 1 : Non-shorting Model 2 : Shorting Model 2. Maximum Operating Force (OF) 1 : 1.28N {130 gf} NO COM NC 3 2 : 0.39N {40 gf} Contact 1.28 N {130 gf} (Standard) 0.39 N {40 gf} (Low force) Non-shorting Shorting Non-shorting Shorting D3C-1210 D3C-2210 D3C-1220 D3C-2220 Ratings Specification Slide Material Silver plated Minimum applicable load (reference value) * * Rotary lever 2 Contact Specifications List of models Operating Force (OF) Switching timing Actuator 1 5 VDC 1 mA Please refer to "●Using Micro Loads" in "Precautions" for more information on the minimum applicable load. Characteristics Rated voltage Resistive load 30 VDC 0.1 A Note. The above rating values were applied under the following test conditions. (1) Ambient temperature: 20±2°C (2) Ambient humidity: 65±5% RH (3) Operating frequency: 30 operations/min Permissible operating speed Permissible operating frequency Mechanical Electrical Insulation resistance Vibration resistance *1 Shock resistance 50 mΩ max. Between terminals of the same polarity 250 VAC 50/60 Hz for 1 min Between current-carrying metal parts and ground 250 VAC 50/60 Hz for 1 min Malfunction Durability Malfunction *1 Durability *2 Degree of protection Ambient operating temperature Ambient operating humidity Weight 30 operations/min 100 MΩ min. (at 250 VDC with insulation tester) Contact resistance (initial value) Dielectric strength 1 mm to 500 mm/s 200 operations/min 10 to 55 Hz, 1.5 mm double amplitude 1,000 m/s2 {approx. 100G} max. 300 m/s2 {approx. 30G}max. 50,000 operations min. (30 operations/min) IEC IP00 -20 to +80°C (at ambient humidity 60% max.) (with no icing or condensation) 85% max. (for +5 to +35°C) Approx. 0.3g Note. The data given above are initial values. *1. The given values apply for Total Travel Position. Close or open circuit of the contact is 1 ms max. *2. For testing conditions, consult your OMRON sales representative. 1

Документация на серию D3C

D3C

Дата модификации: 23.07.2012

Размер: 427.6 Кб

3 стр.

найти D3C.pdf

Товары серии D3C

Наименование	i	Упаковка
D3C-1210 (OMRON)
D3C-1220 (OMRON)
D3C-2210 (OMRON)
D3C-2220 (OMRON)
D3C1210 (OMRON)		2000 шт
D3C1220 (OMRON)		2000 шт
D3C2210 (OMRON)		2000 шт
D3C2220 (OMRON)		2000 шт
