Серия переключателей D3D

Omron

Общие характеристики

	Раздел	Переключатели
	Тип компонента
	Тип переключателя
	Тип монтажа
	Нагрузочная способность контактов

Документация на серию D3D

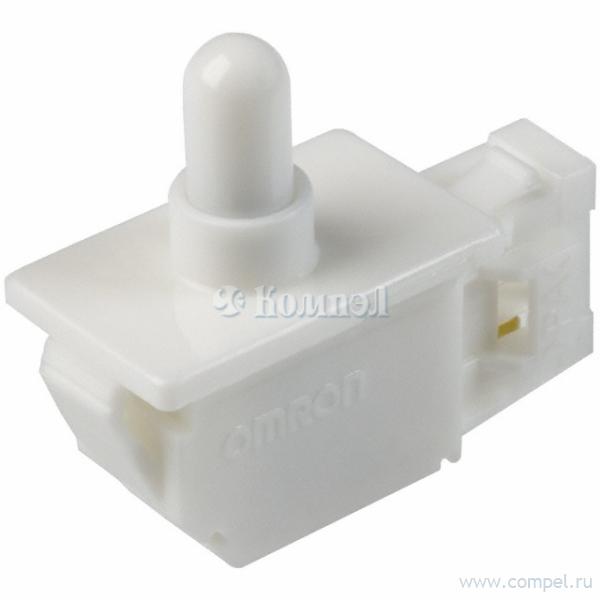

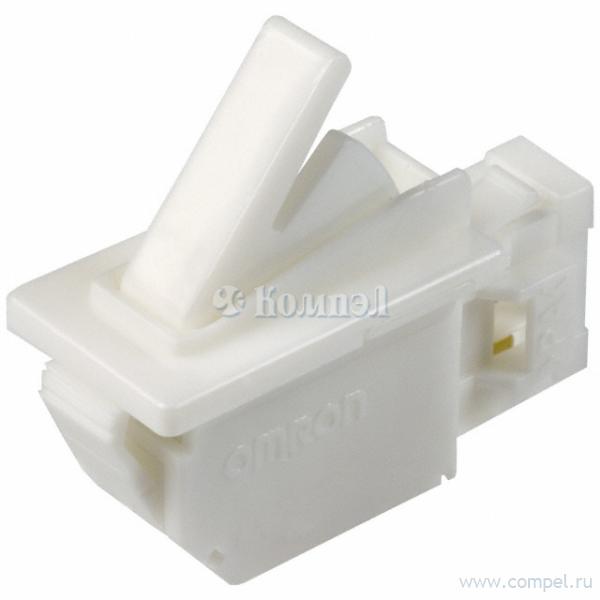

D3D Miniature Door Switch A Switch with Crimp-type Connectors Reduces Wiring Work. 9 mm long stroke (plunger model) ● Choose from plunger or lever as the actuator type. D 3 D ● Crimp-type connector offers an easy wiring work and efficiency. ● Snap-fit attachment for easy installation. ● Providing long stroke with its unique mechanism. ● Variety of color models available. RoHS Compliant Model Number Legend 1 D3D- @ 2 @ 3 @ Contact Specifications Contact 1. Actuator 1: Plunger 2: Lever * Please refer to "●Using Micro Loads" in "Precautions" for more information on the minimum applicable load. Resistive load 125 VAC 1A 250 VAC 0.5 A Note. The above rating values apply under the following test conditions. (1) Ambient temperature: 20±2°C (2) Ambient humidity: 65±5% (3) Operating frequency: 30 operations/min Contact form Housing color SPDT SPST-NC White D3D-111 D3D-121 D3D-131 Black D3D-113 D3D-123 D3D-133 White D3D-211 D3D-221 D3D-231 Black D3D-213 D3D-223 D3D-233 Contact Form 5 VDC 1 mA Rated voltage List of Models Lever Gold alloy Ratings 3. Housing color 1: White 3: Black Plunger Crossbar Material Minimum applicable load (reference value) * 2. Contact form 1: SPDT 2: SPST-NC 3: SPST-NO Actuator Specification SPST-NO Approved Safety Standards UL (UL1054/CSA C22.2 No.55) Model Rated voltage Item D3D Resistive load 125 VAC 1A 250 VAC 0.5 A VDE (EN61058-1) ●SPDT Rated voltage NC Model D3D 125 VAC 1A 250 VAC 0.5 A Testing conditions: 5E4 (50,000 operations) T55 (0°C to 55°C) COM NO ●SPST-NC NC COM ●SPST-NO COM NO 1

Документация на серию D3D

D3D

Дата модификации: 23.07.2012

Размер: 352.3 Кб

3 стр.

найти D3D.pdf

Товары серии D3D

Наименование	i	Упаковка	Конфигурация	Актуатор
D3D-111 (OMRON)
D3D-121 (OMRON)
D3D-131 (OMRON)
D3D-211 (OMRON)
D3D-221 (OMRON)
D3D-231 (OMRON)
D3D111 (OMRON)		100 шт
D3D121 (OMRON)		100 шт
D3D131 (OMRON)		100 шт
D3D211 (OMRON)		100 шт
D3D221 (OMRON)		100 шт
D3D231 (OMRON)		100 шт
D3DC-2 (OMRON)			—	—
D3DC-3 (OMRON)			—	—
D3DC2 (OMRON)			—	—
D3DC3 (OMRON)			—	—
