Серия переключателей D3V

Omron Co. - Electronic Components

Общие характеристики

	Раздел	Переключатели
	Тип компонента
	Тип переключателя
	Тип монтажа

Документация на серию D3V

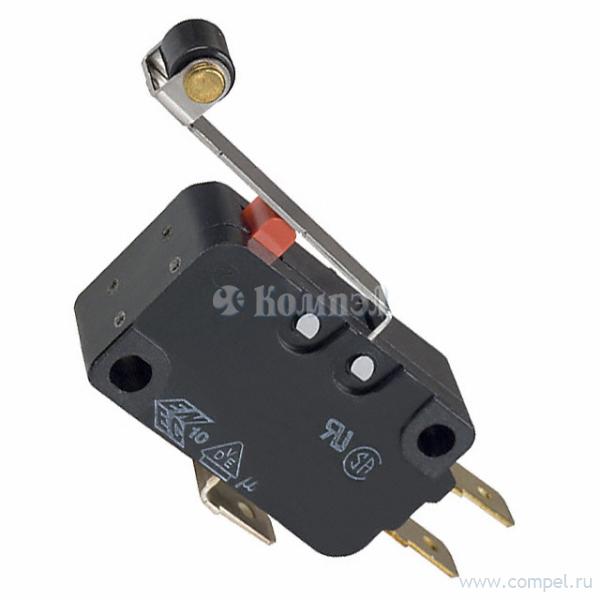

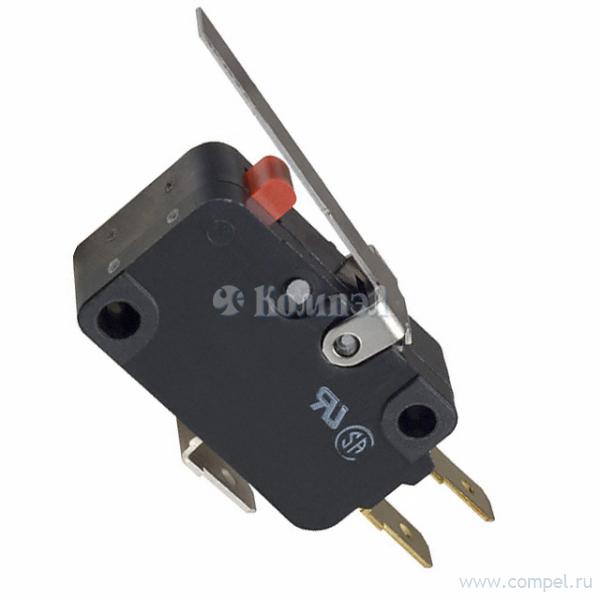

D3V Miniature Basic Switch Reliable Basic Switch with External Lever ● Available by 21 A, 16 A, 11 A, 6 A and 0.1 A models, all with self-cleaning contacts. ● Available with internally or externally fitted D 3 V levers. RoHS Compliant Model Number Legend 1 D 3 V- @ 1. Ratings 21 : 20 (4) A at 250 VAC 16 : 16 (3) A at 250 VAC 11 : 11 (3) A at 250 VAC 6 : 16 (2) A at 250 VAC 01 : 0.1 A at 125 VAC 2. Contact Gap None : 1 mm (F gap) G : 0.5 mm (G gap) 3. Actuator None : Pin plunger 1 : Short hinge lever 2 : Hinge lever 3 : Long hinge lever 4 : Simulated roller lever 5 : Short hinge roller lever 6 : Hinge roller lever 4. Hinge Position None : Internal/Far from plunger 2 @ 3 @ 4 -@ 5 @ 6 @ 7 -@ 8 -@ 9 @ 5. Contact Form 1 : SPDT 2 : SPST-NC 3 : SPST-NO 6. Terminals A : Solder terminals C2 : Quick-connect terminals (#187) C : Quick-connect terminals (#250) 7. Maximum Operating Force 5 : 1.96 N {200 gf} 4A : 1.23 N {125 gf} 4 : 0.98 N {100 gf} 3 : 0.49 N {50 gf} 2 : 0.25 N {25 gf} Note. These values are for the pin plunger models. 8. Mounting Hole Size None : 3.1 mm K : 2.9 mm 9. Special Code None : Standard H : High temperature (125°C) (See note) E : Special rating: 21 (8) A Note. Consult your OMRON sales representative for high temperature models. K : External/Near plunger 1

PDF

Документация на серию D3V

en-d3v-01.pdf

Дата модификации: 16.06.2021

Размер: 2.29 Мб

12 стр.

найти D3V.pdf

Товары серии D3V

Наименование	Упаковка	Конфигурация	Актуатор	Нагрузка
D3V-01-1A3-K (OMRON)
D3V-01-1A4-K (OMRON)		—	—	—
D3V-01-1C22 (OMRON)		—	—	—
D3V-01-1C22-K (OMRON)
D3V-01-1C23 (OMRON)
D3V-01-1C23-K (OMRON)
D3V-01-1C23-T-K (OMRON)
D3V-01-3C22 (OMRON)		—	—	—
D3V-01-3C23-K (OMRON)		—	—	—
D3V-01-3C23-T (OMRON)		—	—	—
D3V-01-3C23-T-K (OMRON)
D3V-011-1A3-K (OMRON)
D3V-011-1C23-K (OMRON)
D3V-012-1A3-K (OMRON)
D3V-012-1C23-K (OMRON)
D3V-012-2C23-K (OMRON)		—	—	—
D3V-012-3C23-K (OMRON)		—	—	—
D3V-013-2C23-K (OMRON)		—	—	—
D3V-013-3C23 (OMRON)		—	—	—
D3V-013M-1A3 (OMRON)
D3V-014-1C23 (OMRON)
D3V-014-3A3 (OMRON)		—	—	—
D3V-014-3C23 (OMRON)		—	—	—
D3V-014-3C23-K (OMRON)		—	—	—
D3V-014-3C23-T (OMRON)		—	—	—
D3V-014-3C3-T-K (OMRON)
D3V-014M-1C23 (OMRON)
D3V-015-1C23 (OMRON)
D3V-015-2C23 (OMRON)
D3V-01G-2C3-K (OMRON)		—	—	—
D3V-11-1A4 (OMRON)		—	—	—
D3V-11-1A5-K (OMRON)
D3V-11-1C24-K (OMRON)
D3V-11-2A5 (OMRON)
D3V-11-2A5-K (OMRON)
D3V-11-2C25 (OMRON)
D3V-11-3C24-K (OMRON)
D3V-111-1C25-K (OMRON)
D3V-112-1C24 (OMRON)
D3V-112K-1C25 (OMRON)		—	—	—
D3V-113K-1C25 (OMRON)		—	—	—
D3V-113M-3A5 (OMRON)
D3V-114-1A5-K (OMRON)		—	—	—
D3V-114-1C25 (OMRON)		—	—	—
D3V-114-1C4 (OMRON)
D3V-1151-1C25-K (OMRON)		—	—	—
D3V-115M-1A4 (OMRON)		—	—	—
D3V-11G-1A4-K (OMRON)
D3V-11G-1A5-K (OMRON)
D3V-11G-1C23 (OMRON)
D3V-11G-1C23-K (OMRON)
D3V-11G-1C24-K (OMRON)
D3V-11G-1C24-K-H (OMRON)
D3V-11G-1C24-T-K (OMRON)
D3V-11G-1C25-K (OMRON)	1 шт
D3V-11G-1C3 (OMRON)
D3V-11G-1C4 (OMRON)
D3V-11G-1C4-K (OMRON)
D3V-11G-1C5-K (OMRON)
D3V-11G-2A4-K (OMRON)
D3V-11G-2A5-K (OMRON)
D3V-11G-2C24-K (OMRON)
D3V-11G-2C25-K (OMRON)
D3V-11G-2C35-K (OMRON)
D3V-11G-2C4-K (OMRON)		—	—	—
D3V-11G-3A4-K (OMRON)
D3V-11G-3A5-K (OMRON)
D3V-11G-3C24-K (OMRON)
D3V-11G-3C25-K (OMRON)
D3V-11G-3F24-K-7 (OMRON)		—	—	—
D3V-11G1-1C24-K (OMRON)
D3V-11G1-1C25-K (OMRON)
D3V-11G1-1C4-K (OMRON)
D3V-11G1M-1A4-K (OMRON)
D3V-11G1M-1A5-K (OMRON)
D3V-11G1M-1C24-K (OMRON)
D3V-11G1M-1C25-K (OMRON)
D3V-11G1M-2A4-K (OMRON)
D3V-11G1M-2A5-K (OMRON)
D3V-11G1M-2C24-K (OMRON)
D3V-11G1M-2C25-K (OMRON)
D3V-11G1M-3A4-K (OMRON)
D3V-11G1M-3A5-K (OMRON)
D3V-11G1M-3C24-K (OMRON)
D3V-11G1M-3C25-K (OMRON)
D3V-11G2-1A5-K (OMRON)
D3V-11G2-1C23-K (OMRON)		—	—	—

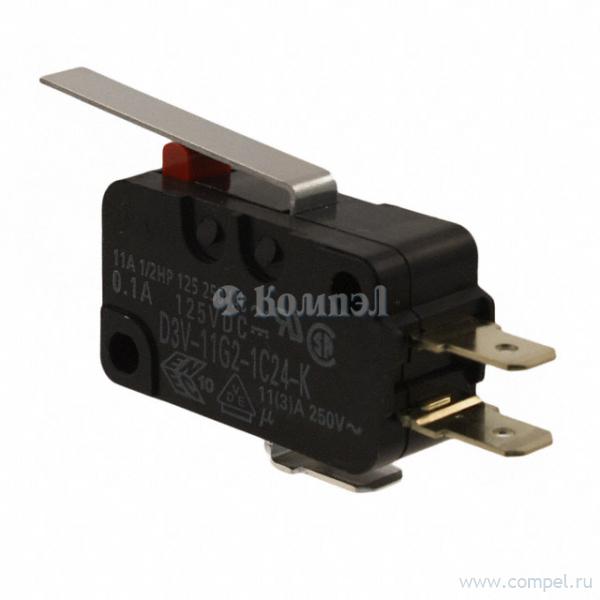

D3V-11G2-1C24-K (OMRON)
D3V-11G2-1C25-K (OMRON)
D3V-11G2-1C4-K (OMRON)
D3V-11G2-1C5-K (OMRON)
D3V-11G2-1E4-K (OMRON)
D3V-11G2-2C25-K (OMRON)
D3V-11G2-3C25-K (OMRON)
D3V-11G25-1C24-K (OMRON)
D3V-11G26-1C24-K (OMRON)
D3V-11G2M-1A4-K (OMRON)
D3V-11G2M-1A5-K (OMRON)
D3V-11G2M-1C24-K (OMRON)
D3V-11G2M-1C25-K (OMRON)
