Серия интегральных датчиков температуры D6T

Omron

Общие характеристики

 Раздел Интегральные датчики температуры
Тип датчика
Диапазон измеряемых температур
Точность измерения ±
Интерфейс

Документация на серию D6T

D6T MEMS Thermal Sensors High Sensitivity Enables Detection of Stationary Human Presence • OMRON’s unique MEMS and ASIC technology achieve a high SNR. • Superior noise immunity with a digital output. • High-precision area temperature detection with low cross-talk field of view characteristics. Refer to Safety Precautions on page 4. Ordering Information Element type Model 44 D6T-44L-06 18 D6T-8L-06 Ratings, Specifications, and Functions Object Temperature Detection Range Specification Power supply voltage 4.5 to 5.5 VDC Storage temperature range 10 to 60C (with no icing or condensation) Operating temperature range 0 to 50C (with no icing or condensation) Storage humidity range 85% max. (with no icing or condensation) Operating humidity range 20% to 85% (with no icing or condensation) Characteristics Item View angle *1 D6T-44L-06 D6T-8L-06 X direction 44.2 62.8 Y direction 45.7 6.0 Accuracy 1 1.5C max. Measurement conditions: Vcc = 5.0 V (1) Tx = 25C, Ta = 25C (2) Tx = 45C, Ta = 25C (3) Tx = 45C, Ta = 45C Accuracy 2 3.0C max. Measurement conditions: Vcc = 5.0 V (4) Tx = 25C, Ta = 45C Object temperature output accuracy *2 Current consumption 55 50 45 40 35 30 D6T Item Reference temperature Ta (°C) Ratings 25 20 15 10 5 0 −5 −5 0 5 10 15 20 25 30 35 40 45 50 55 Object temperature Tx (°C) : Inspection point for accuracy 1 : Inspection point for accuracy 2 : Object temperature detection range 5 mA typical Functions Item Object temperature detection range *2 Specification 5 to 50C Reference temperature detection range *2 5 to 45C Output specifications Digital values that correspond to the object temperature (Tx) and reference temperature (Ta) are output from a serial communications port. Output form Binary code (10 times the detected temperature (C)) Communications form I2C compliant Temperature resolution (NETD) 0.14C *1. *2. Refer to Field of View Characteristics. Refer to Object Temperature Detection Range. 1 PDF
Документация на D6T-44L-06

D6T.fm

Дата модификации: 23.04.2013

Размер: 772.3 Кб

4 стр.

    Товары серии D6T

    Наименование i Упаковка

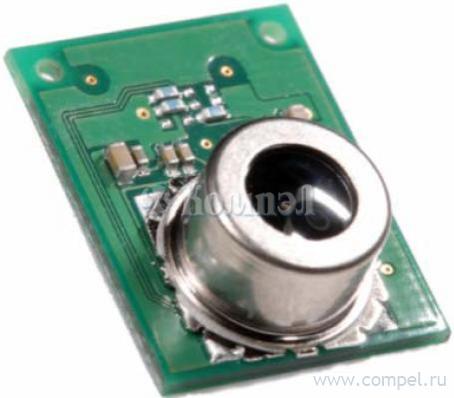

    D6T-44L-06 (OMRON)

    		Датчик температуры - [модуль]; Тип: ИК; T изм: 5...50 °C; Точность: 1.5 °C; Интерфейс: ... на поддоне 50 шт
    D6T-8L-06 (OMRON)

    		Датчик температуры - [модуль]; Тип: ИК; T изм: 5...50 °C; Точность: 1.5 °C; Интерфейс: ... в коробках 50 шт
