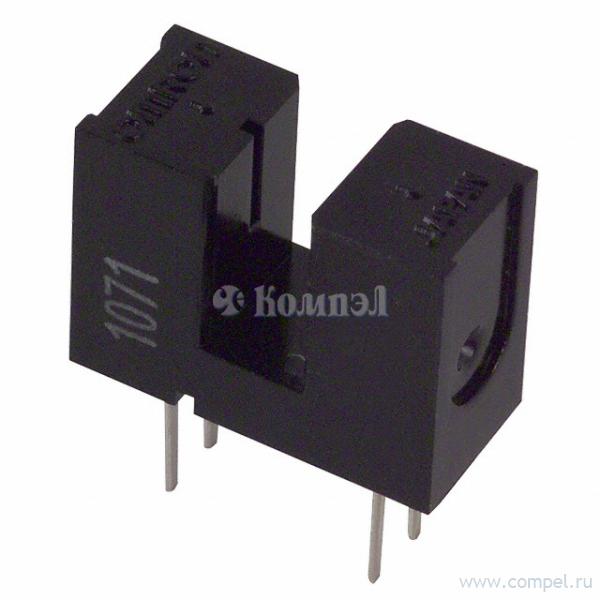

Серия оптических датчиков положения EE-SX1071

Omron Co. - Electronic Components

Общие характеристики

	Раздел	Датчики положения оптические
	Режим работы
	Тип выхода
	Рабочее расстояние
	Способ монтажа
	Ток излучателя (ном)
	Коммутируемое напряжение (макс)
	Коммутируемый ток (макс)

Документация на серию EE-SX1071

Photomicrosensor (Transmissive) EE-SX1071 Be sure to read Precautions on page 25. ■ Dimensions ■ Features Note: All units are in millimeters unless otherwise indicated. • General-purpose model with a 3.4-mm-wide slot. • PCB mounting type. • High resolution with a 0.5-mm-wide aperture. ■ Absolute Maximum Ratings (Ta = 25°C) 6.2 Item Emitter Four, C0.3 2.1 Optical axis 10.2 7.2 Detector Four, 0.25 Cross section BB (2.54) Cross section AA Ambient temperature Internal Circuit K C A E Terminal No. Name A Anode K C E Cathode Collector Emitter 50 mA (see note 1) Pulse forward current IFP 1A (see note 2) Reverse voltage VR 4V Collector–Emitter voltage VCEO 30 V Emitter–Collector voltage VECO --- Collector current IC 20 mA Collector dissipation PC 100 mW (see note 1) Operating Topr –25°C to 85°C Storage Tstg –30°C to 100°C Tsol 260°C (see note 3) Soldering temperature Unless otherwise specified, the tolerances are as shown below. Dimensions Note: 1. Refer to the temperature rating chart if the ambient temperature exceeds 25°C. 2. The pulse width is 10 μs maximum with a frequency of 100 Hz. 3. Complete soldering within 10 seconds. Tolerance 3 mm max. ±0.3 3 < mm ≤ 6 6 < mm ≤ 10 ±0.375 ±0.45 10 < mm ≤ 18 ±0.55 18 < mm ≤ 30 ±0.65 Rated value IF 0.5 0.2 Four, 0.5 Symbol Forward current ■ Electrical and Optical Characteristics (Ta = 25°C) Item Emitter Detector Forward voltage Symbol Value VF 1.2 V typ., 1.5 V max. Condition IF = 30 mA Reverse current IR 0.01 μA typ., 10 μA max. VR = 4 V Peak emission wavelength λP 940 nm typ. IF = 20 mA Light current IL 0.5 mA min., 14 mA max. IF = 20 mA, VCE = 10 V Dark current ID 2 nA typ., 200 nA max. VCE = 10 V, 0 lx Leakage current ILEAK --- --- Collector–Emitter saturated voltage VCE (sat) 0.1 V typ., 0.4 V max. IF = 20 mA, IL = 0.1 mA Peak spectral sensitivity wavelength λP 850 nm typ. VCE = 10 V Rising time tr 4 μs typ. VCC = 5 V, RL = 100 Ω, IL = 5 mA Falling time tf 4 μs typ. VCC = 5 V, RL = 100 Ω, IL = 5 mA 48 EE-SX1071 Photomicrosensor (Transmissive)

Документация на серию EE-SX1071

Micro Sensing Device Data Book

Дата модификации: 15.06.2009

Размер: 106.6 Кб

2 стр.

найти EE-SX1071.pdf

Товары серии EE-SX1071

Наименование	i	Упаковка
EE-SX1071 (OMRON)		50 шт
