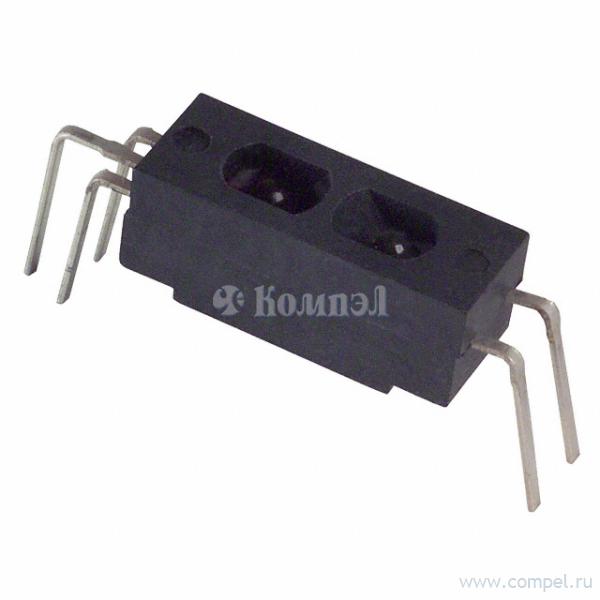

Серия оптических датчиков положения EE-SY310

Общие характеристики

	Раздел	Датчики положения оптические
	Режим работы
	Тип выхода

Документация на серию EE-SY310

Photomicrosensor (Reflective) EE-SY310/-SY410 Be sure to read Precautions on page 25. ■ Dimensions ■ Features Note: All units are in millimeters unless otherwise indicated. • Incorporates an IC chip with a built-in detector element and amplifier. • Incorporates a detector element with a built-in temperature compensation circuit. • Compact reflective model with a molded housing. • A wide supply voltage range: 4.5 to 16 VDC • Directly connects with C-MOS and TTL. • Dark ON model (EE-SY310) • Light ON model (EE-SY410) Five, 0.5 4.6 +0.2 −0.3 Two. R1.5 Two. R2 ■ Absolute Maximum Ratings (Ta = 25°C) Five, 0.3 Item Emitter 15 to 18 17 to 24 Detector Internal Circuit A V O K G Terminal No. Name A Anode Unless otherwise specified, the tolerances are as shown below. 50 mA (see note 1) Reverse voltage VR 4V Pulse forward current IFP 1A (see note 2) Power supply voltage VCC 16 V Output voltage VOUT 28 V Output current IOUT 16 mA Permissible output dissipation POUT 250 mW (see note 1) Operating Topr –40°C to 75°C Storage Tstg –40°C to 85°C Tsol 260°C (see note 3) Ambient temperature 3 mm max. ±0.2 Soldering temperature K Cathode 3 < mm ≤ 6 V Power supply (Vcc) 6 < mm ≤ 10 ±0.24 ±0.29 O G Output (OUT) Ground (GND) 10 < mm ≤ 18 ±0.35 18 < mm ≤ 30 ±0.42 Rated value IF Tolerance Dimensions Symbol Forward current Note: 1. Refer to the temperature rating chart if the ambient temperature exceeds 25°C. 2. The pulse width is 10 μs maximum with a frequency of 100 Hz. 3. Complete soldering within 10 seconds. ■ Electrical and Optical Characteristics (Ta = 25°C) Item Emitter Symbol Value Condition Forward voltage VF 1.2 V typ., 1.5 V max. IF = 20 mA Reverse current IR 0.01 μA typ., 10 μA max. VR = 4 V 920 nm typ. IF = 20 mA Low-level output voltage VOL 0.12 V typ., 0.4 V max. Vcc = 4.5 to 16 V, IOL = 16 mA, without incident light (EE-SY310), with incident light (EE-SY410) (see notes 1 and 2) High-level output voltage VOH 15 V min. Vcc = 16 V, RL = 1 kΩ, with incident light (EE-SY310), without incident light (EE-SY410) (see notes 1 and 2) Current consumption ICC 3.2 mA typ., 10 mA max. Vcc = 16 V Peak spectral sensitivity wavelength λP 870 nm typ. VCC = 4.5 to 16 V IFT 6 mA typ., 15 mA max. VCC = 4.5 to 16 V Hysteresis ΔH 17% typ. VCC = 4.5 to 16 V Response frequency f 50 Hz min. VCC = 4.5 to 16 V, IF = 15 mA, IOL = 16 mA Response delay time tPLH (tPHL) 3 μs typ. VCC = 4.5 to 16 V, IF = 15 mA, IOL = 16 mA Response delay time tPHL (tPLH) 20 μs typ. VCC = 4.5 to 16 V, IF = 15 mA, IOL = 16 mA Peak emission wavelength λP Detector LED current when output is OFF LED current when output is ON 170 EE-SY310/-SY410 Photomicrosensor (Reflective)  PDF

Документация на серию EE-SY310

Micro Sensing Device Data Book

Дата модификации: 15.06.2009

Размер: 105 Кб

2 стр.

• найти EE-SY310.pdf

Товары серии EE-SY310

Наименование	i	Упаковка
EE-SY310 (OMRON)
