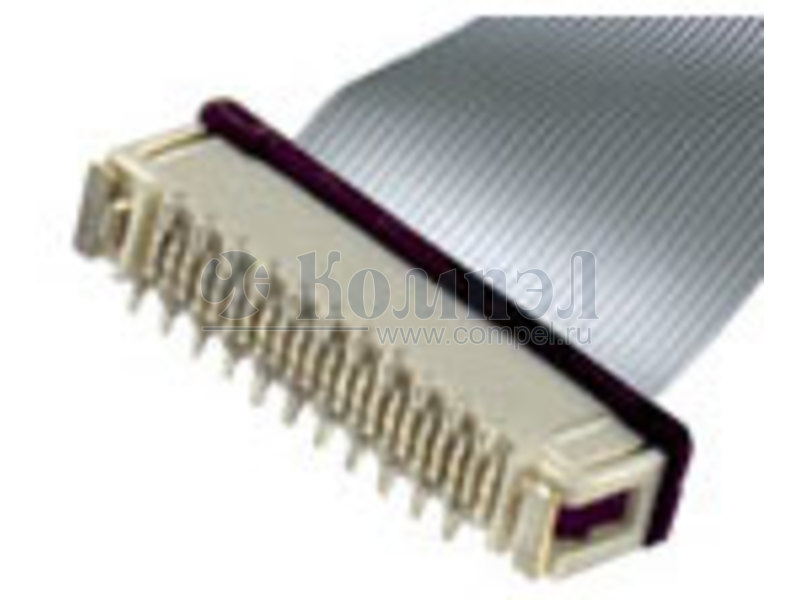

Серия соединителей печатный кабель (FPC) - плата XF2J

Omron

Общие характеристики

	Раздел	Соединители печатный кабель (FPC) - плата
	Тип разъема
	Тип монтажа
	Шаг выводов
	Расположение

Документация на серию XF2J

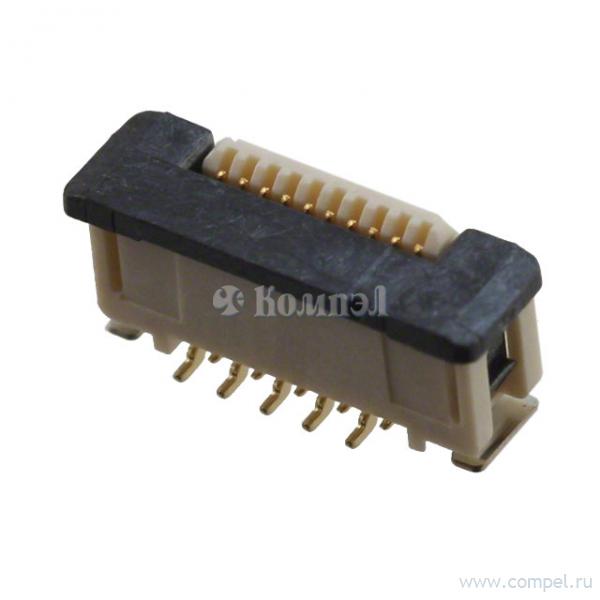

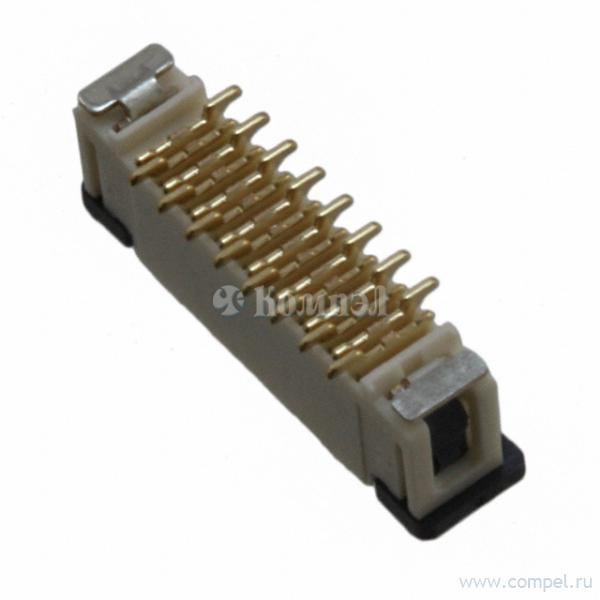

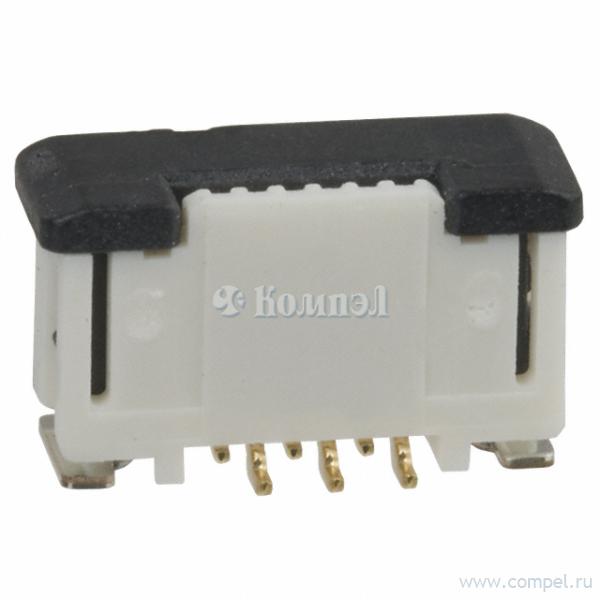

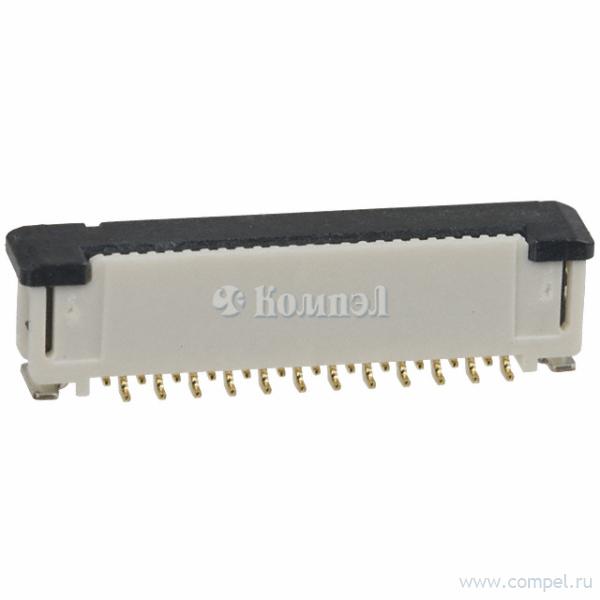

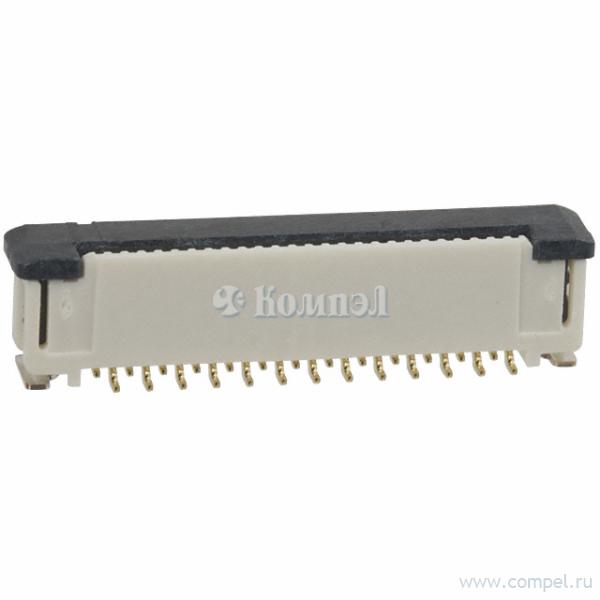

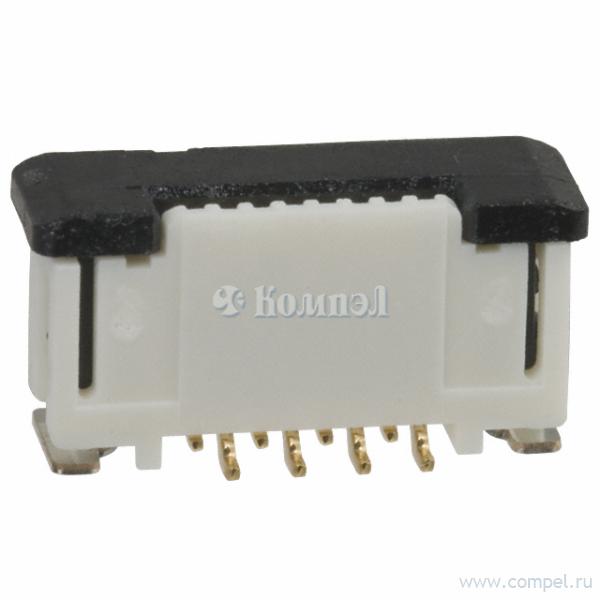

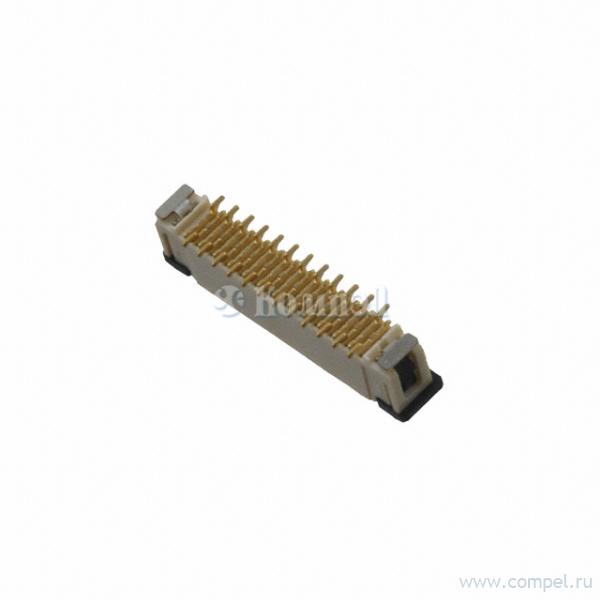

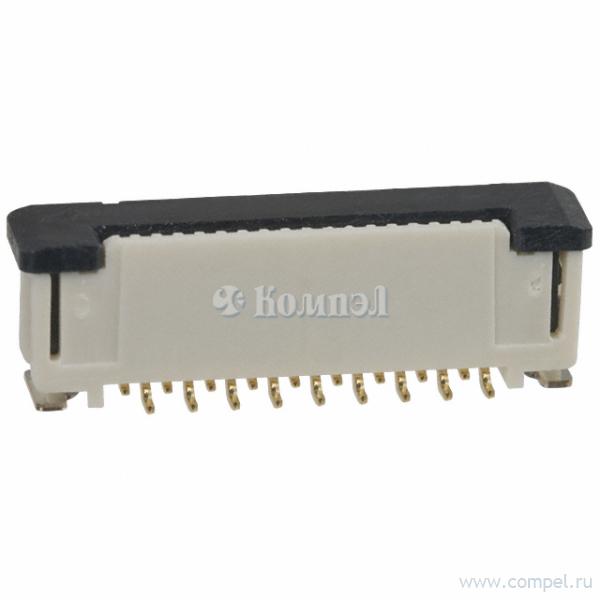

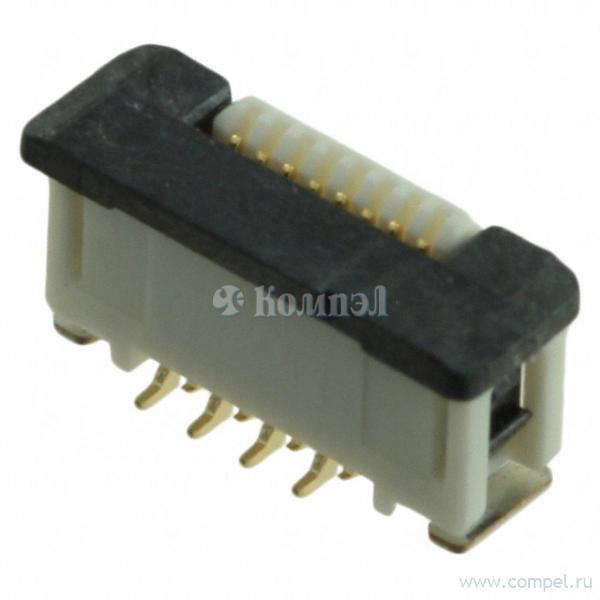

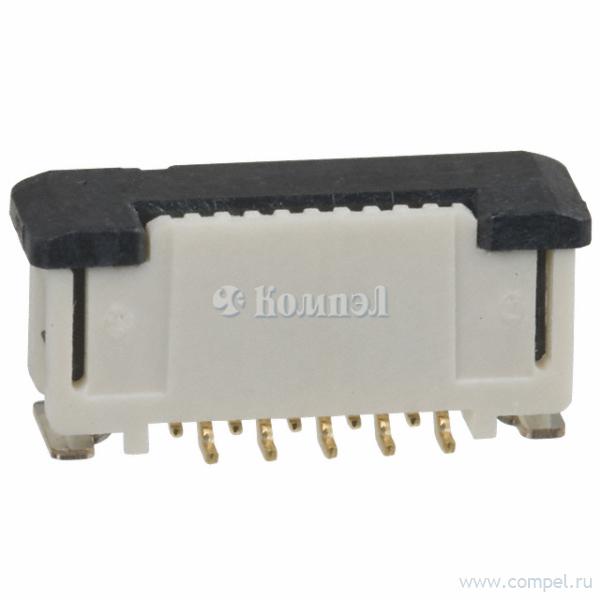

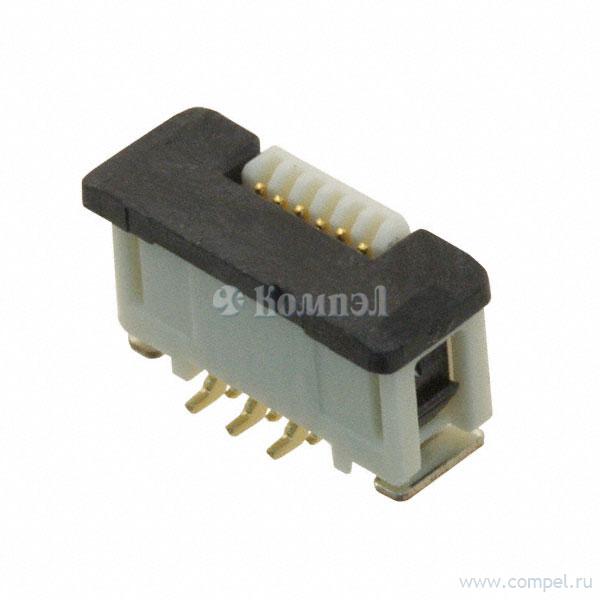

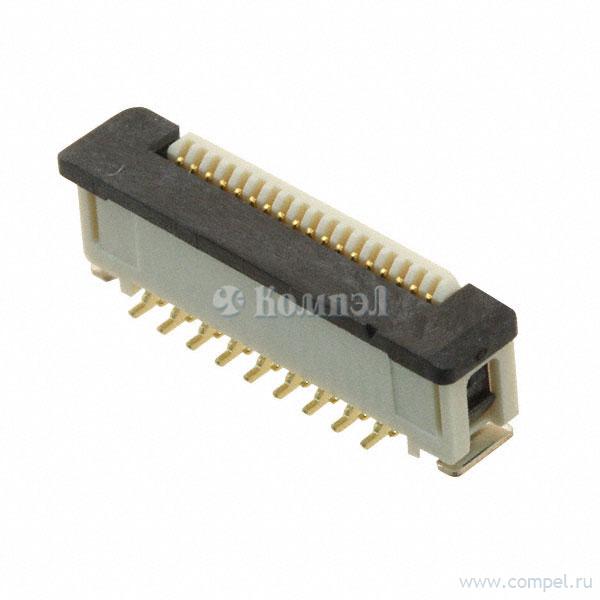

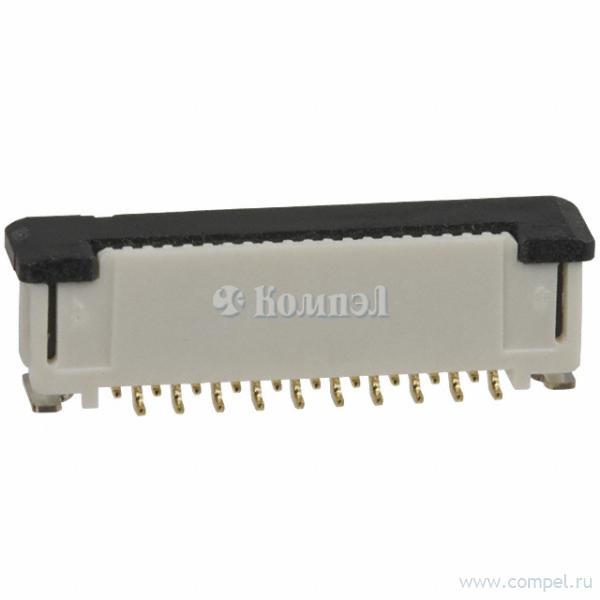

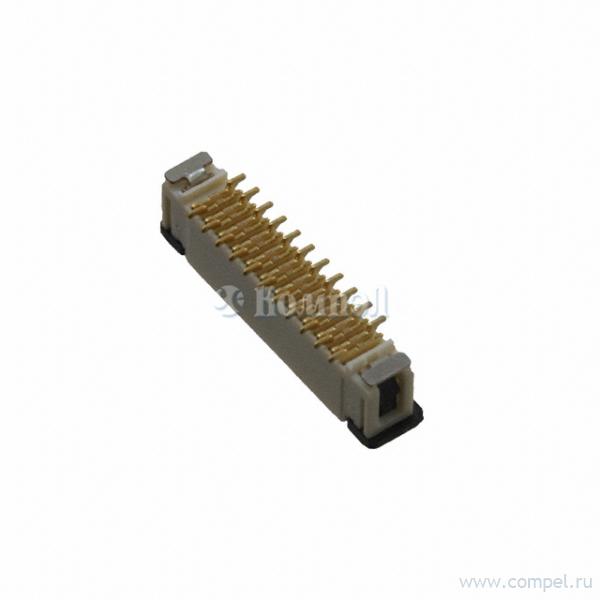

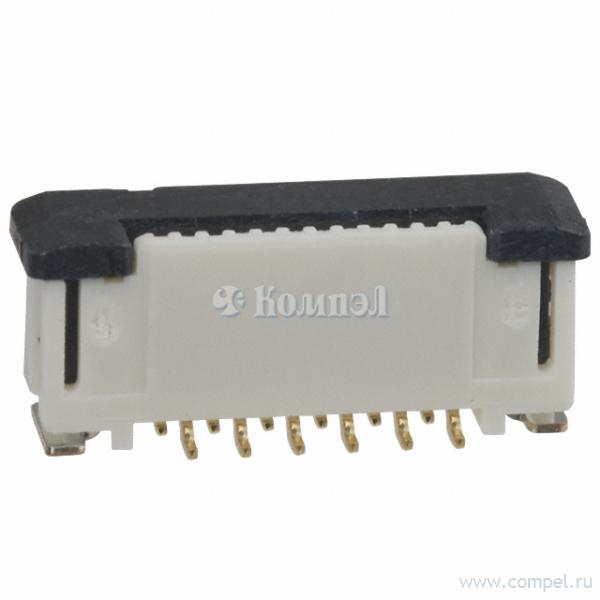

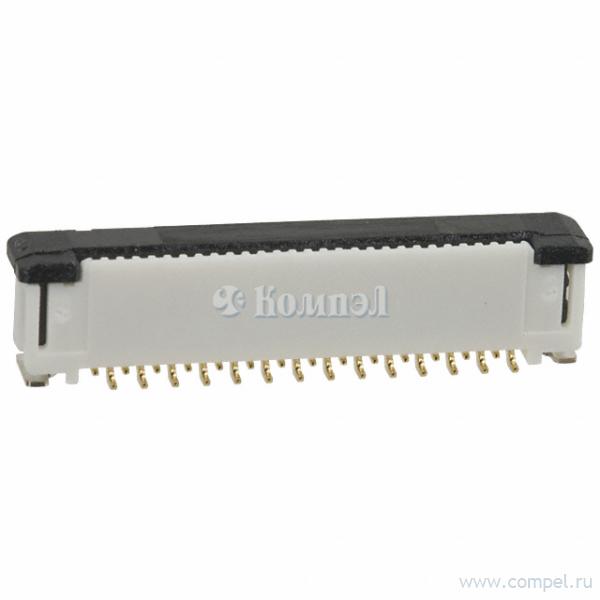

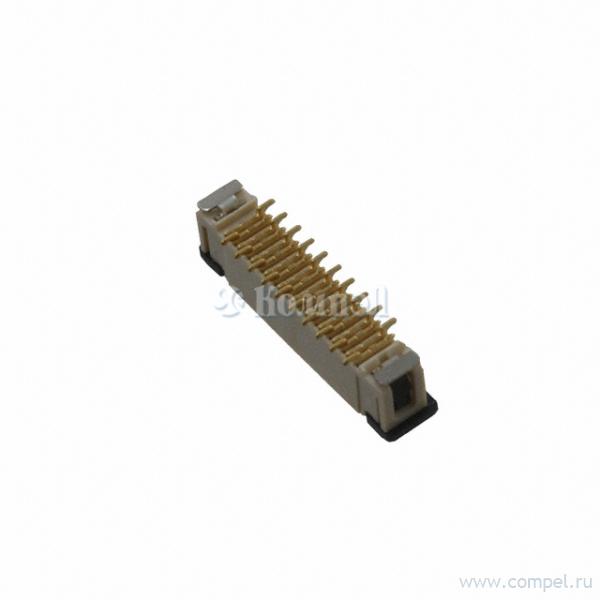

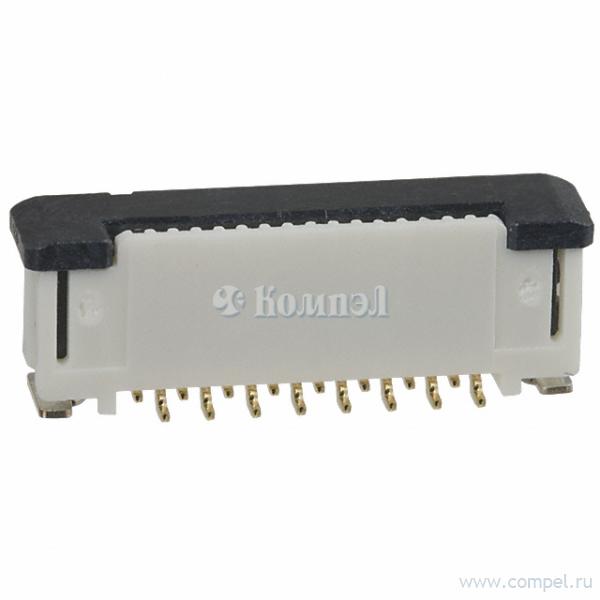

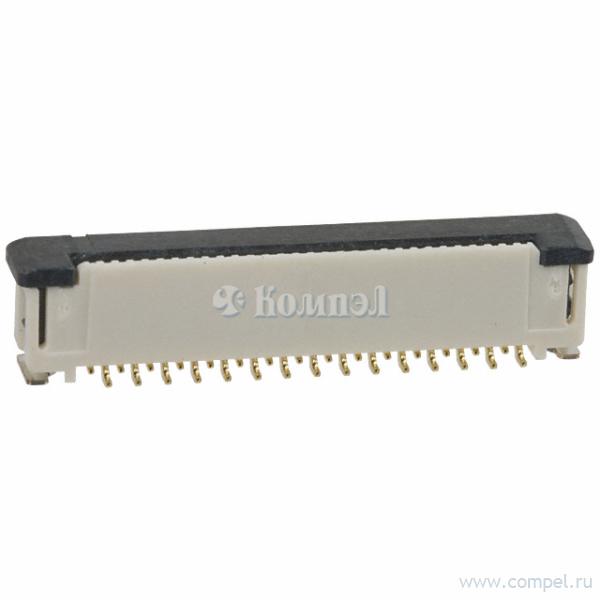

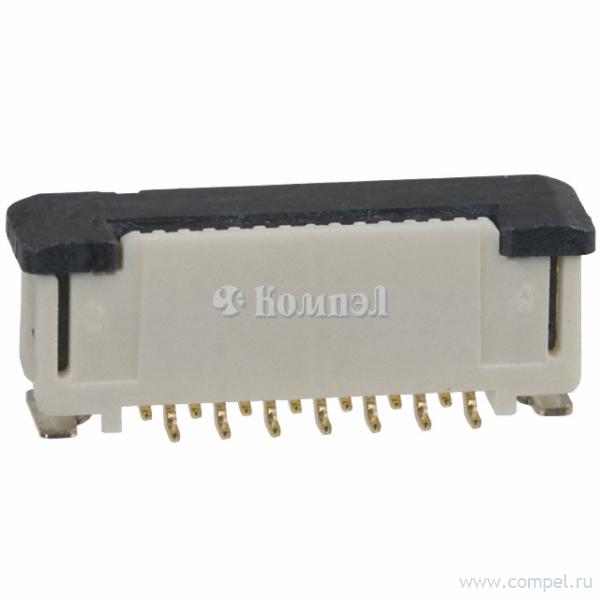

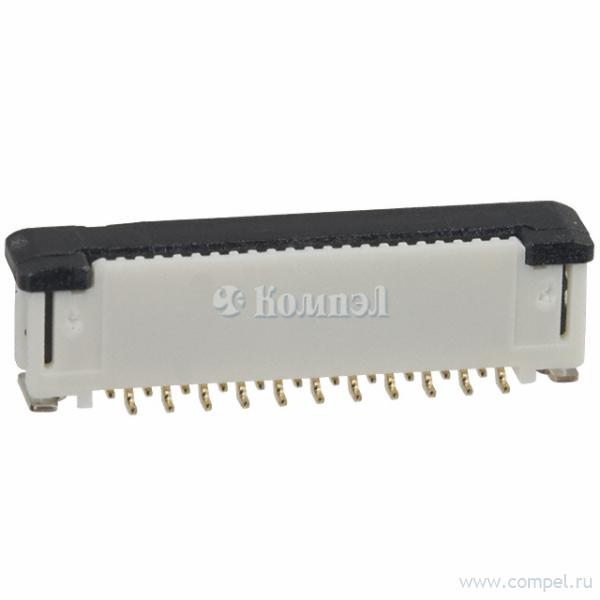

ZIF Slide-locking Type (0.5 mm-pitch) XF2J Top-entry ZIF Connector • Low on-board profile of only 4.15 mm. • Adhesion face on top of the connector suits automatic mounting. • Models with reverse terminal arrangement also available. • Applicable FPC thickness, t = 0.3 mm. • RoHS Compliant. Ordering Information Pins (Note 1) Quantity per reel (Note 2) 6 1,000 Model Standard terminal arrangement Reverse terminal arrangement XF2J-0624-11 XF2J-0624-12 8 XF2J-0824-11 XF2J-0824-12 10 XF2J-1024-11 XF2J-1024-12 12 XF2J-1224-11 XF2J-1224-12 14 XF2J-1424-11 — 16 XF2J-1624-11 XF2J-1624-12 18 XF2J-1824-11 XF2J-1824-12 20 XF2J-2024-11 XF2J-2024-12 22 XF2J-2224-11 XF2J-2224-12 24 XF2J-2424-11 XF2J-2424-12 26 XF2J-2624-11 — 28 XF2J-2824-11 — 30 XF2J-3024-11 — Note: 1. Consult your OMRON representative for enquiries related to pin-number and lead-free plating specifications. 2. Order an integer multiple of the quantity per reel. Specifications Rated current 0.5A AC/DC Rated voltage 50V AC/DC Contact resistance 30 mΩ max. (at 20 mV max., 100 mA max.) Insulation resistance 100 MΩ min. (at 250V DC) Withstand voltage 250V AC for 1 min. (leakage current: 1 mA max.) Insertion tolerance 30 times Ambient operating temperature -30 to +85°C (with no icing or condensation) ■ Materials/Finish Housing PA46 resin (UL94V-0)/natural Slider PPS resin (UL94V-0)/black LCP resin (UL94V-0)/black Contact Spring copper alloy/nickel substrate (2µm), tin-alloy plating (2µm) Hold-down Spring copper alloy/fused-tin plating (1.5µm) ZIF Slide-locking Type (0.5 mm-pitch) XF2J 1

PDF

Документация на серию XF2J

XF2J.fm

Дата модификации: 06.03.2007

Размер: 745 Кб

6 стр.

найти XF2J.pdf
