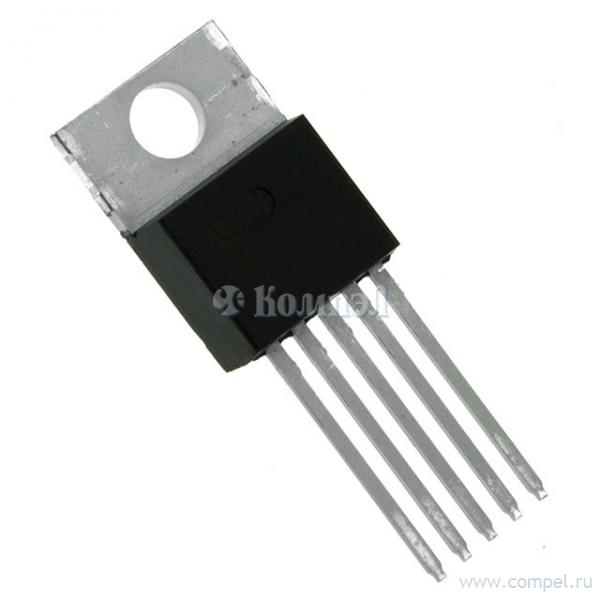

Серия DC-DC интегральных преобразователей LM2575

Общие характеристики

Раздел DC-DC преобразователи интегральные
Кол-во выходов
Тип преобразователя
Максимальная скважность преобразования
Ток собственного потребления

Документация на серию LM2575

LM2575, NCV2575 1.0 A, Adjustable Output Voltage, Step-Down Switching Regulator The LM2575 series of regulators are monolithic integrated circuits ideally suited for easy and convenient design of a step−down switching regulator (buck converter). All circuits of this series are capable of driving a 1.0 A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5.0 V, 12 V, 15 V, and an adjustable output version. These regulators were designed to minimize the number of external components to simplify the power supply design. Standard series of inductors optimized for use with the LM2575 are offered by several different inductor manufacturers. Since the LM2575 converter is a switch−mode power supply, its efficiency is significantly higher in comparison with popular three−terminal linear regulators, especially with higher input voltages. In many cases, the power dissipated by the LM2575 regulator is so low, that no heatsink is required or its size could be reduced dramatically. The LM2575 features include a guaranteed ±4% tolerance on output voltage within specified input voltages and output load conditions, and ±10% on the oscillator frequency (±2% over 0°C to 125°C). External shutdown is included, featuring 80 mA typical standby current. The output switch includes cycle−by−cycle current limiting, as well as thermal shutdown for full protection under fault conditions. http://onsemi.com TO−220 TV SUFFIX CASE 314B 1 5 Heatsink surface connected to Pin 3 TO−220 T SUFFIX CASE 314D 1 5 Pin Features • 3.3 V, 5.0 V, 12 V, 15 V, and Adjustable Output Versions • Adjustable Version Output Voltage Range of 1.23 V to 37 V ±4% • • • • • • • • • • Maximum Over Line and Load Conditions Guaranteed 1.0 A Output Current Wide Input Voltage Range: 4.75 V to 40 V Requires Only 4 External Components 52 kHz Fixed Frequency Internal Oscillator TTL Shutdown Capability, Low Power Standby Mode High Efficiency Uses Readily Available Standard Inductors Thermal Shutdown and Current Limit Protection Moisture Sensitivity Level (MSL) Equals 1 Pb−Free Packages are Available* Vin Output Ground Feedback ON/OFF D2PAK D2T SUFFIX CASE 936A 1 5 Heatsink surface (shown as terminal 6 in case outline drawing) is connected to Pin 3 ORDERING INFORMATION See detailed ordering and shipping information in the package dimensions section on page 25 of this data sheet. Applications • • • • • • 1. 2. 3. 4. 5. Simple and High−Efficiency Step−Down (Buck) Regulators Efficient Pre−Regulator for Linear Regulators On−Card Switching Regulators Positive to Negative Converters (Buck−Boost) Negative Step−Up Converters Power Supply for Battery Chargers DEVICE MARKING INFORMATION See general marking information in the device marking section on page 26 of this data sheet. *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. © Semiconductor Components Industries, LLC, 2009 June, 2009 − Rev. 11 1 Publication Order Number: LM2575/D PDF
Документация на серию LM2575

LM2575 - Adjustable Output Voltage, Step-Down Switching Regulator

Дата модификации: 09.06.2009

Размер: 492.1 Кб

28 стр.

LM2575, NCV2575 1.0 A, Adjustable Output Voltage, Step-Down Switching Regulator The LM2575 series of regulators are monolithic integrated circuits ideally suited for easy and convenient design of a step−down switching regulator (buck converter). All circuits of this series are capable of driving a 1.0 A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5.0 V, 12 V, 15 V, and an adjustable output version. These regulators were designed to minimize the number of external components to simplify the power supply design. Standard series of inductors optimized for use with the LM2575 are offered by several different inductor manufacturers. Since the LM2575 converter is a switch−mode power supply, its efficiency is significantly higher in comparison with popular three−terminal linear regulators, especially with higher input voltages. In many cases, the power dissipated by the LM2575 regulator is so low, that no heatsink is required or its size could be reduced dramatically. The LM2575 features include a guaranteed ±4% tolerance on output voltage within specified input voltages and output load conditions, and ±10% on the oscillator frequency (±2% over 0°C to 125°C). External shutdown is included, featuring 80 mA typical standby current. The output switch includes cycle−by−cycle current limiting, as well as thermal shutdown for full protection under fault conditions. http://onsemi.com TO−220 TV SUFFIX CASE 314B 1 5 Heatsink surface connected to Pin 3 TO−220 T SUFFIX CASE 314D 1 5 Pin Features • 3.3 V, 5.0 V, 12 V, 15 V, and Adjustable Output Versions • Adjustable Version Output Voltage Range of 1.23 V to 37 V ±4% • • • • • • • • • • Maximum Over Line and Load Conditions Guaranteed 1.0 A Output Current Wide Input Voltage Range: 4.75 V to 40 V Requires Only 4 External Components 52 kHz Fixed Frequency Internal Oscillator TTL Shutdown Capability, Low Power Standby Mode High Efficiency Uses Readily Available Standard Inductors Thermal Shutdown and Current Limit Protection Moisture Sensitivity Level (MSL) Equals 1 Pb−Free Packages are Available* Vin Output Ground Feedback ON/OFF D2PAK D2T SUFFIX CASE 936A 1 5 Heatsink surface (shown as terminal 6 in case outline drawing) is connected to Pin 3 ORDERING INFORMATION See detailed ordering and shipping information in the package dimensions section on page 25 of this data sheet. Applications • • • • • • 1. 2. 3. 4. 5. Simple and High−Efficiency Step−Down (Buck) Regulators Efficient Pre−Regulator for Linear Regulators On−Card Switching Regulators Positive to Negative Converters (Buck−Boost) Negative Step−Up Converters Power Supply for Battery Chargers DEVICE MARKING INFORMATION See general marking information in the device marking section on page 27 of this data sheet. *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. © Semiconductor Components Industries, LLC, 2008 September, 2008 − Rev. 10 1 Publication Order Number: LM2575/D PDF
Документация на LM2575D2T-12R4

lm2575.rev10

Дата модификации: 02.10.2008

Размер: 408.8 Кб

29 стр.

    Товары серии LM2575

    Наименование i Упаковка Корпус Режим Uвх Uвых Iвых F преобр T раб Опции
    2575D2T-3.3 (ONS) TO-263-5
    LM2575D2T-005 (ONS)
    LM2575D2T-012G (ONS) DC-DC преобразователь интегральный - [TO-263-3]; Тип: Buck; Uвх: 7...40 В; Uвых: 12...3... TO2636
    LM2575D2T-015G (ONS) DC-DC преобразователь интегральный - [TO-263-3]; Тип: Buck; Uвх: 7...40 В; Uвых: 15...3... 1 шт TO2636
    LM2575D2T-12R4 (ONS)
    LM2575D2T-12R4G (ONS) DC-DC преобразователь интегральный - [TO-263-3]; Тип: Buck; Uвх: 7...40 В; Uвых: 12...3... в ленте 800 шт TO2636 INT_SWITCH, Current Limit, Thermal Shutdown
    LM2575D2T-15R4G (ONS) DC-DC преобразователь интегральный - [TO-263-3]; Тип: Buck; Uвх: 7...40 В; Uвых: 15...3... в ленте 800 шт TO2636
    LM2575D2T-3.3G (ONS) DC-DC преобразователь интегральный - [TO-263-5]; Тип: Buck; Uвх: 7...40 В; Uвых: 3.234.... 50 шт TO2636
    LM2575D2T-3.3R4G (ONS) DC-DC преобразователь интегральный - [TO-263-3]; Тип: Buck; Uвх: 7...40 В; Uвых: 3.3...... 800 шт TO2636
    LM2575D2T-5G (ONS) 1.0 A, 52 kHz Buck Switching Regulator, 5.0 V в линейках 50 шт TO2636 INT_SWITCH, Current Limit, Thermal Shutdown
    LM2575D2T-5R4G (ONS) DC-DC преобразователь интегральный в ленте 800 шт TO2636
    LM2575D2T-ADJ (ONS) 104 шт
    LM2575D2T-ADJG (ONS) DC-DC преобразователь интегральный - [TO-263-3]; Тип: Buck; Uвх: 7...40 В; Uвых: 1.23..... в линейках 50 шт TO2636
    LM2575D2T-ADJR4G (ONS)

    в ленте 800 шт TO2636 INT_SWITCH, Current Limit, Thermal Shutdown
    LM2575T-005 (ONS)

    LM2575T-12G (ONS) DC-DC преобразователь интегральный - [TO-220-5]; Тип: Buck; Uвх: 7...40 В; Uвых: 12...3... в линейках 50 шт TO2205
    LM2575T-15G (ONS) DC-DC преобразователь интегральный - [TO-220-5]; Тип: Buck; Uвх: 7...40 В; Uвых: 15...3... в линейках 50 шт TO2205 INT_SWITCH, Current Limit, Thermal Shutdown
    LM2575T-3.3 (ONS)

    LM2575T-3.3G (ONS) DC-DC преобразователь интегральный в линейках 50 шт TO2205 INT_SWITCH, Current Limit, Thermal Shutdown
    LM2575T-5 (ONS)

    TO2205
    LM2575T-5G (ONS) DC-DC преобразователь интегральный в линейках 50 шт TO2205 INT_SWITCH, Current Limit, Thermal Shutdown
    LM2575T-ADJ (ONS) 50 шт TO2205
    LM2575T-ADJG (ONS) DC-DC преобразователь интегральный - [TO-220-5]; Тип: Buck; Uвх: 7...40 В; Uвых: 1.23..... в линейках 50 шт TO2205 INT_SWITCH, Current Limit, Thermal Shutdown
    LM2575TV-012G (ONS) DC-DC преобразователь интегральный - [TO-220-5]; Тип: Buck; Uвх: 7...40 В; Uвых: 12...3... TO2205
    LM2575TV-15G (ONS) DC-DC преобразователь интегральный - [TO-220-5]; Тип: Buck; Uвх: 7...40 В; Uвых: 15...3... TO2205
    LM2575TV-3.3G (ONS) DC-DC преобразователь интегральный - [TO-220-5]; Тип: Buck; Uвх: 7...40 В; Uвых: 3.3...... TO2205
    LM2575TV-5G (ONS) DC-DC преобразователь интегральный - [TO-220-5]; Тип: Buck; Uвх: 7...40 В; Uвых: 5...37... в линейках 50 шт TO2205
    LM2575TV-ADJG (ONS) DC-DC преобразователь интегральный - [TO-220-5]; Тип: Buck; Uвх: 7...40 В; Uвых: 1.23..... в линейках 50 шт TO2205
    NCV2575D2T-12G (ONS) DC-DC преобразователь интегральный - [TO-263-3]; Тип: Buck; Uвх: 4.75...40 В; Uвых: от ... TO-263-3
    NCV2575D2T-12R4G (ONS) DC-DC преобразователь интегральный - [TO-263-3]; Тип: Buck; Uвх: 4.75...40 В; Uвых: от ... TO2636
    NCV2575D2T-5G (ONS) DC-DC преобразователь интегральный - [TO-263-3]; Тип: Buck; Uвх: 4.75...40 В; Uвых: от ... TO-263-3
    NCV2575D2T-5R4G (ONS) DC-DC преобразователь интегральный - [TO-263-3]; Тип: Buck; Uвх: 4.75...40 В; Uвых: от ... TO2636
    NCV2575D2T-ADJG (ONS) DC-DC преобразователь интегральный - [TO-263-3]; Тип: Buck; Uвх: 4.75...40 В; Iвых: 1 А... TO-263-3
    NCV2575D2TADJR4G (ONS) DC-DC преобразователь интегральный - [TO-263-3]; Тип: Buck; Uвх: 4.75...40 В; Iвых: 1 А... TO2636

    LM2575 публикации

    11 апреля 2008
    статья

    Понижающие DC/DC с интегрированным ключом для промышленной автоматики

    Преобразователь DC/DC – со встроенным ключом представляет собой интегральную схему (ИС), в которую входит ШИМ–контроллер, контур стабилизации напряжения, драйвер транзисторного ключа и собственно транзисторный ключ (обычно полевой... ...читать

    20 марта 2008
    статья

    Расширьте диапазон входных напряжений – задействуйте «Simple Switcher®»

      Что касается бытовых устройств с питанием от сети 110 или 220 В, таких как телевизоры, музыкальные центры и прочие, то для них существует огромное множество контроллеров высоковольтных импульсных источников питания, благодаря применению... ...читать
