Серия энкодеров EVEK

Общие характеристики

	Раздел	Энкодеры
	Тип энкодера
	Тип выхода
	Выходной код
	Оптическое разрешение (имп/оборот или имп/дюйм)
	Тип вала
	Диаметр вала
	Способ подключения
	Наработка на отказ, оборотов

Документация на серию EVEK

Encoders/EVEG/H/K/L 12 mm Square GS Encoders Type: EVEG/EVEH/EVEK/EVEL ■ Features ● Lineup of high rotation-torque-type (50 mN·m) ● A wide range of standard products ■ Recommended Applications ● Volume for audio/visual equipment ● Tuner for communication units ● Mode selection for measurement instruments ■ Explanation of Part Numbers 1 2 3 E V E Product Code 4 5 6 7 8 9 Combination of Shaft Specifications 10 11 12 Output (Pulses) ■ Product Chart Combination of Bushing Torque type Die-cast Sleeve Barling Standard type Barling (3 mN·m to 20 mN·m) Die-cast Sleeve Heavy-rotation torque (10 mN·m to 50 mN·m) (7.0,12.0 mm) (7.0,12.0 mm) (5.0 mm) (1.6 mm) (7.0 mm) (7.0 mm) Height Thickness 5.5 mm 5.5 mm 5.0 mm 5.0 mm 5.5 mm 5.5 mm 15.0 mm 17.5 mm 20.0 mm 22.5 mm 25.0 mm 30.0 mm 쑗 쑗 쑗 쑗 쑗 쑗 쑗 쑗 쑗 쑗 쑗 쑗 쑗 쑗 쑗 Detents (Resolution/Pulses) Without detents 12 points 24 points (12 pulses, 24 pulses) (12 pulses) (24 pulses) 쑗 쑗 쑗 쑗 쑗 쑗 쑗 쑗 쑗 쑗 쑗 쑗 쑗 쑗 ■ Specifications Mechanical Rotation Angle Shaft Pull/Push Strength Shaft Wobble Standard Type Rotation Torque Heavy Rotation Torque 360 ° (Endless) 80 N min. 0.7҂L/30 mm max. 3 mN·m to 20 mN·m 10 mN·m to 50 mN·m 12 points, 20 points, 24 points, without detents (Heavy rotation-torque without detents) Detents Output Signals Phase A and B Resolution 12, 20, 24 pulses/360 ° Rating 1 mA 5 Vdc, 1 mA 10 Vdc Contact Resistance 1 액 max. Electrical Chattering 2 ms max. Insulation Resistance 10 M액 min. (at 50 Vdc) Dielectric Withstanding Voltage 50 Vac for 1 minute Bouncing 5 ms max. Standard Type 30000 cycles min. Operating Life Heavy Rotation Torque 15000 cycles min. Endurance Operating Temperature –10 °C to +60 °C Storage Temperature –40 °C to +85 °C Minimum Quantity/Packing Unit L<25.0 mm 100 pcs. Polyethylene Bag(Bulk) L>26.0 mm 200 pcs. Polyethylene Bag(Bulk) Quantity/Carton L<25.0 mm 1000 pcs. L>26.0 mm 2000 pcs. Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. – EV48 – 00 Sep. 2010  PDF

Документация на серию EVEK

Дата модификации: 22.09.2010

Размер: 107.5 Кб

3 стр.

• найти EVEK.pdf

Товары серии EVEK

Наименование	i	Упаковка	Монтаж

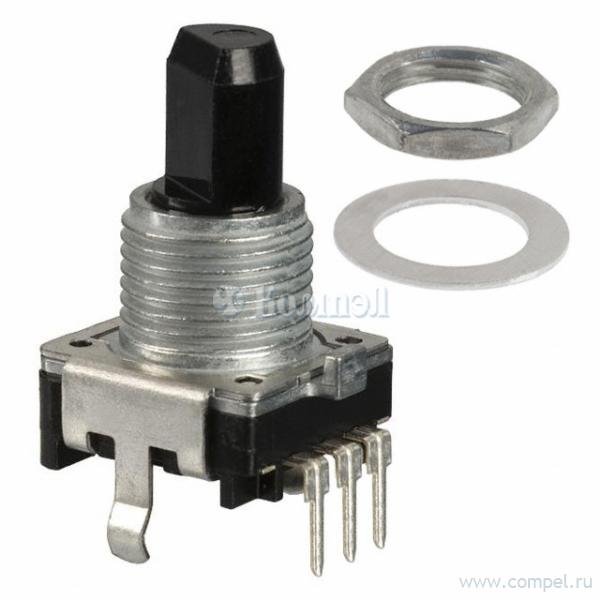

EVE-KC2F2024B (PAN)			на плату, на корпус, вертикально

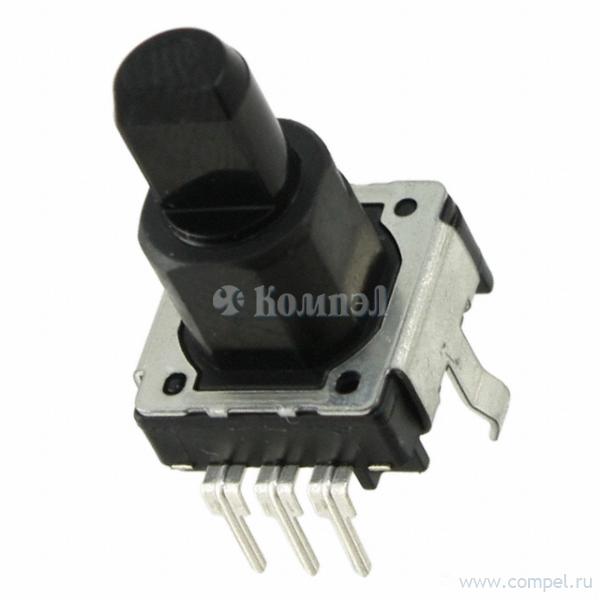

EVE-KE2F2024B (PAN)			на плату, выводной, вертикально
