Серия аналогово цифровых преобразователей (АЦП) MS514x

Ruimeng Technology

Общие характеристики

 Раздел Аналогово Цифровые Преобразователи (АЦП)
Разрядность АЦП
Частота преобразования
Тип аналого-цифрового преобразователя
Цифровой интерфейс
Конфигурация аналогового входа
Потребляемая мощность
Диапазон питающих напряжений аналоговой части
Диапазон рабочих температур

Документация на серию MS514x

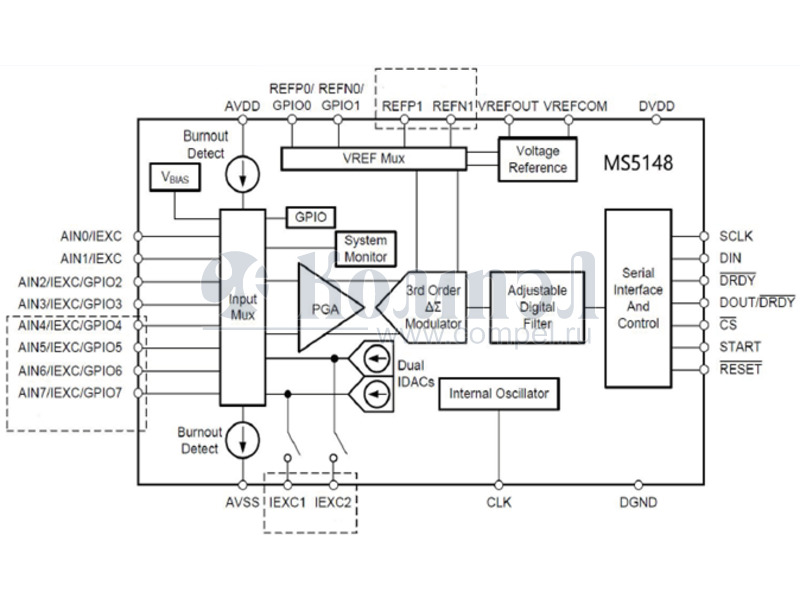

MS5146T/MS5147T/MS5148T 2kSPS, 24bit Σ-Δ ADC FEATURES PRODUCT DESCRIPTION 1B ⚫ Programmable Conversion Rate: 2kSPS (Max) ⚫ Integrated Input Multiplexer and is suitable for high-precision and low-cost ⚫ PGA Noise: 70nV (RMS)@PGA=128 measurement application. It integrates low-noise ⚫ Dual-Matched Programmable Current Source programmable gain amplifier, high-precision ADC ⚫ Integrated Low Temperature Drift 2.048V and internal oscillator. The MS5147T and MS5148T Voltage Reference integrate low temperature drift reference and dual- ⚫ Integrate Internal Temperature Sensor matched ⚫ Integrate Power Detection Circuit and VREF MS5148T supports four differential inputs. The Detection Circuit MS5147T supports two differential inputs. The Integrated Self-calibration and System MS5146T supports single differential input. Calibration addition, the MS514XT series also integrate sensor ⚫ Compatible with SPI Interface detection Burnout current source and bias voltage ⚫ Integrated 50Hz/60Hz Rejection Filter generator. ⚫ (Conversion Rate 20SPS) The MS5146T/MS5147T/MS5148T is a 24bit ADC ⚫ current source. The In The MS5146T is available in TSSOP16 package. The Analog Power Supply: MS5147T is available in TSSOP20 package. The Unipolar Power Supply: 2.7V to 5.25V MS5148T is available in TSSOP28 package. Bipolar Power Supply: ±2.5V ⚫ programmable PRODUCT SPECIFICATION 2 Operating Temperature Range: -40°C to 125°C APPLICATIONS Part Number Package Marking ⚫ Stress Detection MS5146T TSSOP16 MS5146T ⚫ Temperature Detection MS5147T TSSOP20 MS5147T ⚫ Gas Analysis and Blood Analysis MS5148T TSSOP28 MS5148T ⚫ Industrial Process Control and Instrumentation BLOCK DIAGRAM 4 AVDD REFP REFN DVDD Bias Voltage DRDY AINP Input Mux AINN PGA ADC Internal Clock Oscillator Excitation Current Source AVSS Serial Interface and Control Logic CLK DOUT/DRDY DIN SCLK CS START DGND RESET MS5146T Block Diagram Hangzhou Ruimeng Technology Co.,Ltd http://www.relmon.com VERSION: V0.9 2024.05.07 -PAGE 1- PDF
Документация на серию MS514x

MS5146T_5147T_5148T DataSheet Preview V0.9 2024.5.7

Дата модификации: 21.02.2025

Размер: 795.2 Кб

43 стр.

    Товары серии MS514x

    Наименование i Упаковка Корпус Каналов ИОН
    MS5146T (RUIMENG)

    		в линейках 10 шт TSSOP-16
    MS5147T (RUIMENG)

    		24 шт TSSOP-20
    MS5148T (RUIMENG)

    		24 шт TSSOP-28
