Серия DC-DC модульных преобразователей MDUT3-AXXXXS

Shineting

Общие характеристики

 Раздел DC-DC модульные преобразователи
Серия
Монтаж
Выходная мощность
Количество каналов
Комплекс защит
Напряжение изоляции вход-выход
Размер 22×12×9.5 мм
Рабочая температура

Документация на серию MDUT3-AXXXXS

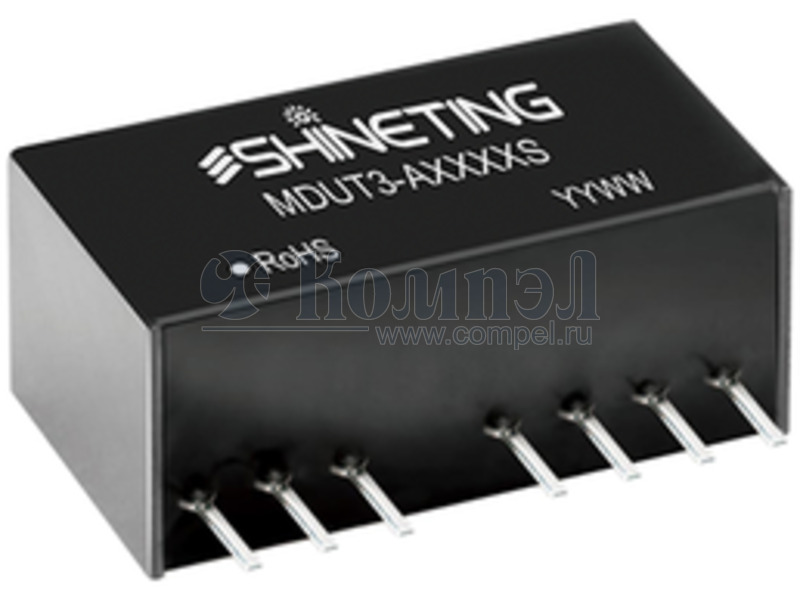

DC/DC Converter MDUT3-AXXXXS l Ultra compact SIP package l Wide 2:1 input voltage range l Operating ambient temperature range: -40℃ to +85℃ l I/O isolation test voltage: 1.5k VDC l Low output ripple & noise l Short circuit protection (self-recovery) l Remote On/Off l High power density l Meets EN60950 standard RoHS 3-Year Warranty Description MDUT3-AXXXXS series are isolated 3W DC-DC converter productions with a wide 2:1 input voltage range and input isolation is tested with 1500VDC. The product has a relatively compact SIP-8 plastic package, and features high efficiency, operating ambient temperature of -40℃ to +85℃, remote control, and continuous short-circuit protection. The smaller size and costeffective design make the converter an ideal solution in communication, instruments, and industrial electronics applications. Selection Guide Certification Part No. Input Voltage (Vdc) Nominal (Range) Input Voltage (Vdc) Max. MDUT3-A0505S Output Current （mA） Full Load Efficiency (%) Min./Typ. Capacitive Load(µF) Max. ±5 ±250/±13 72/74 1000 ±12 ±104/±5 75/77 470 ±15 ±83/±4 75/77 330 MDUT3-A0524S ±24 ±52/±3 74/76 220 MDUT3-A1205S ±5 ±300/±15 76/78 1000 ±9 ±167/±8 76/78 680 ±12 ±125/±6 77/79 470 ±15 ±100/±5 78/80 330 MDUT3-A0512S MDUT3-A0515S / Output Voltage (Vdc) MDUT3-A1209S MDUT3-A1212S MDUT3-A1215S 5 (4.5-9) 12 (9-18) 11 20 1 PDF
Документация на MDUT3-A0512S

Subject:

Дата модификации: 27.08.2024

Размер: 1.55 Мб

7 стр.

    Товары серии MDUT3-AXXXXS

    Наименование i Упаковка U вх Выход U вх ном. U1 U2 I1 I2 Шум КПД
    MDUT3-A0505S (SHINET)


    MDUT3-A0512S (SHINET)

    MDUT3-A0515S (SHINET)


    MDUT3-A0524S (SHINET)


    MDUT3-A1205S (SHINET)


    MDUT3-A1209S (SHINET)


    MDUT3-A1212S (SHINET)


    MDUT3-A1215S (SHINET)


    		 1 шт
    MDUT3-A2405S (SHINET)


    MDUT3-A2409S (SHINET)


    MDUT3-A2412S (SHINET)


    		 в линейках 22 шт
    MDUT3-A2415S (SHINET)


    		 в линейках 22 шт
    MDUT3-A4805S (SHINET)


    MDUT3-A4812S (SHINET)


    MDUT3-A4815S (SHINET)
