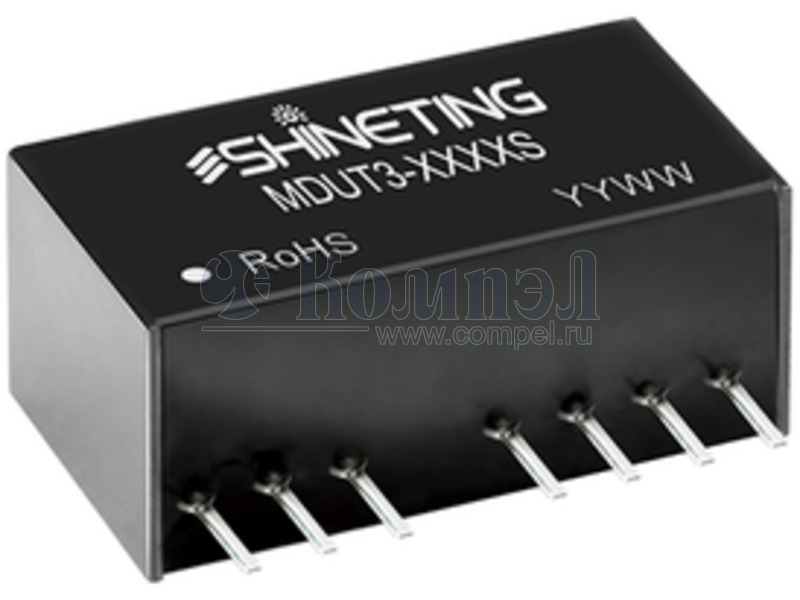

Серия DC-DC модульных преобразователей MDUT3-XXXXS

Shineting

Общие характеристики

 Раздел DC-DC модульные преобразователи
Серия
Монтаж
Выходная мощность
Количество каналов
Комплекс защит
Напряжение изоляции вход-выход
Размер 22×12×9.5 мм
Рабочая температура

Документация на серию MDUT3-XXXXS

DC/DC Converter ⚫ ltra compact SIP package MDUT3-XXXXS ⚫ Wide 2:1 input voltage range ⚫ Operating ambient temperature range: -40℃ to +85℃ ⚫ I/O isolation test voltage: 1.5k VDC ⚫ Low output ripple & noise ⚫ Short circuit protection (self-recovery) ⚫ Remote On/Off RoHS ⚫ High power density 3-Year Warranty Description MDUT3-XXXXS series are isolated 3W DC-DC converter productions with a wide 2:1 input voltage range and input isolation is tested with 1500VDC. The product has a relatively compact SIP-8 plastic package, and features high efficiency, operating ambient temperature of -4 0℃ to +85℃, remote control, and continuous short-circuit protection. The smaller size and costeffective design make the converter an ideal solution in communication, instruments, and industrial electronics applications. Selection Guide Certification Part No. Input Voltage (Vdc) Nominal (Range) Input Voltage (VDC) Max. Output Voltage (VDC) Output Current （mA） Full Load Efficiency (%) Min./Typ. Capacitive Load(µF) Max. MDUT3-0503S 3.3 758/38 66/68 1800 MDUT3-0505S 5 500/25 71/73 2200 9 278/14 72/74 1000 12 208/10 75/77 680 MDUT3-0515S 15 167/8 72/74 470 MDUT3-0524S 24 104/5 74/76 330 MDUT3-0509S / MDUT3-0512S 5 (4.5-9) 11 1 PDF
Документация на MDUT3-0503S

Дата модификации: 04.09.2024

Размер: 997 Кб

9 стр.
