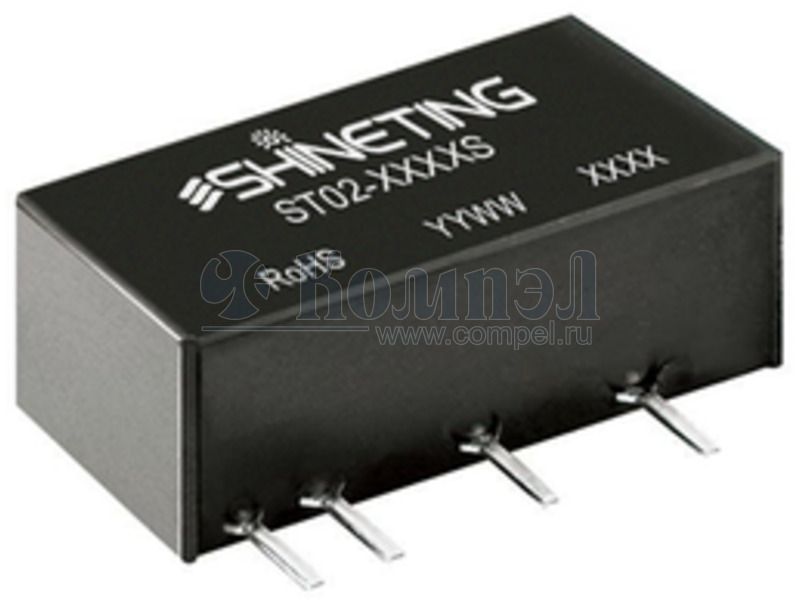

Серия DC-DC модульных преобразователей ST02-XXXXS

Shineting

Общие характеристики

 Раздел DC-DC модульные преобразователи
Серия
Монтаж
Выходная мощность
Количество каналов
Комплекс защит
Уровень пульсаций
Напряжение изоляции вход-выход
Размер 19.65×10.16×7.05 мм
Рабочая температура

Документация на серию ST02-XXXXS

DC/DC Converter ST02-XXXXS l Continuous short-circuit protection l No-load input current as low as 8mA l Operating ambient temperature range: -40℃ to +105℃ l High efficiency up to 86% l High power density l I/O isolation test voltage: 1.5k VDC l Industry standard pin-out RoHS 3-Year Warranty Description ST02-XXXXS series are specially designed for applications where an (two) isolated voltage is required in a distributed power supply system. They are suitable for: 1.The voltage of the input power supply is relatively stable with a variation of ±10%Vin or less; 2.An input to output isolation voltage of up to 1500VDC is necessary; 3.The requirement for a tight output regulation is not as strict. Selection Guide Certification / Part No. Input Voltage (Vdc) Nominal (Range) Output Voltage (Vdc) Output Current （mA） Max./Min. Full Load Efficiency (%) Min./Typ. Capacitive Load(µF) Max. ST02-0503S 3.3 400/40 74/78 2400 ST02-0505S 5 400/40 80/84 2400 7.2 278/28 80/84 1000 9 222/22 81/85 1000 ST02-0512S 12 167/17 81/85 560 ST02-0515S 15 133/13 82/86 560 ST02-0507S ST02-0509S 5 (4.5-5.5) 1 PDF
Документация на ST02-0503S

Subject:

Дата модификации: 27.08.2024

Размер: 1 Мб

8 стр.

    Товары серии ST02-XXXXS

    Наименование i Упаковка U вх Выход U вх ном. U1 I1 КПД
    ST02-0503S (SHINET)

    ST02-0505S (SHINET)


    ST02-0507S (SHINET)


    ST02-0509S (SHINET)


    ST02-0512S (SHINET)


    ST02-0515S (SHINET)


    ST02-1203S (SHINET)


    ST02-1205S (SHINET)


    ST02-1209S (SHINET)


    ST02-1212S (SHINET)


    		 в линейках 25 шт
    ST02-1215S (SHINET)


    ST02-1224S (SHINET)


    ST02-1505S (SHINET)


    ST02-1515S (SHINET)


    ST02-1524S (SHINET)


    ST02-2403S (SHINET)


    ST02-2405S (SHINET)


    		 в линейках 25 шт
    ST02-2409S (SHINET)


    ST02-2412S (SHINET)


    ST02-2415S (SHINET)


    ST02-2424S (SHINET)
