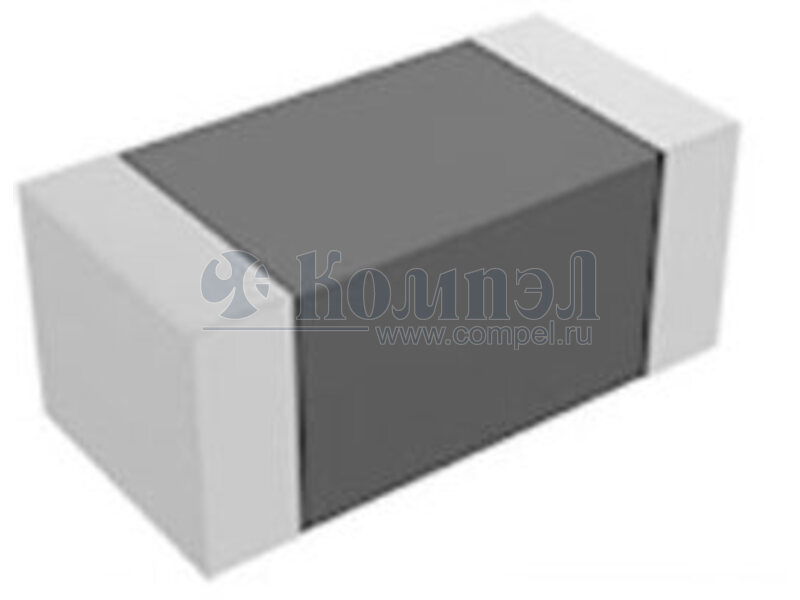

Серия термисторов SDNT

Общие характеристики

	Раздел	Термисторы
	Характеристика
	Номинальное сопротивление
	Допуск сопротивления
	Максимальный ток
	Рассеиваемая мощность
	Способ монтажа
	Размер	2×1.25×0.85 мм
	Рабочая температура

Документация на серию SDNT

Chip Temp. Sensing NTC Thermistor – SDNT Series Operating Temp. : -55℃~+125℃ FEATURES SMD type suitable for high density mounting Series of B constant for various applications Excellent solderability ● ● ● APPLICATIONS Telecommunication equipments such as cellular phone, automobile phone, cordless phone, etc. Office automation such as printer, facsimile, word processor, etc. Consumer electronics such as VCR, DVD, CD players, etc. ● ● ● PRODUCT IDENTIFICATION SDNT 1005 X 103 F 3380 F T F ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ② ① External Dimensions (L×W) (mm) 0603 [0201] 0.6×0.3 Type SDNT ③ Chip NTC Thermistor 1005 [0402] Internal Code X 1.0×0.5 1608 [0603] 1.6×0.8 2012 [0805] 2.0×1.25 ⑥ ④ ⑤ Zero-power Resistance Example Nominal Value 101 0.1kΩ 103 10kΩ F H J K Tolerance of Resistance ±1% ±3% ±5% ±10% ⑦ B Constant (25-50℃) Example Nominal Value 3380 3380K 4250 4250K ⑨ ⑧ Tolerance of B Constant F ±1% H ±3% Packing Tape & Reel T Hazardous Substance Free Products F SHAPE AND DIMENSIONS Unit: mm [inch] Sunlord Type L W T a SDNT0603 0.6±0.05 0.3±0.05 0.3±0.05 0.15±0.05 [0201] [.024±.002] [.012±.002] [.012±.002] [.006±.002] SDNT1005 1.0±0.15 0.5±0.15 0.5±0.15 0.25±0.1 [0402] [.039±.006] [.020±.006] [.020±.006] [.010±.004] SDNT1608 1.6±0.15 0.8±0.15 0.8±0.15 0.3±0.2 [0603] [.063±.006] [.031±.006] [.031±.006] [.012±.008] SDNT2012 2.0±0.2 1.25±0.2 0.85±0.2 0.5±0.3 [0805] [.079±.008] [.049±.008] [.033±.008] [.020±.012] Specifications subject to change without notice. Please check our website for latest information. Revised 2012/05/10 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com

PDF

Документация на SDNT0603X104F4250FTF

Microsoft Word - 52-SDNT series of Chip Temp.sensor NTC Thermistor.doc

Дата модификации: 29.05.2012

Размер: 149.4 Кб

5 стр.

найти SDNT.pdf
