Серия DC-DC модульных преобразователей TEL3

Общие характеристики

	Раздел	DC-DC модульные преобразователи

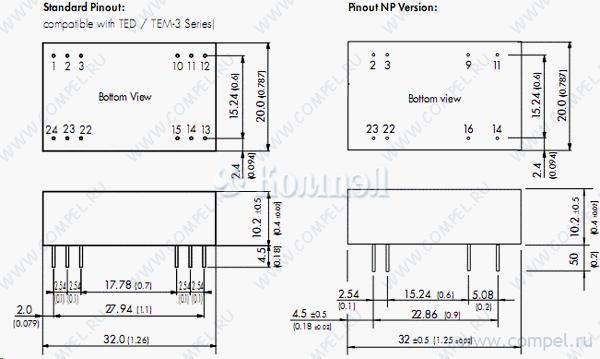

	Монтаж
	Выходная мощность
	Схема параллельного включения
	Сертификаты медицинские

Документация на серию TEL3

Baar, 11. December 2014 Cleaning Guideline Scope This guideline covers hermetically sealed board mounted Traco converters. We do not recommend washing insert moulded products, where it is difficult to get them dry inside. Please check also, if there is an additional comment about washing in the datasheet or application note of the concerned product. Note: We do generally not recommend washing or cleaning electronic components. You should avoid it, if it is not absolutely necessary. It may reduce the reliability of the involved components in your application. Board cooling prior to cleaning process Converters and their associated application PCB assemblies should not be wash-cleaned after soldering until they had the opportunity to cool within the cleaning solution temperature. This will prevent vacuum absorption of the cleaning liquid into the module between the pins and the potting during cooling. Cleaning agents Cleaning method Classification Cleaning agents Water type Deionized water Ultrasonic wave Solvent type IPA Note: In general, the liquid temperature shall be less than 60°C. Cleaning process In aqueous cleaning, it is preferred to have an in-line cleaner system consisting of several cleaning stages (prewash, wash, rinse, final rinse, and drying). Deionised (DI) water is recommended for aqueous cleaning; the minimum resistively level is 1MΩ-cm. Tap-water quality varies per region in terms of hardness, chloride, and solid contents. Therefore, the use of tap water is not recommended for aqueous cleaning. Note: The total time of ultrasonic wave shall be less than 3 minutes. Drying After cleaning, assure that everything will be dry enough, that the moisture and other potential contaminants will not be present anymore. Use an air circulating chamber (e.g. 0.5-0.7m3/s) and thermal oven at 80-100°C (during 20-120min, depending on assembling, structure, components). Handheld air guns are not recommended. It is on customer’s own responsibility to ensure all components are dry. Product post-wash external appearance The marking or date-code may fade or disappear after cleaning. That does not concern the performance of the converter. Andreas Flühler, Head of Technical Services

PDF

Рекомендации по промывке и сушке

Cleaning Guideline

Дата модификации: 02.02.2021

Размер: 79 Кб

1 стр.

DC/DC Converters TEL 3 Series, 3 Watt CB Scheme Features ◆ Wide 2:1 and 3:1 input range ◆ High efficiency up to 81% ◆ DIL-24 plastic package ◆ Indefinite short-circuit protection ◆ I/O isolation 1500 VDC ◆ Available with industry standard UL 60950-1 Pinout (NP) ◆ Operating temperature range –40°C to +85°C ◆ 3-year product warranty The TEL 3 series is a range of isolated 3 Watt converters in DIL-24 package offering wide 2:1and 3:1 input voltage ranges. Further features are high efficiency which allows operation temperature up to 71°C at full load and low output noise. This product series provides an economical solution for many cost critical applications in industrial and consumer electronics. Models Ordercode * TEL 3-0511 * TEL 3-0512 TEL 3-0513 * TEL 3-0522 * TEL 3-0523 * TEL 3-1211 * TEL 3-1212 TEL 3-1213 * TEL 3-1222 * TEL 3-1223 TEL 3-2011 TEL 3-2012 TEL 3-2013 TEL 3-2022 TEL 3-2023 * TEL 3-2411 * TEL 3-2412 TEL 3-2413 * TEL 3-2422 * TEL 3-2423 TEL 3-4811 TEL 3-4812 TEL 3-4813 TEL 3-4822 TEL 3-4823 Input voltage range 4.5 – 9.0 VDC (nominal 5 VDC) 9 – 18 VDC (nominal 12 VDC) 10 – 30 VDC (nominal 20 VDC) 18 – 36 VDC (nominal 24 VDC) 36 – 75 VDC (nominal 48 VDC) designs Output voltage 5 VDC 12 VDC 15 VDC ±12 VDC ±15 VDC 5 VDC 12 VDC 15 VDC ±12 VDC ±15 VDC 5 VDC 12 VDC 15 VDC ±12 VDC ±15 VDC 5 VDC 12 VDC 15 VDC ±12 VDC ±15 VDC 5 VDC 12 VDC 15 VDC ±12 VDC ±15 VDC Output current max. 600 mA 250 mA 200 mA ±125 mA ±100 mA 600 mA 250 mA 200 mA ±125 mA ±100 mA 600 mA 250 mA 200 mA ±125 mA ±100 mA 600 mA 250 mA 200 mA ±125 mA ±100 mA 600 mA 250 mA 200 mA ±125 mA ±100 mA Efficiency typ. 70 % 74 % 74 % 74 % 74 % 76 % 80 % 80 % 80 % 80 % 76 % 80 % 80 % 80 % 80 % 77 % 81 % 81 % 81 % 81 % 77 % 81 % 81 % 81 % 81 % for new * add suffix -NP formmodels mendedwith industry standard pinout ot reco n http://www.tracopower.com Page 1 of 3

PDF

Документация на серию TEL3

TEL 3 Datasheet

Дата модификации: 17.08.2012

Размер: 215 Кб

3 стр.

DC/DC Converters TEL 3 Series, 3 Watt RoHS compliant Features ◆ Wide 2:1 and 3:1 Input Range ◆ High Efficiency up to 81% ◆ DIL-24 Plastic Package ◆ Indefinite Short-Circuit Protection ◆ I/O Isolation 1500 VDC ◆ Available with Industry Standard UL 60950-1 Pinout (NP) ◆ Operating Temp. Range -25°C to +75°C ◆ 3 Year Product Warranty The TEL 3 series is a range of isolated 3 Watt converters in DIL-24 package offering wide 2:1and 3:1 input voltage ranges. Further features are high efficiency which allows operation temperature up to 75°C at full load and low output noise. This product series provides an economical solution for many cost critical applications in industrial and consumer electronics. Models Ordercode * TEL 3-0511 (NP) * TEL 3-0512 (NP) TEL 3-0513 * TEL 3-0522 (NP) * TEL 3-0523 (NP) * TEL 3-1211 (NP) * TEL 3-1212 (NP) TEL 3-1213 * TEL 3-1222 (NP) * TEL 3-1223 (NP) TEL 3-2011 TEL 3-2012 TEL 3-2013 TEL 3-2022 TEL 3-2023 * TEL 3-2411 (NP) * TEL 3-2412 (NP) TEL 3-2413 * TEL 3-2422 (NP) * TEL 3-2423 (NP) TEL 3-4811 TEL 3-4812 TEL 3-4813 TEL 3-4822 TEL 3-4823 Input voltage range 4.5 – 9.0 VDC 9 – 18 VDC 10 – 30 VDC 18 – 36 VDC 36 – 75 VDC Output voltage 5 VDC 12 VDC 15 VDC ±12 VDC ±15 VDC 5 VDC 12 VDC 15 VDC ±12 VDC ±15 VDC 5 VDC 12 VDC 15 VDC ±12 VDC ±15 VDC 5 VDC 12 VDC 15 VDC ±12 VDC ±15 VDC 5 VDC 12 VDC 15 VDC ±12 VDC ±15 VDC Output current max. 600 mA 250 mA 200 mA ± 125 mA ± 100 mA 600 mA 250 mA 200 mA ± 125 mA ± 100 mA 600 mA 250 mA 200 mA ± 125 mA ± 100 mA 600 mA 250 mA 200 mA ± 125 mA ± 100 mA 600 mA 250 mA 200 mA ± 125 mA ± 100 mA Efficiency typ. 70 % 74 % 74 % 74 % 74 % 76 % 80 % 80 % 80 % 80 % 76 % 80 % 80 % 80 % 80 % 77 % 81 % 81 % 81 % 81 % 77 % 81 % 81 % 81 % 81 % * suffix NP (Example: TEL 3-2411NP): models available with Industry Standard Pinout http://www.tracopower.com Page of 3

PDF

Документация на серию TEL3

TEL 3 Datasheet

Дата модификации: 20.09.2006

Размер: 116 Кб

3 стр.

найти TEL3.pdf

Товары серии TEL3

Наименование	Упаковка	Возможности	Защита	I1	Шум	КПД	Uиз. вх-вых	Размер	U2	I2
TEL 3-0511 (TRACO)	в линейках 10 шт							32×20×10.2 мм	—	—
TEL 3-0511NP (TRACO)								32×20×10.2 мм	—	—
TEL 3-0512 (TRACO)	в линейках 10 шт							32×20×10.2 мм	—	—
TEL 3-0512NP (TRACO)								32×20×10.2 мм	—	—
TEL 3-0513 (TRACO)	1 шт							32×20×10.2 мм	—	—
TEL 3-0522 (TRACO)	в линейках 10 шт							32×20×10.2 мм
TEL 3-0522NP (TRACO)								32×20×10.2 мм
TEL 3-0523 (TRACO)	1 шт							32×20×10.2 мм
TEL 3-0523NP (TRACO)								32×20×10.2 мм
TEL 3-1211 (TRACO)	в линейках 10 шт							32×20×10.2 мм	—	—
TEL 3-1211NP (TRACO)								32×20×10.2 мм	—	—
TEL 3-1212 (TRACO)	1 шт							32×20×10.2 мм	—	—
TEL 3-1212NP (TRACO)								32×20×10.2 мм	—	—
TEL 3-1213 (TRACO)	в линейках 10 шт							32×20×10.2 мм	—	—
TEL 3-1222 (TRACO)	в линейках 10 шт							32×20×10.2 мм
TEL 3-1222NP (TRACO)								32×20×10.2 мм
TEL 3-1223 (TRACO)	1 шт							32×20×10.2 мм
TEL 3-1223NP (TRACO)								32×20×10.2 мм
TEL 3-2011 (TRACO)	в линейках 10 шт							32×20×10.2 мм	—	—
TEL 3-2012 (TRACO)								32×20×10.2 мм	—	—
TEL 3-2013 (TRACO)								32×20×10.2 мм	—	—
TEL 3-2022 (TRACO)								32×20×10.2 мм
TEL 3-2023 (TRACO)								32×20×10.2 мм
TEL 3-2411 (TRACO)	в линейках 10 шт		короткого замыкания, перенапряжения, перегрева					32×20×10.2 мм	—	—
TEL 3-2411NP (TRACO)	в линейках 10 шт							32×20×10.2 мм	—	—
TEL 3-2412 (TRACO)	в линейках 10 шт							32×20×10.2 мм	—	—
TEL 3-2412NP (TRACO)								32×20×10.2 мм	—	—
TEL 3-2413 (TRACO)	в линейках 10 шт							32×20×10.2 мм	—	—
TEL 3-2413 PBF (TRACO)		—	—	—	—	—	—	32×20×10.7 мм	—	—
TEL 3-2422 (TRACO)	10 шт							32×20×10.2 мм
TEL 3-2422NP (TRACO)								32×20×10.2 мм
TEL 3-2423 (TRACO)	в линейках 10 шт							32×20×10.2 мм
TEL 3-2423NP (TRACO)								32×20×10.2 мм
TEL 3-4811 (TRACO)	в линейках 10 шт							32×20×10.2 мм	—	—
TEL 3-4812 (TRACO)	10 шт							32×20×10.2 мм	—	—
TEL 3-4813 (TRACO)								32×20×10.2 мм	—	—
TEL 3-4822 (TRACO)								32×20×10.2 мм
TEL 3-4823 (TRACO)	1 шт							32×20×10.2 мм
TEL3-0511 (TRACO)		DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
TEL3-0511-NP (TRACO)		DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	—	—	—	—	—	32×20×10.7 мм	—	—
TEL3-0512-NP (TRACO)		DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	—	—	—	—	—	32×20×10.7 мм	—	—
TEL3-0513 (TRACO)		DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
TEL3-0522 (TRACO)		DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
TEL3-0522-NP (TRACO)		DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid	—	—	—	—	—	32×20×10.7 мм	—	—
TEL3-0523-NP (TRACO)		DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid	—	—	—	—	—	32×20×10.7 мм	—	—
TEL3-1211 (TRACO)		DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
TEL3-1211-NP (TRACO)		DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	—	—	—	—	—	32×20×10.7 мм	—	—
TEL3-1212 (TRACO)		DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
TEL3-1212-NP (TRACO)		DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	—	—	—	—	—	32×20×10.7 мм	—	—
TEL3-1213 (TRACO)		DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
TEL3-1222-NP (TRACO)		DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid	—	—	—	—	—	32×20×10.7 мм	—	—
TEL3-1223 (TRACO)		DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
TEL3-1223-NP (TRACO)		DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid	—	—	—	—	—	32×20×10.7 мм	—	—
TEL3-2011 (TRACO)		DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
TEL3-2012 (TRACO)		DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
TEL3-2013 (TRACO)		DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
TEL3-2022 (TRACO)		DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
TEL3-2023 (TRACO)		DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
TEL3-2411-NP (TRACO)		DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	—	—	—	—	—	32×20×10.7 мм	—	—
TEL3-2412-NP (TRACO)		DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	—	—	—	—	—	32×20×10.7 мм	—	—
TEL3-2422 (TRACO)		DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
TEL3-2422-NP (TRACO)		DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid	—	—	—	—	—	32×20×10.7 мм	—	—
TEL3-2423 (TRACO)		DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
TEL3-2423-NP (TRACO)		DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid	—	—	—	—	—	32×20×10.7 мм	—	—
TEL3-4811 (TRACO)		DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
TEL3-4812 (TRACO)		DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
TEL3-4813 (TRACO)		DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
TEL3-4822 (TRACO)		DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
TEL3-4823 (TRACO)		DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid	—		—	—	—	32×20×10.7 мм	—	—
