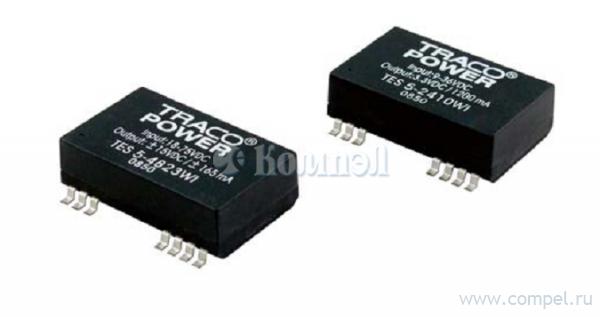

Серия DC-DC модульных преобразователей TES5WI

Общие характеристики

Раздел DC-DC модульные преобразователи
Монтаж
Выходная мощность
Возможности
Комплекс защит
Уровень пульсаций
Напряжение изоляции вход-выход
Размер 33.4×25.6×10.2 мм
Рабочая температура

Документация на серию TES5WI

DC/DC Converters TES 5WI Series, 5 Watt Features ◆ Compact SMD package ◆ 33.4 x 25.6 mm footprint ◆ Ultra-wide 4:1 input voltage range ◆ I/O isolation 1500 VDC ◆ Operating temp. range –40°C to +71°C ◆ Short circuit protection ◆ Input filter to meet EN 55022, class A ◆ Remote On/Off ◆ High accuracy of pin co-planarity ◆ 3-year product warranty The TES-5WI series is a family of high performance 5W dc/dc-converter modules in a low profile SMD package with compact dimensions. The 14 modules feature ultrawide 4:1 input ranges with tightly regulated output voltage. High efficiency allows an operating temperature range of –40 to +71°C at full load. Further features are built-in EMI-filter to meet EN 55022 class A without external components and remote On/Off control. The products comply with IPC J-STD-020D and are qualified for high temperature lead-free reflow solder process. Models Order code Input voltage Output voltage Output current max. Efficiency typ. TES 5-2410WI 3.3 VDC 1‘200 mA 76 % TES 5-2411WI 5 VDC 1‘000 mA 80 % TES 5-2412WI 12 VDC 420 mA 83 % 15 VDC 335 mA 83 % ±5 VDC ±500 mA 80 % TES 5-2422WI ±12 VDC ±210 mA 83 % TES 5-2423WI ±15 VDC ±165 mA 83 % TES 5-4810WI 3.3 VDC 1‘200 mA 76 % TES 5-4811WI 5 VDC 1‘000 mA 80 % TES 5-2413WI TES 5-2421WI TES 5-4812WI TES 5-4813WI TES 5-4821WI 9 – 36 VDC (24 VDC nominal) 18 – 75 VDC (48 VDC nominal) 12 VDC 420 mA 83 % 15 VDC 335 mA 83 % ±5 VDC ±500 mA 80 % TES 5-4822WI ±12 VDC ±210 mA 83 % TES 5-4823WI ±15 VDC ±165 mA 83 % http://www.tracopower.com Page 1 of 3 PDF
Документация на TES 5-2410WI

Дата модификации: 06.10.2021

Размер: 244.1 Кб

3 стр.

Baar, 11. December 2014 Cleaning Guideline Scope This guideline covers hermetically sealed board mounted Traco converters. We do not recommend washing insert moulded products, where it is difficult to get them dry inside. Please check also, if there is an additional comment about washing in the datasheet or application note of the concerned product. Note: We do generally not recommend washing or cleaning electronic components. You should avoid it, if it is not absolutely necessary. It may reduce the reliability of the involved components in your application. Board cooling prior to cleaning process Converters and their associated application PCB assemblies should not be wash-cleaned after soldering until they had the opportunity to cool within the cleaning solution temperature. This will prevent vacuum absorption of the cleaning liquid into the module between the pins and the potting during cooling. Cleaning agents Cleaning method Classification Cleaning agents Water type Deionized water Ultrasonic wave Solvent type IPA Note: In general, the liquid temperature shall be less than 60°C. Cleaning process In aqueous cleaning, it is preferred to have an in-line cleaner system consisting of several cleaning stages (prewash, wash, rinse, final rinse, and drying). Deionised (DI) water is recommended for aqueous cleaning; the minimum resistively level is 1MΩ-cm. Tap-water quality varies per region in terms of hardness, chloride, and solid contents. Therefore, the use of tap water is not recommended for aqueous cleaning. Note: The total time of ultrasonic wave shall be less than 3 minutes. Drying After cleaning, assure that everything will be dry enough, that the moisture and other potential contaminants will not be present anymore. Use an air circulating chamber (e.g. 0.5-0.7m3/s) and thermal oven at 80-100°C (during 20-120min, depending on assembling, structure, components). Handheld air guns are not recommended. It is on customer’s own responsibility to ensure all components are dry. Product post-wash external appearance The marking or date-code may fade or disappear after cleaning. That does not concern the performance of the converter. Andreas Flühler, Head of Technical Services PDF
Рекомендации по промывке и сушке

Cleaning Guideline

Дата модификации: 02.02.2021

Размер: 79 Кб

1 стр.

DC/DC Converters TES 5WI Series, 5 Watt Features ◆ Compact SMD package ◆ 33.4 x 25.6 mm footprint ◆ Ultra-wide 4:1 input voltage range ◆ I/O isolation 1500 VDC ◆ Operating temp. range –40°C to +71°C ◆ Short circuit protection ◆ Input filter to meet EN 55022, class A ◆ Remote On/Off ◆ High accuracy of pin co-planarity ◆ Qualified for leadfree reflow solder UL 60950-1 pending process according IPC/JEDEC J-STD-020D ◆ 3-year product warranty The TES-5WI series is a family of high performance 5W dc/dc-converter modules in a low profile SMD package with compact dimensions. The 14 modules feature ultrawide 4:1 input ranges with tightly regulated output voltage. High efficiency allows an operating temperature range of –40 to +71°C at full load. Further features are built-in EMI-filter to meet EN 55022 class A without external components and remote On/Off control. The products comply with IPC J-STD-020D and are qualified for high temperature lead-free reflow solder process. Models Order code Input voltage Output voltage Output current max. Efficiency typ. TES 5-2410WI 3.3 VDC 1‘200 mA 76 % TES 5-2411WI 5 VDC 1‘000 mA 80 % TES 5-2412WI TES 5-2413WI TES 5-2421WI 9 – 36 VDC (24 VDC nominal) 12 VDC 420 mA 83 % 15 VDC 335 mA 83 % ±5 VDC ±500 mA 80 % TES 5-2422WI ±12 VDC ±210 mA 83 % TES 5-2423WI ±15 VDC ±165 mA 83 % TES 5-4810WI 3.3 VDC 1‘200 mA 76 % TES 5-4811WI 5 VDC 1‘000 mA 80 % TES 5-4812WI TES 5-4813WI TES 5-4821WI 18 – 75 VDC (48 VDC nominal) 12 VDC 420 mA 83 % 15 VDC 335 mA 83 % ±5 VDC ±500 mA 80 % TES 5-4822WI ±12 VDC ±210 mA 83 % TES 5-4823WI ±15 VDC ±165 mA 83 % http://www.tracopower.com Page 1 of 3 PDF
Документация на серию TES5WI

Дата модификации: 11.03.2011

Размер: 231 Кб

3 стр.

    Товары серии TES5WI

    Наименование i Упаковка Каналов U вх Выход U вх ном. U1 I1 КПД U2 I2
    TES 5-2410WI (TRACO) DC-DC модульный преобразователь - Монтаж: на плату, SMD; P вых: 5 Вт; #: 1; U вх: 9...3... в линейках 10 шт
    TES 5-2411WI (TRACO) DC-DC модульный преобразователь - Монтаж: на плату, SMD; P вых: 5 Вт; #: 1; U вх: 9...3... в линейках 10 шт
    TES 5-2412WI (TRACO) 1 шт
    TES 5-2413WI (TRACO) DC-DC модульный преобразователь - Монтаж: на плату, SMD; P вых: 5 Вт; #: 1; U вх: 9...3... в линейках 10 шт
    TES 5-2421WI (TRACO) DC-DC модульный преобразователь - Монтаж: на плату, SMD; P вых: 5 Вт; #: 2; U вх: 9...3... в линейках 10 шт
    TES 5-2422WI (TRACO)
    TES 5-2423WI (TRACO) DC-DC модульный преобразователь - Монтаж: на плату, SMD; P вых: 5 Вт; #: 2; U вх: 9...3... 1 шт
    TES 5-4810WI (TRACO) 1 шт
    TES 5-4811WI (TRACO) 10 шт
    TES 5-4812WI (TRACO)
    TES 5-4813WI (TRACO)
    TES 5-4822WI (TRACO) 10 шт
    TES 5-4823WI (TRACO) 10 шт
