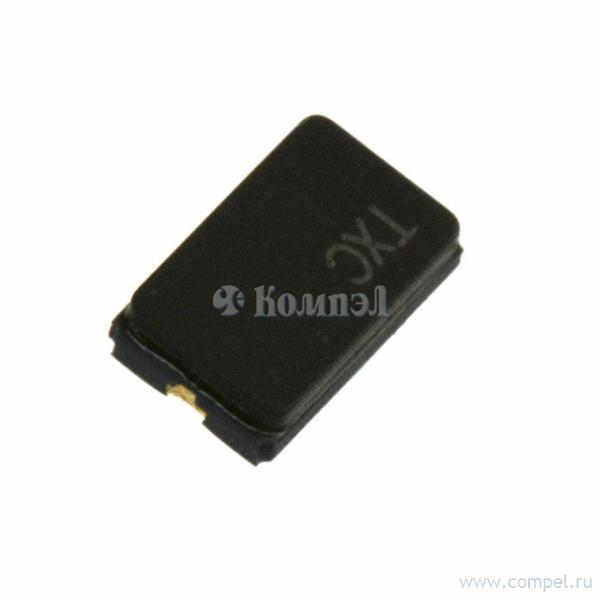

Серия кварцевых резонаторов 7A

TXC Co.

Общие характеристики

	Раздел	Кварцевые резонаторы
	Стабильность при 25°C
	Стабильность в рабочем температурном диапазоне
	Монтаж
	Размер	5×3.2×1.35 мм

Документация на серию 7A

Think of Frequency Think of Quartz Crystals Series SMD Glass Sealing Crystals 5.0 x 3.2 x 1.2 mm 7A Series come visit our site http://www.txccorp.com Features 4.3 1 TXC U 29 H 2 pads SMD glass sealed crystal units. High reliable environmental performance. Tight tolerance and stability parts are available. Designed for automatic mounting and reﬂow soldering. Reasonable cost and good delivery performance. The best choice of portable PC, PDA, DSC, and USB interface card. Contains Pb in sealing glass exempted by RoHS directive. Electrical Specifications Remark : Speciﬁcation subject to change without prior notice. Please conﬁrm with our sales. http://www.txccorp.com Item / Type 7A Frequency Range 8 ~ 54 MHz Frequency Tolerance (at 25 ) 30 ppm, or specify Frequency Stability Over Operating Temperature Range 30 ppm, or specify Operating Temperature Range -10 ~ +70 Shunt Capacitance (C0) 5 pF Max. Drive Level 1 ~ 200 Load Capacitance Aging (at 25 , or specify W (100 W typical) Series, 6 pF, 10 pF, 16 pF, 20 pF, or specify ) 3 ppm / year Max. Storage Temperature Range - 40 ~ + 85 Equivalent Series Resistance(ESR) Fundamental 8 ~ 12 MHz 80 Max. 12 ~ 54 MHz 50 Max. Dimensions Units: mm 16

Документация на 7A-10.000MAAE-T

Дата модификации: 09.07.2015

Размер: 978.7 Кб

1 стр.

Quartz Crystals 5 x 3.2 mm SMD GLASS CRYSTAL 7A SERIES Features > 2 pads SMD glass sealed crystal units. Quartz Crystals > High reliable environmental performance. > Tight tolerance and stability parts are available. > Designed for automatic mounting and reflow soldering. > Reasonable cost and good delivery performance. > The best choice of portable PC, PDA, DSC, and USB interface card. > Contains Pb in sealing glass exempted by RoHS directive. Electrical Specifications Item / Type 7A Frequency Range 8 ~ 80 MHz Frequency Tolerance (at 25 ºC) Frequency Stability Over Operating Temperature Range Operating Temperature Range Shunt Capacitance (C0) ± 30 ppm, or specify ± 30 ppm (-20 ~ +70 ºC), or specify - 40 ~ + 85 ºC 5 pF Max. Drive Level 1 ~ 200 μW (100 μW typical) Load Capacitance 18 pF, or specify Aging (at 25 ºC) ± 3 ppm / year Max. Storage Temperature Range - 55 ~ + 125 ºC Equivalent Series Resistance(ESR) Fudamanetal 8 ~ 12 MHz 80 Ω Max. 13 ~ 54 MHz 50 Ω Max. 3rd Overtone 40 ~ 80 MHz 100 Ω Max. Dimensions Units:mm Remark : Specification subject to change without prior notice. Please confirm with our sales. http://www.txccorp.com 12

Документация на серию 7A

12.13.ai

Дата модификации: 07.01.2010

Размер: 503.9 Кб

1 стр.
