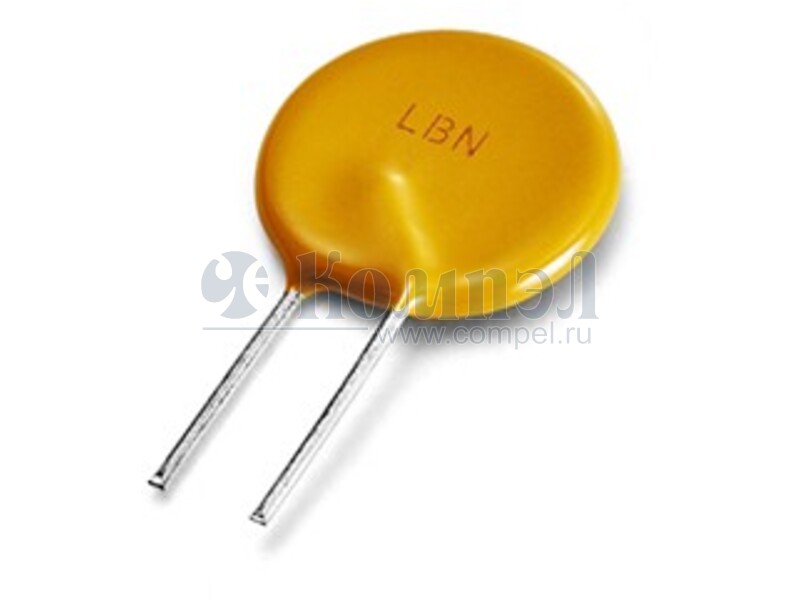

Серия самовосстанавливающиеся предохранители LBN

WAYON

Общие характеристики

 Раздел Самовосстанавливающиеся предохранители
Рабочее напряжение (max)
Корпус

Документация на серию LBN

DOCUMENT: R20208 REV LETTER: C PAGE NO: 1 OF 2 REV DATE: 2020-09-24 PART NUMBER: LBN050F Polymer PTC Devices Wayon Electronics Co., Ltd. No.1001,Shiwan 7th Road,Pudong,Shanghai 201202,P.R.China Tel: 86-21-50968308 Fax: 86-21-50968310 R-line resettable fuses E-mail: market@way-on.com Http://www.way-on.com Features  Radial leaded devices  High voltage surge capabilities  Lead-free and compliant with the European Union RoHS Directive (EU)2015/863 Product Dimensions (mm) Part number LBN050F A B C D E F Lead Max. Max. Typ. Min. Max. Typ. Size(φ) 6.9 9.9 5.1 7.6 4.6 2.2 0.5 Marking system * Lead materials: Tin-plate metal wire. * Lead-free devices are available, the right logo is lead-free mark of wayon. Electrical Characteristics IH IT Ttrip Vmax Imax Pd typ Rmin (A) (A) (S) (V) (A) (W) (Ω) 0.05 0.12 10.0 135 20.0 1.0 18.5 Rmax Part number LBN050F (Ω) 31.0 IH=Hold current: maximum current at which the device will not trip at 25℃ still air. IT=Trip current: minimum current at which the device will always trip at 25℃ still air. Ttrip=Maximum time to trip at 5 times hold current. Vmax=Maximum voltage device can withstand without damage at rated current. Imax=Maximum fault current device can withstand without damage at rated voltage. Pdtyp=Typical power dissipation: typical amount of power dissipated by the device when in state air environment. Rmin=Minimum device resistance at 25℃ prior to tripping. Rmax= Maximum device resistance at 25℃ prior to tripping. Thermal Derating Chart-IH(A) Maximum ambient operating temperatures(℃) Part number LBN050F -40 -20 0 25 40 50 60 70 85 0.08 0.07 0.06 0.05 0.04 0.03 0.03 0.02 0.02 Package Information Bulk: 1000pcs per bag. Specifications are subject to change without notice. Page 1 of 2 PDF
Документация на LBN050F

Shang Hai Wayon Thermo-Electro

Дата модификации: 29.09.2022

Размер: 146.7 Кб

2 стр.

    Товары серии LBN

    Наименование i Упаковка I удерж. I сраб. I макс R Время
    LBN050F (WAYON)

    		1000 шт
    LBN080F (WAYON)

    LBN100F (WAYON)

    LBN1100F (WAYON)

    LBN120F (WAYON)

    		1000 шт
    LBN1250F (WAYON)

    LBN1350F (WAYON)

    LBN150F (WAYON)

    LBN1600F (WAYON)

    LBN160F (WAYON)

    LBN1850F (WAYON)

    LBN2000F (WAYON)

    LBN200F (WAYON)

    LBN2500F (WAYON)

    LBN250F (WAYON)

    		1000 шт
    LBN3000F (WAYON)

    LBN300F (WAYON)

    LBN330F (WAYON)

    LBN350F (WAYON)

    LBN3750F (WAYON)

    LBN400F (WAYON)

    LBN500F (WAYON)

    LBN550F (WAYON)

    		500 шт
    LBN650F (WAYON)

    LBN750F (WAYON)

    LBN800F (WAYON)

    LBN900F (WAYON)
