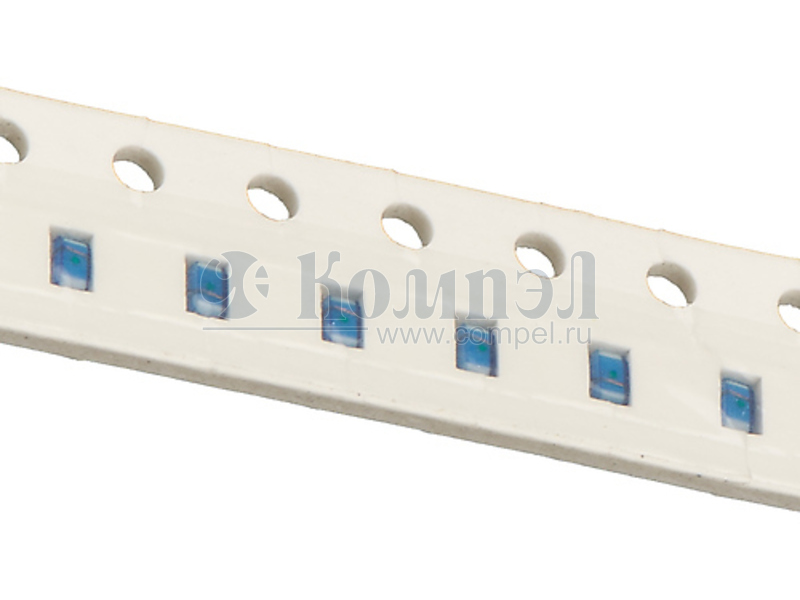

Серия дросселей LCN

Yageo

Общие характеристики

 Раздел Дроссели
Экранирование магнитное
Температура рабочая

Документация на серию LCN

Yageo corporation INDUCTORS / BEADS SMD Wire Wound Chip Inductors LCN Series APPLICATIONS RF products for Cellular Phone, GPS Receiver, Base Station, Repeater, Wireless LAN/Mouse/Keyboard/ Earphone, Remote Control, Security System and other RF modules. OUTLINE Based on our technical expertise and skill in accurately wounding, these chip inductors are designed as filtering, impedance matching, resonance and choke circuits for RF designers. PRODUCT IDENTIFICATION LCN ☐☐☐☐☐ - ☐☐☐☐ - ☐ Internal No. Tolerance Inductance Packaging Style Dimensions Product Symbol ■ Packaging: T = Tape and Reel The standard series as well as custom design to meet your needs of telecom & wireless products. FEATURES Ceramic body and wire wound construction provide highest SRFs. These ultra-compact inductors provide exceptional Q values, even at high frequencies. Their ceramic construction delivers the highest possible SRFs as well as excellent Q values. The non-magnetic coil form also assures the utmost in thermal stability, predictability and batch consistency. LCN series has been designed especially for the needs of customer design. SHAPES AND DIMENSIONS TYPE B E F G A B C Max. Max. Max. inch 0.071 0.044 mm 1.80 1.12 LCN0805 inch 0.093 0.068 mm 2.35 1.73 1.52 0.50 1.02 0.51 1.27 LCN1008 inch 0.115 0.110 0.083 0.020 0.060 0.020 0.080 mm 2.92 2.79 2.10 0.51 1.52 0.51 2.03 LCN1206 inch 0.146 0.110 0.087 0.035 0.086 0.020 0.091 mm 3.70 2.80 2.20 0.90 2.18 0.51 2.30 LCN0603 F A UNIT C D Terminal D E F G 0.040 0.015 0.034 0.013 0.030 1.02 0.38 0.86 0.33 0.76 0.060 0.020 0.040 0.020 0.050 PDF
Документация на LCN0603T-10NJ-N

Дата модификации: 30.08.2011

Размер: 507 Кб

6 стр.

    Товары серии LCN

    Наименование i Упаковка Индуктивность Допуск Ток рабочий Корпус производителя Размер
    LCN0603T-10NJ-N (YAG)


    		 1 шт 1.8×1.12×1.02 мм
    LCN0603T-12NJ-N (YAG)


    		 1.8×1.12×1.02 мм
    LCN0603T-15NJ-S (YAG)


    		 1.8×1.12×1.02 мм
    LCN0603T-22NJ-N (YAG)


    		 1 шт 1.8×1.12×1.02 мм
    LCN0603T-27NJ-N (YAG)


    		 1 шт 1.8×1.12×1.02 мм
    LCN0603T-33NJ-N (YAG)


    		 1.8×1.12×1.02 мм
    LCN0603T-39NJ-N (YAG)


    		 1.8×1.12×1.02 мм
    LCN0603T-3N6J-N (YAG)


    		 1 шт 1.8×1.12×1.02 мм
    LCN0603T-3N9J-N (YAG)


    		 1 шт 1.8×1.12×1.02 мм
    LCN0603T-5N1J-N (YAG)


    		 1 шт 1.8×1.12×1.02 мм
    LCN0603T-6N8J-N (YAG)


    		 1.8×1.12×1.02 мм
    LCN0603T-R10J-N (YAG)


    		 1.8×1.12×1.02 мм
    LCN0603T-R11J-N (YAG)


    		 1 шт 1.8×1.12×1.02 мм
    LCN0603T-R15J-N (YAG)


    		 1 шт 1.8×1.12×1.02 мм
    LCN0603T-R18J-N (YAG)


    		 1.8×1.12×1.02 мм
    LCN0603T-R22J-N (YAG)


    		 1.8×1.12×1.02 мм
    LCN0603T-R27J-N (YAG)


    		 1.8×1.12×1.02 мм
    LCN0805T-10NK-N (YAG)


    		 1 шт 2.35×1.73×1.52 мм
    LCN0805T-12NK-S (YAG)


    		 2.35×1.73×1.52 мм
    LCN0805T-22NJ-S (YAG)


    		 2.35×1.73×1.52 мм
    LCN0805T-27NJ-N (YAG)


    		 2.35×1.73×1.52 мм
    LCN0805T-47NK-N (YAG)


    		 2.35×1.73×1.52 мм
    LCN0805T-R15K-S (YAG)


    		 2.35×1.73×1.52 мм
    LCN0805T-R39K-N (YAG)


    		 2.35×1.73×1.52 мм
