Серия логических ИС SN74LVC1G00

UMW

Общие характеристики

 Раздел Логическая ИС
Тип логики
Кол-во узлов
Логическая функция
Диапазон напряжений питания
Задержка прохождения сигнала вход-выход
Максимальный выходной ток
Максимальный входной ток
Рабочая температура

Документация на серию SN74LVC1G00

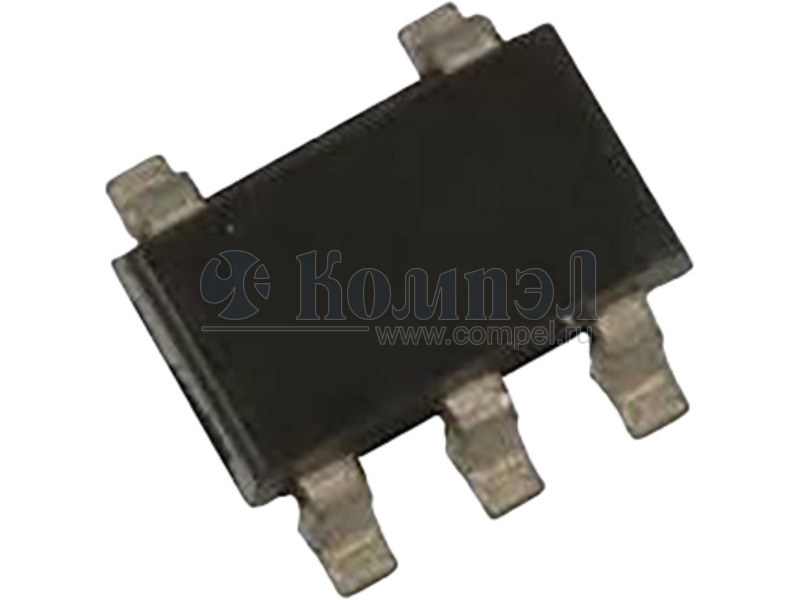

UMW ■ R SN74LVC1G00 Product introduction SN74LVC1G00 is a 2-input NAND integrated circuit, which can realize the mathematical logic operation of and . Advanced CMOS process design is adopted, which has the working characteristics of low power consumption and high output driving capability. The chip can work normally when the power supply voltage VCC is between 1.65V and 5.5V V. And 74LVC1G00 has a variety of small package shapes,It can be widely used in high-end precision instruments, miniaturized low-power handheld devices, artificial intelligence and other fields. ■ Product features ● ● ● ■ Low static power consumption: 0.1uA typical ● Wide working voltage range: 1.65V to 5.5V Package form: DBV/DCK/DRL/YZP/ DRY/DSF/ DPW High output drive: VCC=4.5V, more than 32MA product usage ● ● ● ■ ● Low input current: 0.1uA typical Portable audio interface ● Blu-ray player and home theater digital television ● Solid state drive Wireless headphones, smart watches, etc. ● Smart wearable devices Package form and pin function definition SOT23-5 SC70-5 SOT-553 SOT-886 SON-6 DSBGA-5 X2SON-5 Pin Name DBV/ DCK/ DRL DRY/DSF YZP DPW Description NC 1 1,5 A1, B2 1 Empty foot A 2 2 B1 2 Input GND 3 3 C1 3 Y 4 4 C2 4 VCC 5 6 A2 5 Power supply ground Output Power supply positive Note: NC null pin, no connecting wire inside. www.umw-ic.com 1 UTD Semiconductor Co.,Limited semiconductor co., ltd PDF
Документация на SN74LVC1G00DBVR

UMW SN74LVC1G00

Дата модификации: 30.05.2022

Размер: 1.59 Мб

10 стр.

    Товары серии SN74LVC1G00

    Наименование i Упаковка Корпус
    SN74LVC1G00DBVR (YOUTAI)

    		в ленте 3000 шт SOT236
    SN74LVC1G00DBVRUMW (YOUTAI)

    		SOT-23-5
    SN74LVC1G00DCKR (YOUTAI)

    		в ленте 3000 шт SC705
    SN74LVC1G00DCKRUMW (YOUTAI)

    		SOT-323-5 SC70-5
    SN74LVC1G00DPWR (YOUTAI)


    		 —
    SN74LVC1G00DRLR (YOUTAI)


    		 SOT553
    SN74LVC1G00DRYR (YOUTAI)


    		 SOT886
    SN74LVC1G00DSFR (YOUTAI)


    		 SON6
    SN74LVC1G00YZPR (YOUTAI)


    		 DSBGA-5
