CHI612 Revised Sep 2022 CHI612 Programmable Linear Hall Sensor IC Features • Package ⚫ Linear Hall, customer programmable, high resolution offset and sensitivity trimming with EEPROM Programmable sensitivity range between 0.6 and 32 mV/Gs Factory programmed sensitivity and quiescent output voltage TC with extremely stable temperature performance Up to 180kHz bandwidth, 2µs response time (TO-...
развернуть ▼ свернуть ▲

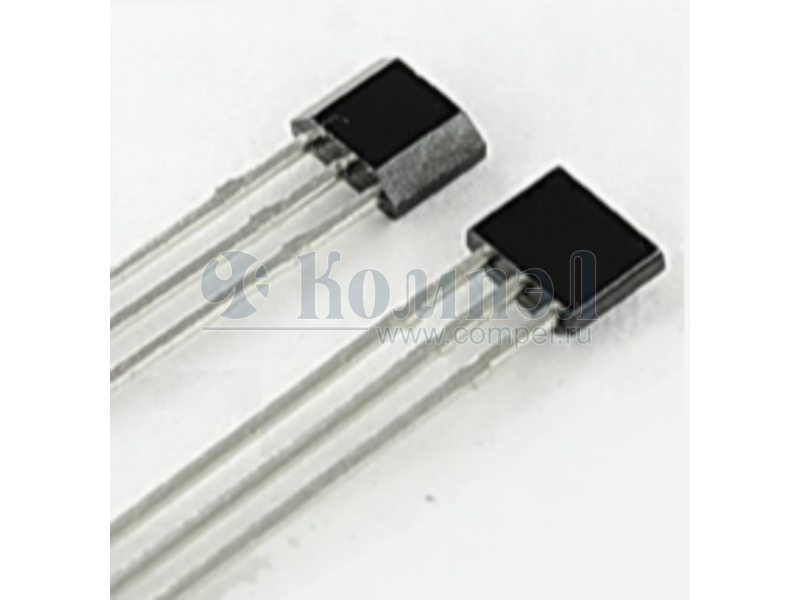

Внешний вид CHI612TB01300S

Технические характеристики

показать свернуть
Корпус TO92S
Тип датчика
Рабочая температура
Монтаж
Применение Измерение магнитного поля (Factory programmed sensitivity = 1.3mV/G)
Примечание Линейный, программируемый 0.6 - 32 mV/Gs
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
CHI612 Revised Sep 2022 CHI612 Programmable Linear Hall Sensor IC Features • Package ⚫ Linear Hall, customer programmable, high resolution offset and sensitivity trimming with EEPROM Programmable sensitivity range between 0.6 and 32 mV/Gs Factory programmed sensitivity and quiescent output voltage TC with extremely stable temperature performance Up to 180kHz bandwidth, 2µs response time (TO-94 package) Wide temperature range: -40oC to 150oC Output voltage clamp provides short circuit diagnostics Lead-Free Package: Flat TO-92S/L, TO-94, SOT-89-3L High ESD Protection: 8kV HBM RoHS Compliant 2011/65/EU • • • • • • • • TO-92S/L Functional Block Diagram TO-94 SOT-89-3L Vcc Low Pass Filter Sensitivity Trim Sensitivity TC Trim Driver Sensitivity Polarity Signal Remodulation Amp Dynamic Offset Cancellation HALL Applications Offset Trim Offset TC Trim VOUT • • • • • • • • Current sensing Motor control Linear Position Detection Rotary Position Sensing Magnetic Encoder Ferrous metal sensing Liquid level sensing Vibration sensing EEPROM & Control Logic GND Description The CHI612 is a customer programmable, low noise high accuracy linear Hall effect-based sensor IC. It is packaged in subminiature package to allow for easy integration with a magnetic core to create a highly accurate current sensing module. The programmable nature of the CHI612 enables it to account for manufacturing tolerances in the final current sensing module assembly. These ratiometric Hall effect sensor ICs provide a voltage output that is proportional to the applied magnetic field. The quiescent voltage output is user adjustable around 50% of the supply voltage and the output sensitivity is programmable within a range of 1 mV/G to 24 mV/G. This temperature-stable device is available in a through-hole single in-line package (TO-92S). The accuracy of the device is enhanced via programmability on the OUT pin for end of-line optimization without the added complexity and cost of a fully programmable device. The device using EERPOM to optimize device sensitivity and the quiescent output voltage (QVO) (output with no magnetic field) for a given application or circuit. The CHI612 also allow for optimized performance over temperature through programming the temperature coefficient for both Sensitivity and QVO at end of line test. The features of this linear device makes it ideal for use in industrial applications requiring high accuracy and are guaranteed over a wide temperature range, –40°C to+150°C. Page 1/22 PDF
