SCM3721ASA/SCM3723ASA Dual-Channel Digital Isolators SCM Package Features         3 V to 5.5 V level translation High common-mode transient immunity: 150 kV/µs typical High robustness to radiated and conducted noise High ESD rating Ultra low power consumption 0.55mA/channel(150Kbps) Wide temperature range: -40°C ~ 125°C Isolation voltages: AC 3000Vrms High data rate:150kbps Mechanica...
развернуть ▼ свернуть ▲

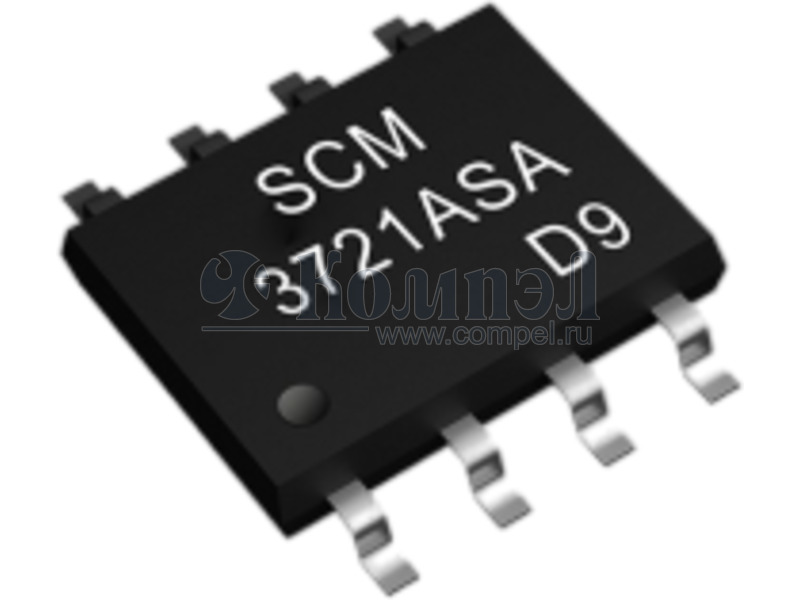

Внешний вид SCM3721ASA

Аналоги 2

показать свернуть
Тип Наименование Корпус Упаковка i Тип Карточка
товара

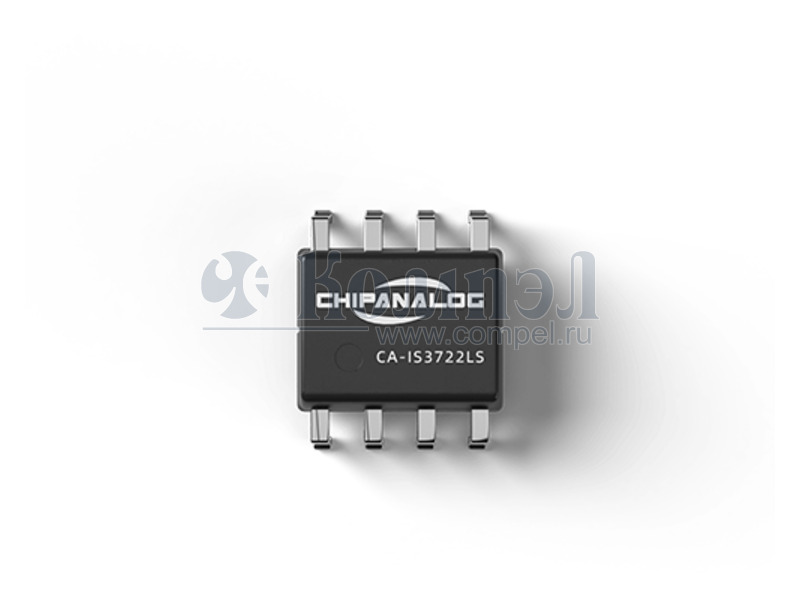

P= CA-IS3722LS (CHIPANLG)
