TM6530CP

Mornsun
Signal conditioning modules TMxxxxCP Series Active high precision signal conditioning module with millivolt level positive and negative signal for input and output FEATURES  Signal input, signal output, power input, and isolation power output are all isolated from each other  High accuracy of 0.1% Full Scale  High linearity of 0.1% Full Scale  Isolation test voltage of 2.5kVDC for 60 secon...
развернуть ▼ свернуть ▲

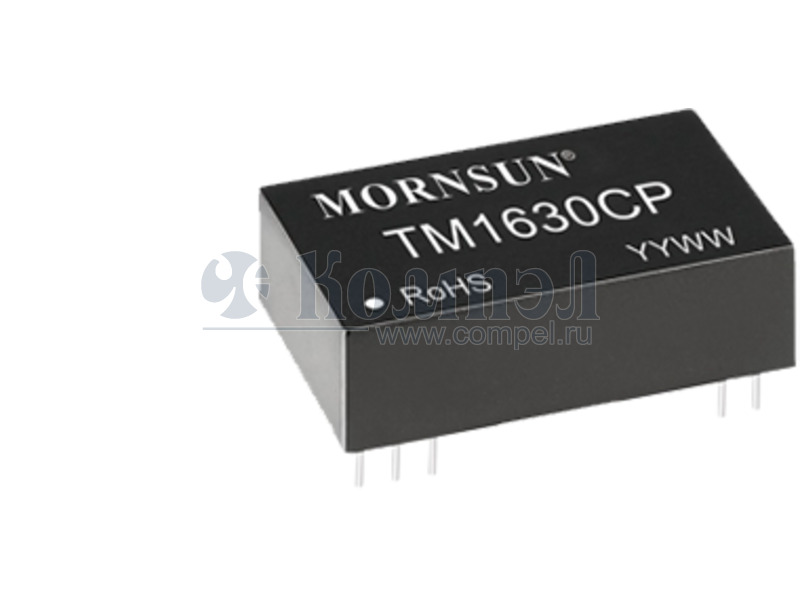

Внешний вид TM1630CP

Технические характеристики

показать свернуть
Тип Active high precision signal conditioning module
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
Signal conditioning modules TMxxxxCP Series Active high precision signal conditioning module with millivolt level positive and negative signal for input and output FEATURES  Signal input, signal output, power input, and isolation power output are all isolated from each other  High accuracy of 0.1% Full Scale  High linearity of 0.1% Full Scale  Isolation test voltage of 2.5kVDC for 60 seconds  Extremely low temperature coefficient of 35PPM/℃  Operating ambient temperature range -25℃ to +71℃  High reliability with >500,000 hours MTBF The TMxxxxCP series are highly integrated and efficiency active signal conditioning modules, consisting of millivolt level positive and negative signal input with a positive and negative signal output. These modules have a built-in highly efficient and isolated micro-power source, that can provide energy for the integrated signal processing circuit as well as providing isolated power for peripheral devices and circuits. The product greatly simplifies the design of three-wire and four-wire user applications and also greatly reduces the space needed for circuitry on the PC Board. These modules have three-port isolation (input, output and power supply). These modules adopt unique electromagnetic isolation technology, allowing for higher accuracy and extremely low temperature drift in comparison with opto-coupler devices. Selection Guide Part No. Power Supply input Typ. (VDC) Input Signal Output Signal Isolation Power Output (VDC) TM1630CP 24V ±10mV ±5V None TM2630CP 24V ±20mV ±5V None TM4630CP 24V ±50mV ±5V None TM5630CP 24V ±75mV ±5V None TM6630CP 24V ±100mV ±5V None TM7650CP 12V ±200mV ±5V None TM4530CP 24V ±50mV ±10V None TM5530CP 24V ±75mV ±10V None TM6530CP 24V ±100mV ±10V None Notes: Customization of products is available on request, for example: Power supply:24/15/12VDC; Input signal:0 to ±10/±20/±30/±50/±75/±100mV; Output signal: 0 to ±5V/±10V. Input Specifications Item Operating Conditions Value Typ.±5% Input voltage Power Supply Signal Input Input power Isolated signal power at full load ≤1W Power supply protection Input reverse polarity protection Input signal See selection guide Input impedance In case of max. input of voltage signal Overload ≥10MΩ 10V Output Specifications Item Signal Output Operating Conditions Value Output signal See selection guide Load capacity In case of max. output of voltage signal ≥2kΩ Transmission Specifications Item Operating Conditions Zero Offset -0.1%FS to 0.1%FS Signal Precision Temperature Drift Value -0.1%FS to 0.1%FS Operating temperature range from -25℃ to +71℃ 35PPM/℃ (input signal range≥100mV) 50PPM/℃ (input signal range＜100mV) 2020.01.08-B/4 Page 1 of 4 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на TM4530CP

Subject:

Дата модификации: 20.02.2020

Размер: 1.26 Мб

4 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
