CT-4629-X010

NCR Industrial
Http://www.nicerelay.com Current Transformer P/N.: 4629-010 Characteristics: ◆ Used as a current sensing device for utility energy meter; ◆ Vibration-resistant; ◆ Encapsulation by shrinkable tube, with high insulation ability; Ordering information Rated primary Max.primary Rated secondary Turn ratio Load resistance current current current I p (A) I 5 max (A) I 20 s (mA) 2.5 N Rb (...
развернуть ▼ свернуть ▲

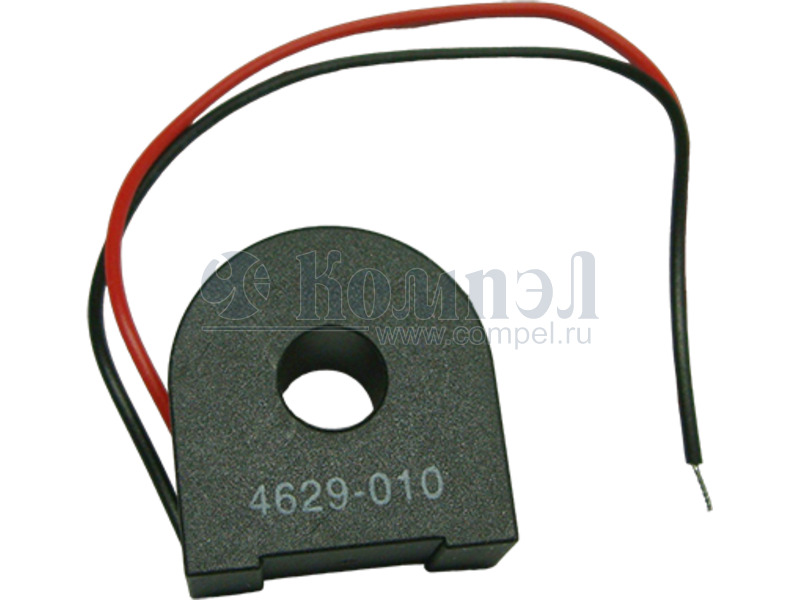

Внешний вид CT-4629-X010

Файлы 1

показать свернуть
http://www.nicerelay.com Current Transformer P/N.: 4629-010 Characteristics: ◆ Used as a current sensing device for utility energy meter; ◆ Vibration-resistant; ◆ Encapsulation by shrinkable tube, with high insulation ability; Ordering information Rated primary Max.primary Rated secondary Turn ratio Load resistance current current current I p (A) I 5 max (A) I 20 s (mA) 2.5 N Rb (%) 1:2000 I=6A Rb=100 I=20A Rb=30 0.2 Technical parameters Working temperature -40℃ ~ 80℃ Winding resistancce 104±10% Winding inductance 50Hz 0.5v 238 ±30% Dielectric strength (primary vs secondary) ＞2500V (1 min.) Rated Frequency 50 Hz Dimensions (mm) Accuracy PDF
Документация на CT-4629-X010

CT Keywords:

Дата модификации: 01.08.2023

Размер: 50.4 Кб

1 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
