NST1413 High-Accuracy, Remote and Local Temperature Sensor with I2C and SMBus Interface Datasheet (EN) 0.3 Product Overview The NST1413 device is a high-accuracy, low-power remote temperature sensor with a built-in local temperature sensor. The remote temperature sensors are typically low-cost discrete NPN or PNP transistors, or substrate thermal transistors or diodes that are integral parts of...
развернуть ▼ свернуть ▲

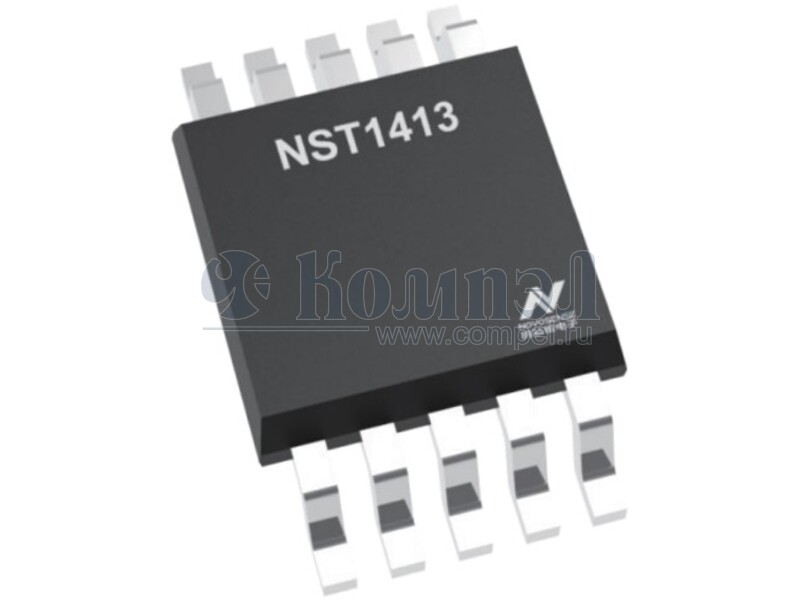

Внешний вид NST1413-DMSJR

Технические характеристики

показать свернуть
Тип датчика
Диапазон измеряемых температур
Точность измерения ±
Интерфейс
Примечания
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
NST1413 High-Accuracy, Remote and Local Temperature Sensor with I2C and SMBus Interface Datasheet (EN) 0.3 Product Overview The NST1413 device is a high-accuracy, low-power remote temperature sensor with a built-in local temperature sensor. The remote temperature sensors are typically low-cost discrete NPN or PNP transistors, or substrate thermal transistors or diodes that are integral parts of microprocessors, microcontrollers, or fieldprogrammable gate arrays (FPGAs). Temperature is represented as a 11-bit digital code for both local and remote sensors, giving a resolution of 0.125 °C. The twowire serial interface accepts the SMBus communication protocol with up to six different pin-programmable addresses. Advanced features [such as series resistance cancellation, programmable nonideality factor (ηfactor), programmable offset, programmable temperature limits, and a programmable digital filter] are combined to provide a robust thermal monitoring solution with improved accuracy and noise immunity. The NST1413 is ideal for multi-location, high-accuracy temperature measurements in a variety of communication, computing, instrumentation, and industrial applications. The device is specified for operation over a supply voltage range of 1.7 V to 5.5 V, and a temperature range of -40 °C to 125 °C.         Programmable SMBus address Support for diodes requiring the BJT/transistor model including advanced processor geometries Automatically determines remote diode type and optimal settings Resistance Error Correction Up to 2 remote Temperature Monitors - ±1 °C max accuracy (-20 °C < TDIODE < 85 °C) - 0.125 °C resolution - Supports up to 2.2nF diode filter capacitor Internal Temperature Monitor - ±1 °C accuracy - 0.125 °C resolution Programmable temperature limits for ALERT Available in RoHS compliant package: 10-pin MSOP. Applications     Notebook Computers Desktop Computers Industrial Embedded applications Device Information Part Number NST1413-DMSJR Package MSOP (10) Body Size 4.9mm × 3.0mm Key Features Typical Application CPU/GPU Thermal Junction VDD=3.3V DP1 3.3-5V HOST VDD DN1 SCL SDA NST1413 ALERT SMBus Interface DP2 TNERM/ADDR DN2 Power Control GND Copyright © 2020, NOVOSENSE Page 1 PDF
Документация на NST1413-DMSJR

Дата модификации: 27.05.2021

Размер: 2.24 Мб

30 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
