EE-SF5

Omron
OPTO SWITCH, REFLECTIVE; Channels, No. of:1; Output Type:Transistor; Current, Input:20mA; Voltage, Output Max:30V; Case Style:Thru Hole; Temperature, Operating Range:-25°C to +80°C; Current, If AV:50mA; Depth, External:5.7mm; Distance, Reflective Sensing:5mm; Length / Height, External:17.7mm; Optocoupler Type:Opto Switch; Pins, No. of:4; Power Dissipation:100mW; Voltage, Output:30V; Width, External:13mm
развернуть ▼ свернуть ▲

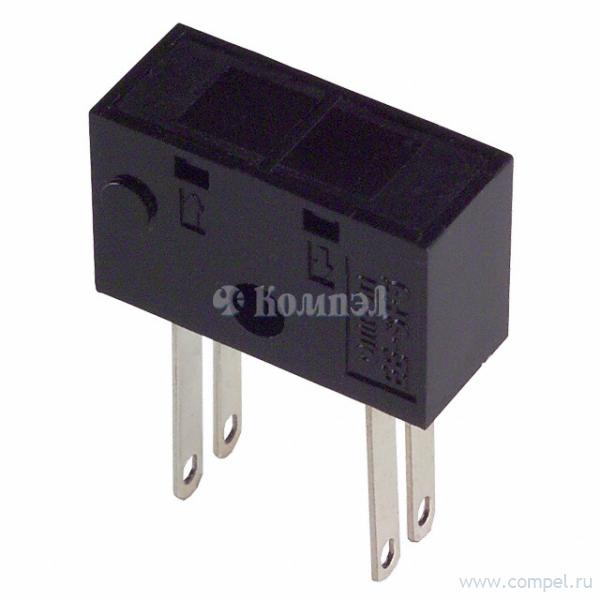

Фотография EE-SF5

Технические характеристики

показать свернуть
Режим работы
Тип выхода
Рабочее расстояние
Способ монтажа
Ток излучателя (ном)
Коммутируемое напряжение (макс)
Коммутируемый ток (макс)
Примечания SENSR OPTO TRANS 5MM REFL SOLDER
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
Photomicrosensor (Reflective) EE-SF5(-B) Be sure to read Precautions on page 25. ■ Dimensions ■ Features Note: All units are in millimeters unless otherwise indicated. • Dust-tight construction. • With a visible-light intercepting filter which allows objects to be sensed without being greatly influenced by the light radiated from fluorescent lamps. • Mounted with M2 screws. • Model with soldering terminals (EE-SF5). • Model with PCB terminals (EE-SF5-B). Matted 1.9 dia. 2.2±0.2 dia. hole ■ Absolute Maximum Ratings (Ta = 25°C) Item Emitter Four, 1.5 Four, 0.5 2.54 2.54±0.2 Detector EE-SF5 EE-SF5-B Internal Circuit A C K Dimensions E Terminal No. A K C E Unless otherwise specified, the tolerances are as shown below. Name Anode Cathode Collector Emitter Ambient temperature 3 mm max. ±0.3 3 < mm ≤ 6 6 < mm ≤ 10 ±0.375 ±0.45 10 < mm ≤ 18 ±0.55 18 < mm ≤ 30 ±0.65 50 mA (see note 1) Pulse forward current IFP 1A (see note 2) Reverse voltage VR 4V Collector–Emitter voltage VCEO 30 V Emitter–Collector voltage VECO --- Collector current IC 20 mA Collector dissipation PC 100 mW (see note 1) Operating Topr –25°C to 80°C Storage Tstg –30°C to 80°C Tsol 260°C (see note 3) Soldering temperature Tolerance Rated value IF 7.6±1 Four, 0.25 7.62±0.3 Symbol Forward current Note: 1. Refer to the temperature rating chart if the ambient temperature exceeds 25°C. 2. The pulse width is 10 μs maximum with a frequency of 100 Hz. 3. Complete soldering within 10 seconds. ■ Electrical and Optical Characteristics (Ta = 25°C) Item Emitter Detector Symbol Value Condition Forward voltage VF 1.2 V typ., 1.5 V max. IF = 30 mA Reverse current IR 0.01 μA typ., 10 μA max. VR = 4 V Peak emission wavelength λP 940 nm typ. IF = 20 mA Light current IL 200 μA min., 2,000 μA max. IF = 20 mA, VCE = 10 V White paper with a reflection ratio of 90%, d = 5 mm (see note) Dark current ID 2 nA typ., 200 nA max. VCE = 10 V, 0 lx Leakage current ILEAK 2 μA max. IF = 20 mA, VCE = 10 V with no reflection --- --- 850 nm typ. VCE = 10 V Collector–Emitter saturated volt- VCE (sat) age Peak spectral sensitivity wavelength λP Rising time tr 30 μs typ. VCC = 5 V, RL = 1 kΩ, IL = 1 mA Falling time tf 30 μs typ. VCC = 5 V, RL = 1 kΩ, IL = 1 mA Note: The letter “d” indicates the distance between the top surface of the sensor and the sensing object. 168 EE-SF5(-B) Photomicrosensor (Reflective) PDF
Документация на серию EE-SF5

Micro Sensing Device Data Book

Дата модификации: 19.03.2010

Размер: 113.9 Кб

2 стр.
