RS421AYSF3

Runic
RS421/ RS422 RS421/ RS422 Precision Programmable Reference FEATURES DESCRIPTION • Reference Voltage Tolerance at 25°C 0.5% • Programmable output voltage to 36V • Low dynamic output impedance 0.1Ω • Sink current capability of 0.5mA to 100mA • Equivalent full-range temperature coefficient of 50ppm/°C typical • Temperature compensated for operation over full rated operating temperatu...
развернуть ▼ свернуть ▲

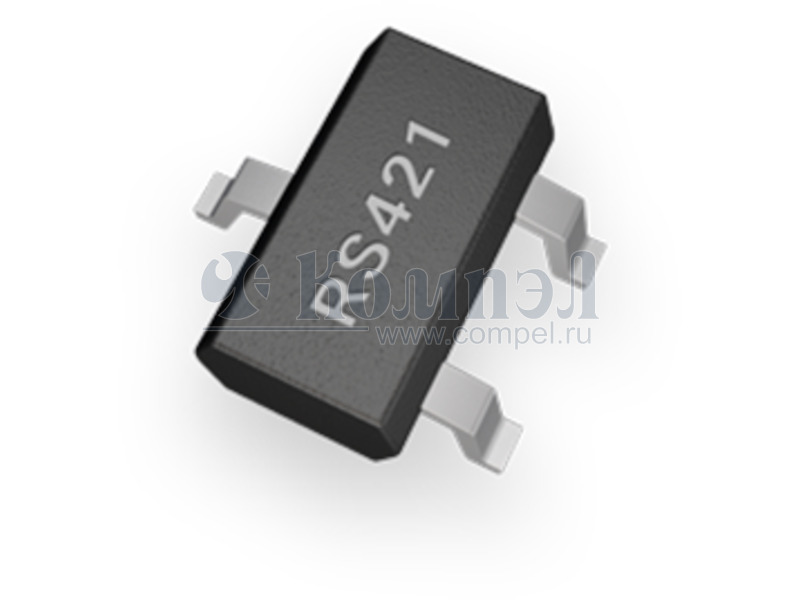

Внешний вид серии RS421

Технические характеристики

показать свернуть
Корпус SOT-23-3
Опорное напряжение
Начальная точность при 25°C
Температурный коэффициент (от типового до максимального)
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
RS421/ RS422 RS421/ RS422 Precision Programmable Reference FEATURES DESCRIPTION • Reference Voltage Tolerance at 25°C 0.5% • Programmable output voltage to 36V • Low dynamic output impedance 0.1Ω • Sink current capability of 0.5mA to 100mA • Equivalent full-range temperature coefficient of 50ppm/°C typical • Temperature compensated for operation over full rated operating temperature range • Low output noise voltage • Fast turn on response • Operation junction temperature from -40°C to 150°C • The RS421 and RS422 device are three-terminal adjustable shunt regulators, with a guaranteed thermal stability over applicable temperature ranges. The output voltage can be set to any value between V REF (approximately 1.18V) and 36V with two external resistors. These devices have provided a very sharp turn-on characteristic, making these devices excellent replacement for Zener diodes in many applications. Both the RS421 and RS422 devices are offered in two grades, with initial tolerances (at 25°C) of 0.5%. Device Information (1) Lead-Free Packages: SOT23 APPLICATIONS Adjustable voltage and current referencing • Power supply • Zener replacement Voltage monitoring • Comparator with integrated reference • As precision voltage reference PACKAGE(PIN) BODY SIZE (NOM) RS421 SOT23(3) 1.30mm×2.92mm RS422 SOT23(3) 1.30mm×2.92mm (1) • • PART NUMBER For more detail information packages, see the order sheet. Function Block Diagram CATHODE REFERENCE CATHODE (K) REFERENCE (R) 1.18V Vref ANODE(A) ANODE REV A.1 1 / 11 www.run-ic.com PDF
Документация на семейство RS421, RS422

Дата модификации: 08.12.2022

Размер: 487.8 Кб

11 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
