Держатели предохранителей
Руководство пользователя| Код для заказа | Фото | Примечания | Монтаж | Диаметр | Длина | ||
|---|---|---|---|---|---|---|---|
| KLS5-1095-D (KLS) | Pitch 21.0mm,Rated Load: 6.3A 250V.AC,Contact Resistance: ≤5mΩ,Insulation Resistance: ≥500MΩ,Withstand Voltage: AC 1000V(50Hz)/Min. |  |  |  |
|||
| KLS5-1096-U (KLS) | Pitch 22.4mm,Rated Load:5A 250V.AC,Contact Resistance: ≤5mΩ,Insulation Resistance: ≥500MΩ,Withstand Voltage: AC 1000V(50Hz)/Min |  |  |  |
|||
| KLS5-242 (KLS) | PCB Fuse Holder,For Fuse 5.2×20mm,With Casing,Black,6.3A/250V.Pitch 21.0mm |  |  |  |
|||
| KLS5-243 (KLS) | PCB Fuse Holder,For Fuse 5.2×20mm,With PC Casing,Rating Voltage 250V,Rating Current 6.3A. |  |  |  |
|||

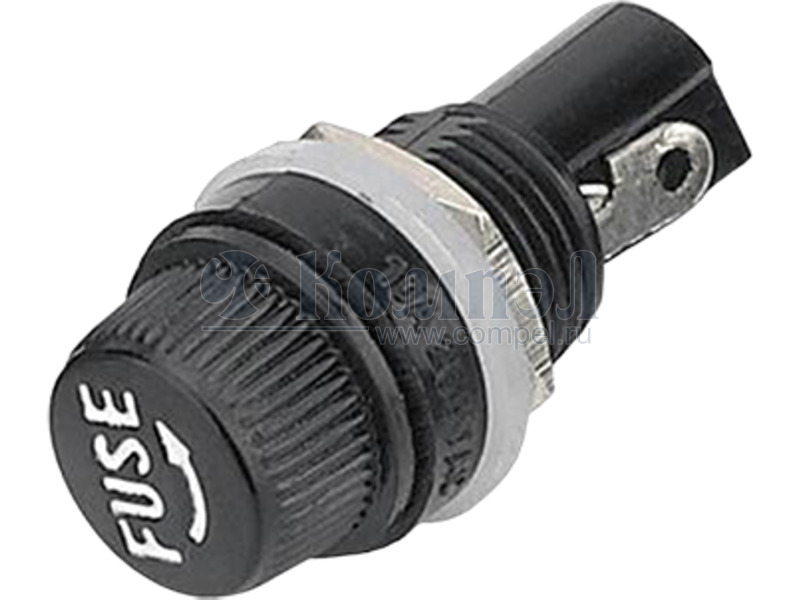

| KLS5-254 (KLS) | Fuse Holder For Round Thread Panel Mount,For Fuse 5.2×20mm,Rating Voltage 250V,Rating Current 10A. |  |  |  |
|||
| KLS5-266 (KLS) |

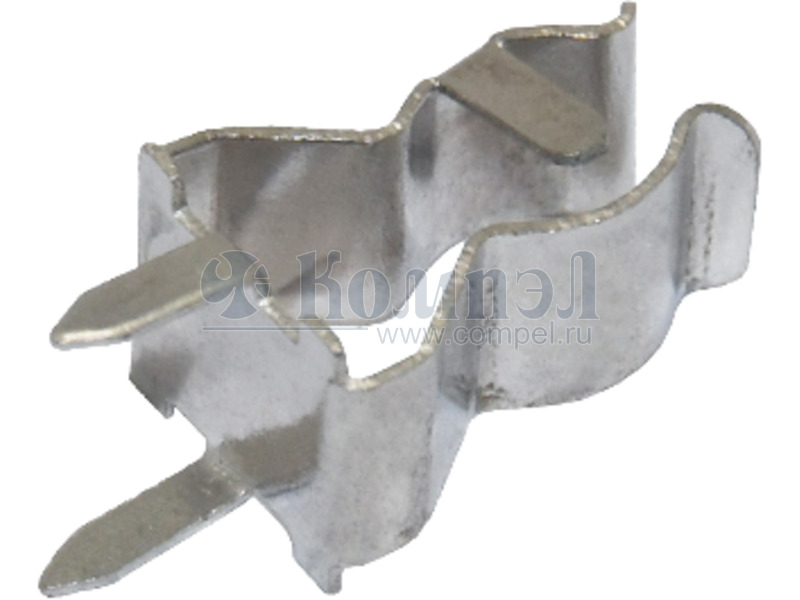

| PCB Fuse Clip,For Fuse 5.2×20mm,Rating Voltage 250V,Rating Current 6.3A |  |  |  |
||
| L-KLS5-001-B (KLS) |
| PCB Fuse Clip,For Fuse 5.2×20mm,Rating Voltage 250V,Rating Current 6.3A,Phosphor-Bronze Silver-plating. | — |  |  |
||
| L-KLS5-242 (KLS) |
| PCB Fuse Holder,For Fuse 5.2×20mm,With Casing,Black,6.3A/250V.Pitch 21.0mm |  |  |  |
||
| L-KLS5-243 (KLS) |
| PCB Fuse Holder,For Fuse 5.2×20mm,With PC Casing,Rating Voltage 250V,Rating Current 6.3A. |  |  |  |
||
| L-KLS5-254 (KLS) |
| Fuse Holder For Round Thread Panel Mount,For Fuse 5.2×20mm,Rating Voltage 250V,Rating Current 10A. |  |  |  |
||
| L-KLS5-266-1 (KLS) | PCB Fuse Clip,For Fuse 5.2×20mm,Rating Voltage 250V,Rating Current 6.3A, |  |  |  |
|||
| L-KLS5-268-A (KLS) |
| PCB Fuse Clip,For Fuse 6.3×30mm,Rating Voltage 250V,Rating Current 10A,Brass Nickel-plating. |  |  |  |
||
| BLX-A [5x20 6A 250V] (RUICHI) | держатель предохранителя с крышкой-защелкой |  |  |  |
|||
| S1052-1 [5x20 4a 250v] (RUICHI) | Держатель предохранителя; d5x20 мм; 4 А; 250 В; открытый |  |  |  |
|||
| ZH110 for 5x20 (RUICHI) | высокотемпературный, огнестойкий |  |  |  |
|||
| ДВП4-2 [5x20 10a 250v] импорт (RUICHI) | высокотемпературный, огнестойкий |  |  |  |
|||
| FH-100 (BM) |
| — |  |  |  |
||
| FH-101 (BM) |
| — |  |  |  |
||
| FH-103 (BM) |
| — |  |  |  |
||
| FH-101C [KLS5-242] (KLS) | — | — | — | — | |||
