PAI122M61

2PAI
2Pai Semi Enhanced ESD, 3.0 kV rms/6.0 kV rms 10Mbps Dual-Channel Digital Isolators π120M/π121M/π122M Data Sheet FEATURES Ultra low power consumption (1Mbps): 0.58mA/Channel High data rate: π12xAxx: 600Mbps π12xExx: 200Mbps π12xMxx: 10Mbps π12xUxx: 150kbps High common-mode transient immunity: 75 kV/µs typical High robustness to radiated and conducted noise Low propagation delay: 8 ns typic...
развернуть ▼ свернуть ▲

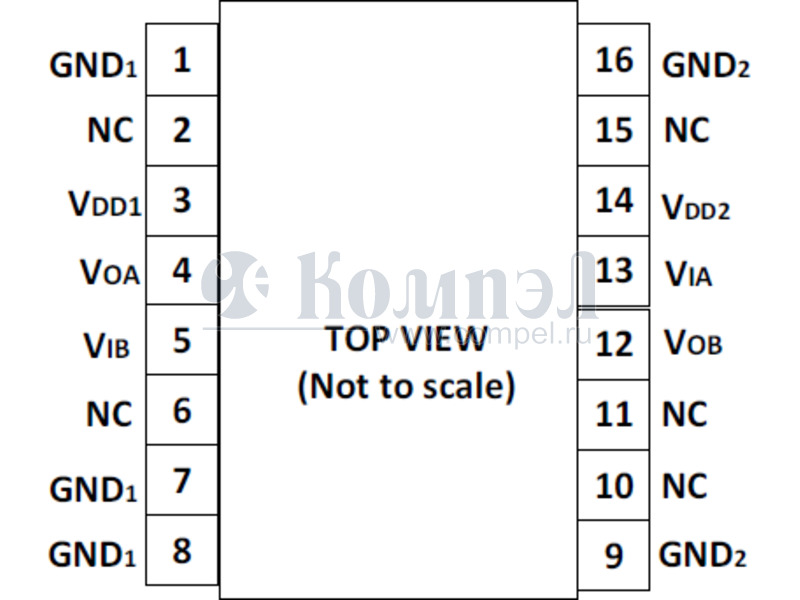

Внешний вид Pai122M60

Технические характеристики

показать свернуть
Корпус SO-16 SOIC16
Напряжение изоляции RMS
Кол-во передатчиков
Кол-во приемников
Скорость передачи данных
Максимальная задержка сигнала
Диапазон напряжений питания
Примечание WSOP-16 Digital Isolators ROHS
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 3

показать свернуть
Тип Наименование Корпус Упаковка i Изоляция TX RX Скорость Задержка U пит Примечание T раб Карточка
товара
F~ NSi8221C1-DSWR (NOVOSENS)

—

F~ NSi8221W1-DSWR (NOVOSENS)

—

F~ CA-IS3722HW (CHIPANLG)

SO-16 SOIC16 в ленте 1000 шт — — — —

Файлы 1

показать свернуть
2Pai Semi Enhanced ESD, 3.0 kV rms/6.0 kV rms 10Mbps Dual-Channel Digital Isolators π120M/π121M/π122M Data Sheet FEATURES Ultra low power consumption (1Mbps): 0.58mA/Channel High data rate: π12xAxx: 600Mbps π12xExx: 200Mbps π12xMxx: 10Mbps π12xUxx: 150kbps High common-mode transient immunity: 75 kV/µs typical High robustness to radiated and conducted noise Low propagation delay: 8 ns typical for 5 V operation 9 ns typical for 3.3 V operation Isolation voltages: π12xx3x: AC 3000Vrms π12xx6x: AC 6000Vrms High ESD rating: ESDA/JEDEC JS-001-2017 Human body model (HBM) ±8kV, all pins Safety and regulatory approvals (Pending)： UL certificate number: E494497 3000Vrms/6000Vrms for 1 minute per UL 1577 CSA Component Acceptance Notice 5A VDE certificate number: 40047929 DIN V VDE V 0884-10 (VDE V 0884-10):2006-12 VIORM = 707V peak/1200V peak CQC certification per GB4943.1-2011 3 V to 5.5 V level translation Wide temperature range: -40°C to 125°C 8/16-lead, RoHS-compliant, (W)SOIC package APPLICATIONS The π1xxxxx isolator data channels are independent and are available in a variety of configurations with a withstand voltage rating of 1.5 kV rms to 6.0 kV rms and the data rate from DC up to 600Mbps (see the Ordering Guide). The devices operate with the supply voltage on either side ranging from 3.0 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling voltage translation functionality across the isolation barrier. The fail-safe state is available in which the outputs transition to a preset state when the input power supply is not applied. FUNCTIONAL BLOCK DIAGRAMS π120X3X VDD1 1 8 VDD2 VIA 2 7 VOA VIB 3 6 VOB GND1 4 5 GND2 π121X3X VDD1 1 8 VDD2 VIA 2 7 VOA OB V 3 6 VIB GND1 4 5 GND2 VDD1 1 VOA 2 VIB GND 1 π122X3X 8 VDD2 7 VIA 3 6 VOB 4 5 GND2 General-purpose multichannel isolation Industrial field bus isolation GENERAL DESCRIPTION The π1xxxxx is a 2PaiSemi digital isolators product family that includes over hundreds of digital isolator products. By using maturated standard semiconductor CMOS technology and 2PaiSEMI iDivider technology, these isolation components provide outstanding performance characteristics and reliability superior to alternatives such as optocoupler devices and other integrated isolators. Intelligent voltage divider technology (iDivider technology) is a new generation digital isolator technology invented by 2PaiSEMI. It uses the principle of capacitor voltage divider to transmit voltage signal directly cross the isolator capacitor without signal modulation and demodulation. π120X6X GND 1 1 16 GND2 NC 2 15 NC VDD1 3 14 VDD2 VIA 4 13 VOA VIB 5 12 VOB NC 6 11 NC GND 1 7 10 NC GND 1 8 9 GND2 GND 1 1 16 GND2 NC 2 15 NC VDD1 3 14 VDD2 VIA 4 13 VOA VOB 5 12 VIB NC 6 11 NC GND 1 7 10 NC GND 1 8 9 GND2 GND1 1 16 GND2 NC 2 15 NC VDD1 3 14 VDD2 VOA 4 13 VIA VIB 5 12 VOB π121X6X π122X6X NC 6 11 NC GND 1 7 10 NC GND1 8 9 GND2 Figure1. π120xxx/π121xxx/π122xxx functional Block Diagram VDD1 VDD2 CIN COUT 0.1uF 0.1uF 1 2 3 4 VIN_A VIN_B GND1 VDD1 VIA VIB GND1 VDD2 VOA VOB GND 2 π120 8 7 6 5 VOUT_A VOUT_B GND2 Figure2. π120xxx Typical Application Circuit Rev.1 Information furnished by 2Pai semi is believed to be accurate and reliable. However, no responsibility is assumed by 2Pai semi for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of 2Pai semi. Trademarks and registered trademarks are the property of their respective owners. Room 308-309, No.22, Boxia Road, Pudong New District, Shanghai, 201203, China 021-50850681 2Pai Semiconductor Co., Limited. All rights reserved. http://www.rpsemi.com/ PDF
Документация на Pai122M60

Дата модификации: 18.09.2019

Размер: 1.17 Мб

15 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
