TPC2161MS1L1-SO2R

3PEAK
TPC2160/TPC2161/TPC2161M 16-Bit High Accuracy DAC Features Description • • • • • • • • The TPC2160 and TPC2161/TPC2161M are singlechannel, 16-bit, voltage output digital-to-analog converters with SPI interface. They accept a wide supply voltage range. • • • Full 16-Bit Performance 2.7-V – 5.5-V Single-Supply Operation High Accuracy: INL 1LSB Fast Settling Speed: 1 µs The TPC2160 output is...
развернуть ▼ свернуть ▲

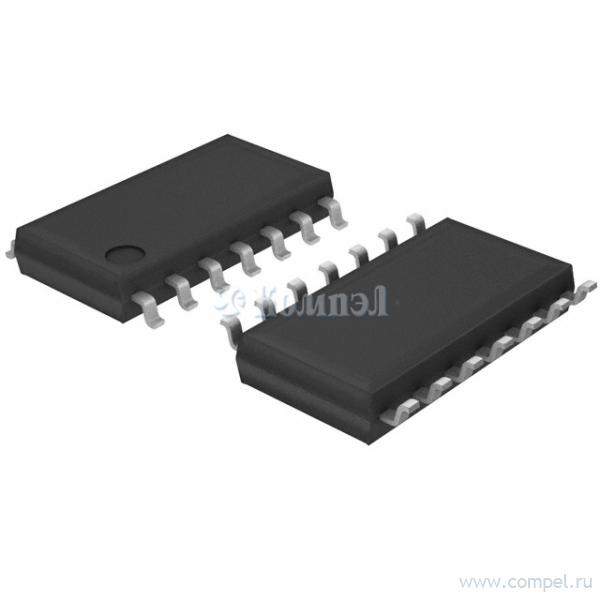

Вид корпуса SOP-14

Технические характеристики

показать свернуть
Корпус SOP-14
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
TPC2160/TPC2161/TPC2161M 16-Bit High Accuracy DAC Features Description • • • • • • • • The TPC2160 and TPC2161/TPC2161M are singlechannel, 16-bit, voltage output digital-to-analog converters with SPI interface. They accept a wide supply voltage range. • • • Full 16-Bit Performance 2.7-V – 5.5-V Single-Supply Operation High Accuracy: INL 1LSB Fast Settling Speed: 1 µs The TPC2160 output is 0 V to VREF, and the TPC2161/ TPC2161M can provides bipolar output ±VREF with external buffer and internal feedback resistor ladder. 10-nV/√Hz Output Noise Density Unbuffered Voltage Output These parts incorporate a power-on reset circuit to ensure that the DAC output powers up to 0 V (TPC2160 and TPC2161), or mid-scale (TPC2161M). SPI Compatible Interface Power-On Reset to 0 V (TPC2160 and TPC2161) or mid-scale (TPC2161M) The DACs provides 16-bit resolution over the full specified temperature range of −40 °C to 105 °C. Low Glitch: 10 nV-sec TPC2160 Package: SOP-8 The DACs achieve a 1-µs settling time. The outputs are unbuffered, with low power consumption and low offset errors. TPC2161/TPC2161M Package: SOP-14 Applications • • • Providing a low noise performance of 10 nV/√Hz and low glitch, the DACs are suitable for deployment across multiple end systems. Data Acquisition Systems Automatic Test Equipment Industrial Process Control Functional Block Diagrams VDD TPC2160 VDD 16bit 16 DAC -2 VREF RFB INV TPC2161/ TPC2161M VOUT AGND VREF-S VREF-F 16bit -2 DAC LDAC +V VO VOUT -V AGNDF DAC Latch CS DIN Control Logic CS DIN Serial Input Register SCLK AGNDS Serial input register SCLK DGND DGND www.3peak.com DAC Latch Control Logic 1 / 24 BA20240204A6 PDF
Документация на серию TPC2161

Creator: AH Formatter V7.1 MR1 for Linux64 : 7.1.2.49520 (2021-03-15T13:01+09)

Дата модификации: 12.07.2024

Размер: 1.3 Мб

24 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
