TPT1334-T8TR

3PEAK
The TPT133x family of products are 3.3-V CAN transceivers that are compatible with the ISO11898 Highspeed CAN (Controller Area Network) physical layer standard. The devices are designed to be used in CAN FD networks up to 5 Mbps.
развернуть ▼ свернуть ▲

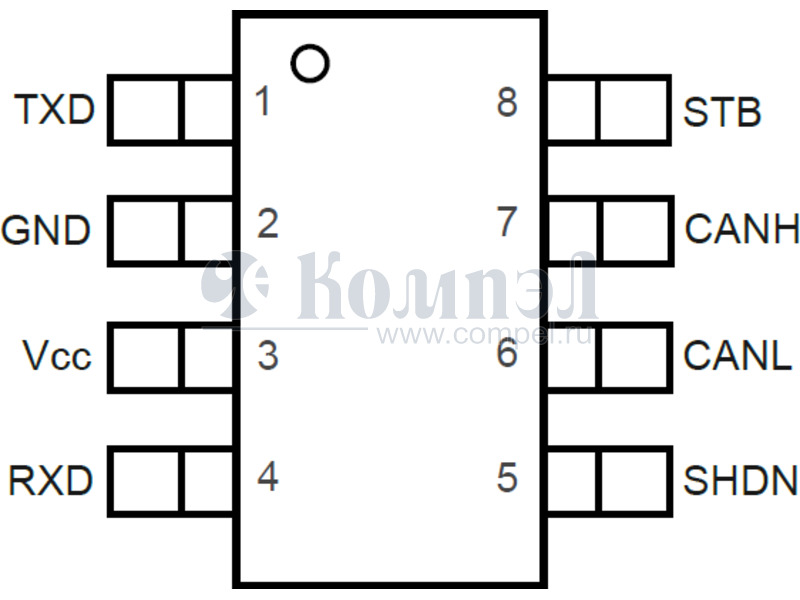

Внешний вид серии TPT133x

Технические характеристики

показать свернуть
Корпус SOT238
Кол-во каналов передачи данных
Кратковременная импульсная защита ±
Диапазон питающих напряжений
Диапазон рабочих температур
Примечание 5Mbps CAN FD tranciever with 3.3V Power supply
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
TPT133x 3.3-V Fault Protected High-Speed CAN FD Transceiver Features Description • 3.3-V Power Supply, I/O Voltage Range Supports 2.8-V to 5.5-V MCU Interface • Compatible with ISO 11898-2:2016 Physical Layer Standards • • • • Supports CAN FD and Data Rating up to 5 Mbps The TPT133x family of products are 3.3-V CAN transceivers that are compatible with the ISO11898 Highspeed CAN (Controller Area Network) physical layer standard. The devices are designed to be used in CAN FD networks up to 5 Mbps, and to enhance timing margin and higher data rates in long and high-loading networks. As designed, the devices feature cross-wire, overvoltage, and loss of ground protection from −45 V to +45 V, overtemperature shutdown, and a −12 V to +12 V common-mode range. The devices come with standby mode, silent mode, and shutdown mode. The family includes many protection features to enhance device and network robustness. Short Propagation Delay Times and Fast Loop Times Common-Mode Input Voltage: ±12 V Operation Modes: – – – – • Standby Mode with Wake-up Function (TPT1334) Silent Mode (TPT1330, TPT1337) The TPT133x is available in SOP-8 and SOT23-8 packages and characterized from –40°C to +125°C. Shutdown Mode(TPT1330, TPT1334) Protection Feature: – – – – – • Normal Mode IEC 61000-4-2 ESD Protection Exceeds ±6 kV Typical Application Circuit Bus Fault Protection: ±45 V VCC Under-voltage Protection VIN TXD Dominant Time-out Function and BusDominant Time-out Function 3.3V Voltage Regulator VOUT VCC 3 7 Thermal Shutdown Protection CANH VCC Available in SOP8 Package and SOT-23-8 Package I/O Interface Port_x S/STB Port_x SHDN/ FAULT 8 TPT133x 5 MCU Applications 6 CAN Controller TX TXD 1 RX RXD 4 CANL Optional 2 • • All Devices Supporting Highly Loaded CAN Networks • • • Building, Security Control Systems Field Industrial Automation, Sensors, and Drive Systems Energy Storage Systems Telecom Base Station Status and Control www.3peak.com 1 / 24 CA20231101A0 PDF
Документация на серию TPT133x

TPT133x Datasheet

Дата модификации: 16.04.2024

Размер: 1.15 Мб

24 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
