XGZP6886A15115KPA

CFSensor
Calibrated Pressure Sensor Series V1.1/2022.05 XGZP6885A PRESSURE SENSOR FEATURES ■ Wide Ranges: 0kPa～100kPa…700kPa(show in Pressure Range) ■ Optional 5V or 3.3V Power Supply ■ Absolute Pressure Typ(Gage Type is also available) ■ For Non-corrosive Gas or Air. ■ Calibrated Amplified Analog Signal(I2C interface is available) ■ Temp. Compensated: 0℃～+60℃(32℉～+140℉) ■ Direct Application, Low C...
развернуть ▼ свернуть ▲

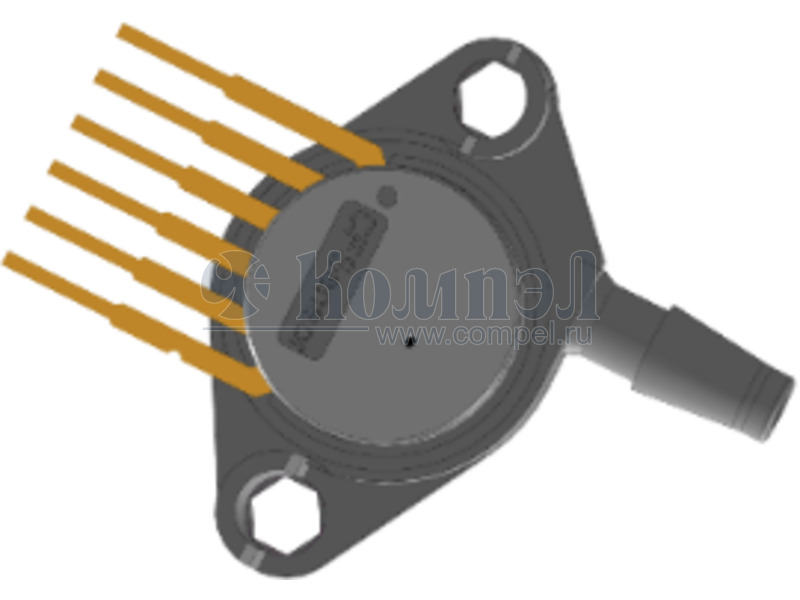

Внешний вид серии XGZP6885A
Внешний вид серии XGZP6885A
Внешний вид серии XGZP6885A


Технические характеристики

показать свернуть
Тип измеряемого давления
Измеряемое давление
Тип выхода
Точность
Электрическое подключение Монтаж на плату через сквозные отверстия
Тип порта
Напряжение питания
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
Calibrated Pressure Sensor Series V1.1/2022.05 XGZP6885A PRESSURE SENSOR FEATURES ■ Wide Ranges: 0kPa～100kPa…700kPa(show in Pressure Range) ■ Optional 5V or 3.3V Power Supply ■ Absolute Pressure Typ(Gage Type is also available) ■ For Non-corrosive Gas or Air. ■ Calibrated Amplified Analog Signal(I2C interface is available) ■ Temp. Compensated: 0℃～+60℃(32℉～+140℉) ■ Direct Application, Low Cost. APPLICATIONS ■ Tank level measurement, Liquid level measurement, White goods(e.g.washer), Heating, Ventilation, Air conditioning, Filter detection, Industrial controls. ■ Medical gas control system, Hospital beds, Massage device, Engine control/manifold absolute pressure (MAP), Green gas( LPG and CNG) control and measurement. ■ Weather station and weather reporting device barometers, Sport and leisure equipment, Vacuum measurement, pneumatic device, Absolute pressure meter. INTRODUCTION XGZP6885A is a perfect silicon pressure sensor offering a ratiometric analog interface for reading pressure over the specified full scale pressure span. The XGZP6885A incorporates a silicon piezoresistive pressure sensor die and an interior Application Specific Integrated Circuit(ASIC) in a SIP package. The XGZP6885A is fully calibrated and temperature compensated for specified span, so XGZP6885A pressure sensor satisfy the perfect accuracry, which is designed for a wide range of application in medical care&health, home appliances, consumer electronic, industry, automotive, loT and other pneumatic devices etc by utilizing a microcontroller or microprocessor with A/D inputs. XGZP6885A pressure sensor is for high volume application at an affordable cost but perfect performance. Customized calibrations(working voltage, output voltage, pressure range etc.) are available. XGZP6885A_DataSheet_EN_V1.1 www.CFSensor.com 1/8 PDF
Документация на серию XGZP6885A

MDM291选型 Keywords:

Дата модификации: 26.05.2022

Размер: 504.8 Кб

8 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
